Description

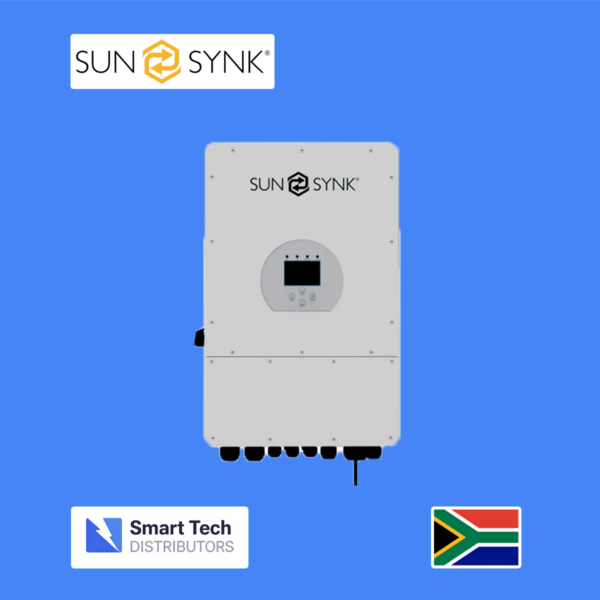

Sunsynk 5 kW Single-Phase Hybrid Inverter (NRS Approved)

The Sunsynk 5 kW Single-Phase Hybrid Inverter is a flexible and efficient energy conversion solution designed for residential and light commercial solar + battery systems. Built to manage energy from solar PV arrays, battery storage, and the grid, this hybrid inverter maximizes solar self-consumption, reduces electricity costs, and offers reliable backup power during outages. Its hybrid architecture supports hybrid, grid-tie, and off-grid operating modes — giving you tailored control over your energy setup.

Featuring dual independent MPPT (Maximum Power Point Tracking), this inverter optimizes solar energy harvest across multiple PV strings, even in partially shaded conditions. The built-in Wi-Fi communication module enables real-time performance monitoring via the Sunsynk cloud platform or compatible mobile apps, providing you with live system data and remote operational control.

This model is fully NRS approved, making it compliant with South African grid interconnection and safety standards — a must for local solar installations. With advanced protections including anti-islanding, over/under-voltage, surge protection, and short-circuit safeguards, the Sunsynk 5 kW Hybrid Inverter is designed for durability and peace of mind. Its IP65-rated enclosure also allows for both indoor and sheltered outdoor installation.

Whether you are adding battery backup to an existing solar setup or installing a new hybrid system, the Sunsynk 5 kW Hybrid Inverter delivers a balanced combination of performance, efficiency, and smart energy management.

Technical Specifications

• Brand: Sunsynk

• Model: 5 kW Single-Phase Hybrid Inverter

• Inverter Type: Hybrid Solar Inverter (Solar + Battery + Grid)

• Rated AC Output Power: 5 000 W (5 kW)

• Max AC Output Power: ~5 500 W (peak)

• Grid Type: Single-Phase (L/N/PE)

• AC Output Voltage: 220 – 240 VAC

• Output Frequency: 50 / 60 Hz

• MPPT Trackers: 2 x MPPT (dual independent)

• Max PV Input Power: ~6 500 W

• Max DC Input Voltage: ~550 VDC

• MPPT Voltage Range: ~125 – 425 VDC

• Number of PV Inputs: 2–4 (model dependent)

• Battery Voltage Range: 40 – 60 V DC (nominal 48 V)

• Battery Compatibility: Lithium-ion (incl. LiFePO₄) and lead-acid

• Max Battery Charge/Discharge Current: ~100 – 150 A

• Efficiency:

  • Max Efficiency: ~97.5 %

  • MPPT Efficiency: ~99 %

• Communication:

  • Built-in Wi-Fi monitoring

  • RS485 / CAN

  • Optional GPRS / LAN connectivity

• Protection Features:

  • Anti-islanding

  • Over/under-voltage

  • Short-circuit protection

  • Over-current protection

  • Surge protection

  • PV reverse polarity detection

• Ingress Protection: IP65 – dust & water resistant

• Operating Temperature: ~-25 °C to +60 °C (derating above ~45 °C)

• Cooling: Intelligent air cooling

• Dimensions: Approx. ~420 × 670 × 233 mm

• Weight: ~30–35 kg (approx.)

• Installation: Wall-mounted

• Warranty: ~5 years standard (vendor dependent)

• Certifications: NRS approved, IEC/EN grid safety standards
