Description

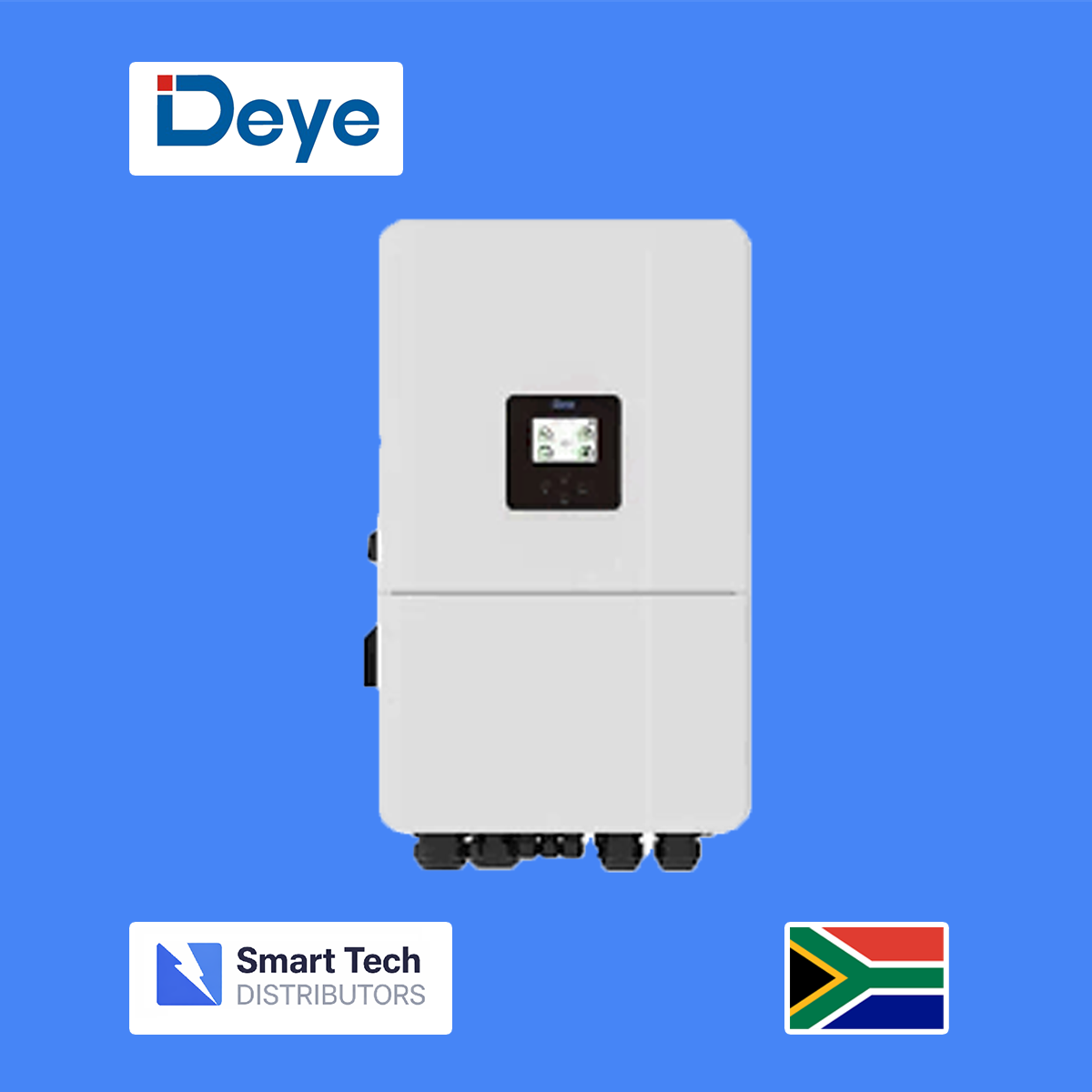

Deye SUN‑30K‑SG01HP3‑EU‑BM3 Three‑Phase Hybrid Inverter

The Deye 30 kW Three‑Phase Hybrid Inverter with Wi‑Fi Dongle is a high‑performance energy conversion and storage solution engineered for large residential, commercial, and industrial solar applications. Combining advanced hybrid functionality with robust three‑phase output and high‑voltage battery compatibility, this inverter delivers reliable power management, intelligent energy control, and seamless backup operation even during grid instability.

Designed to work with high‑voltage lithium‑ion battery systems (160 – 800 V), the Deye 30 kW Hybrid Inverter intelligently balances grid, solar, and battery energy flows to maximize self‑consumption and provide dependable backup when you need it most. With three MPPT trackers, the inverter optimises energy harvest from multiple PV strings, maintaining peak performance under diverse sunlight conditions. Its high‑efficiency design (up to ~97.6 %) ensures more of your solar energy is converted and used, reducing wastage and boosting return on investment.

The unit supports Wi‑Fi monitoring, giving you real‑time system insights, remote parameter adjustment, and performance tracking via a companion app or cloud platform. Its NRS‑approved build meets stringent South African grid and safety standards, making it suitable for local installations requiring compliance without compromise.

Built for flexibility and scalability, this inverter supports parallel operation of up to 10 units, enabling large‑scale hybrid system deployments. It also features intelligent compatibility with diesel generators and AC coupling—perfect for retrofits and upgrades. With robust internal protections against over‑voltage, short circuit, islanding, and temperature extremes, the Deye 30 kW Hybrid Inverter combines safety with performance.

Whether you’re powering a commercial facility, estate, or grid‑interactive solar system with backup, the Deye 30 kW Three‑Phase Hybrid Inverter offers scalable, efficient, and smart energy management tailored for demanding solar environments.

The Deye 30kW hybrid inverter’s model is SUN-30K-SG01LP3-EU.

🔧 Technical Specifications

• Brand: Deye

• Model: SUN‑30K‑SG01HP3‑EU‑BM3

• Type: Hybrid Three‑Phase Solar Inverter

• Rated AC Output Power: 30 kW

• Max AC Output Power: ~33 kW

• Grid Type: Three‑phase (3L/N/PE)

• Battery Voltage Range: 160 – 800 V HV lithium‑ion compatible

• Battery Inputs: 2 (can support multiple high‑voltage batteries)

• Max Charging/Discharging Current: ~100 A (50 + 50 A)

• Max DC Input Power: ~39 000 W

• Max DC Input Voltage: 1000 V

• MPPT Voltage Range: ~150 – 850 V

• Number of MPPT Trackers: 3

• MPPT Efficiency: >99 %

• Max Efficiency: ~97.6 %

• Communication: Wi‑Fi dongle (included), RS485, CAN | Optional GPRS/4G/Bluetooth/LAN

• Protection: Anti‑islanding, surge protection, over/under voltage, short circuit, thermal & residual current monitoring

• Parallel Support: Up to 10 units for scalable systems

• Generator Integration: Supported

• Ingress Protection: IP65 (outdoor capable)

• Operating Temp Range: –40 °C to 60 °C (with derating >45 °C)

• Dimensions/Weight: Approx. 527 × 894 × 294 mm / ~80 kg

• Warranty: Standard 5 years (extendable)





Deye 30kW Hybrid Inverter – Product Specification
