Description

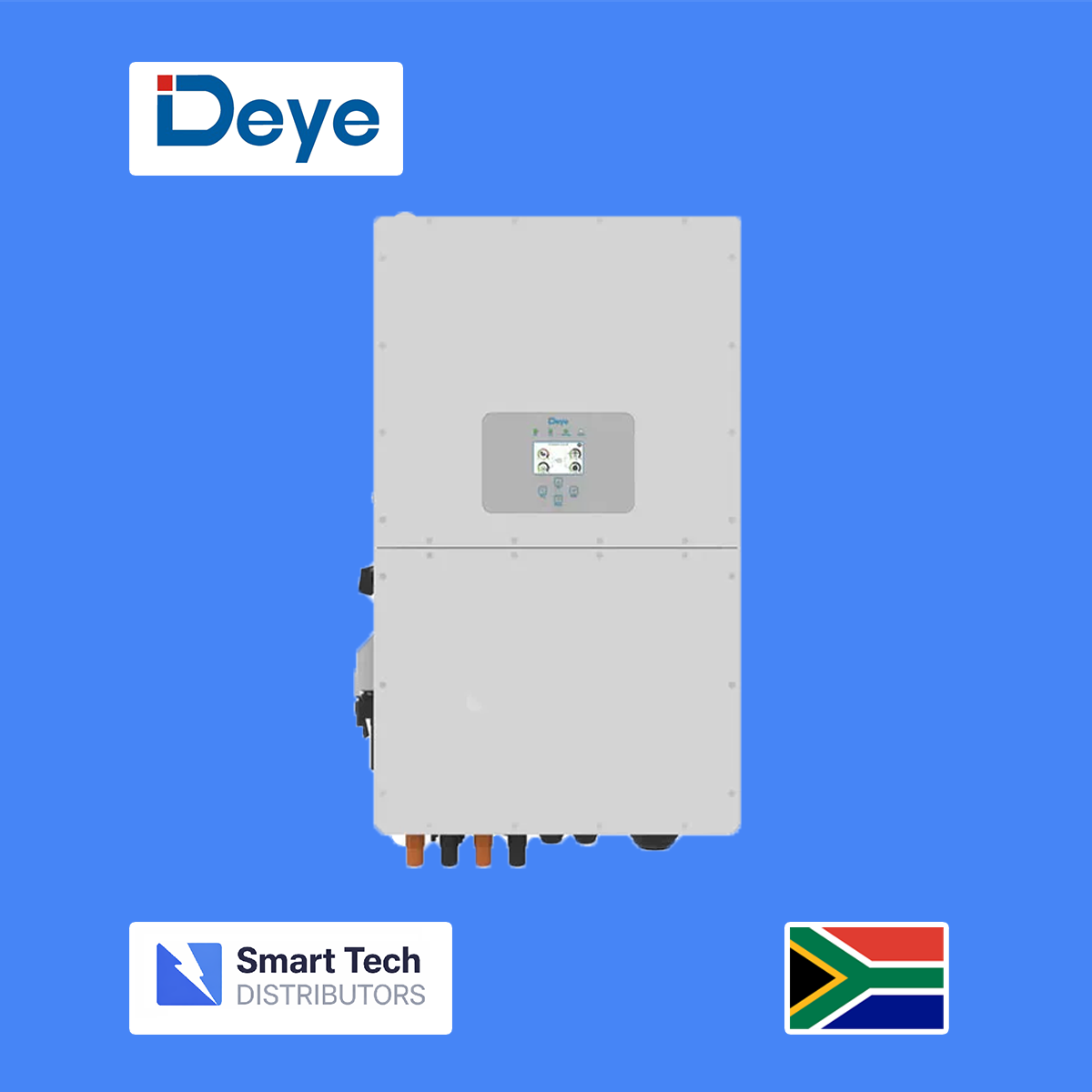

Deye 80 kW High‑Voltage Three‑Phase Hybrid Inverter with Wi‑Fi Dongle

The Deye 80 kW High‑Voltage Three‑Phase Hybrid Inverter with Wi‑Fi Dongle is a commercial‑grade solar inverter built for demanding large‑scale energy systems. Engineered to seamlessly integrate solar PV generation, high‑voltage battery storage, and grid interaction, this hybrid inverter delivers reliable, efficient, and intelligent energy management for commercial, industrial, and high‑demand residential installations.

With support for high‑voltage lithium‑ion battery systems (160–1000 V) and up to 10 units in parallel, this inverter provides scalable performance that grows with your energy needs. It features 6 MPPT trackers with 12 PV string inputs, ensuring optimal energy harvest from solar arrays even under varied light conditions.

The built‑in Wi‑Fi dongle allows real‑time remote monitoring, system tuning, and performance tracking via app or web platforms, giving complete visibility and control over your solar energy setup. This model is NRS097 certified for South African grid compliance, delivering confidence in safety and regulatory adherence for local installations.

Along with its robust IP65‑rated enclosure for outdoor use, intelligent air cooling, and comprehensive protection features (including over‑voltage, short‑circuit and islanding safeguards), the Deye 80 kW hybrid inverter is designed for durability, safety, and long‑term performance in harsh environments. Whether powering a large commercial facility, estate, or industrial site, this inverter delivers efficient energy conversion, smart battery interaction, and dependable hybrid functionality.

The Deye 80kW hybrid inverter’s SKU is SUN-80K-SG02HP3-EU-EM6.

🔧 Technical Specification

• Brand: Deye

• Model: SUN‑80K‑SG02HP3‑EU‑EM6

• Type: High‑Voltage Hybrid Solar Inverter (Three‑Phase)

• Rated AC Output Power: 80 kW

• Max PV Input Power: 160,000 W

• Number of MPPTs: 6 (12 PV string inputs)

• Max PV Input Voltage: 1000 V

• Battery Voltage Range: 160–1000 V (High‑Voltage Li‑ion)

• Max Charge/Discharge Current: 160 A

• Grid Voltage / Frequency: 230/400 V (3‑phase), 50 Hz / 60 Hz

• Max AC Output Current: ~133.4 A

• High Efficiency: Max ~97.6 %, Euro ~97.0 %, MPPT >99 %

• Communication: Wi‑Fi dongle (included), RS485, RS232, CAN, optional GPRS/4G/LAN

• Parallel Support: Up to 10 units

• Protection Features: DC reverse, overcurrent, arc fault, anti‑islanding, surge protection

• Cooling: Intelligent air cooling

• Ingress Protection: IP65 (outdoor rated)

• Operating Temperature: –40 °C to +60 °C (derating above 45 °C)

• Dimensions (W×H×D): ~606 × 927 × 314 mm

• Weight: ~97.5 kg

• Certifications: IEC, EN, CE, VDE, G99, NRS097 certified for South African grids

• Warranty: 5 years standard (extendable to 10 years)



Deye 80 kW Hybrid Inverter – Data Sheet
