Description

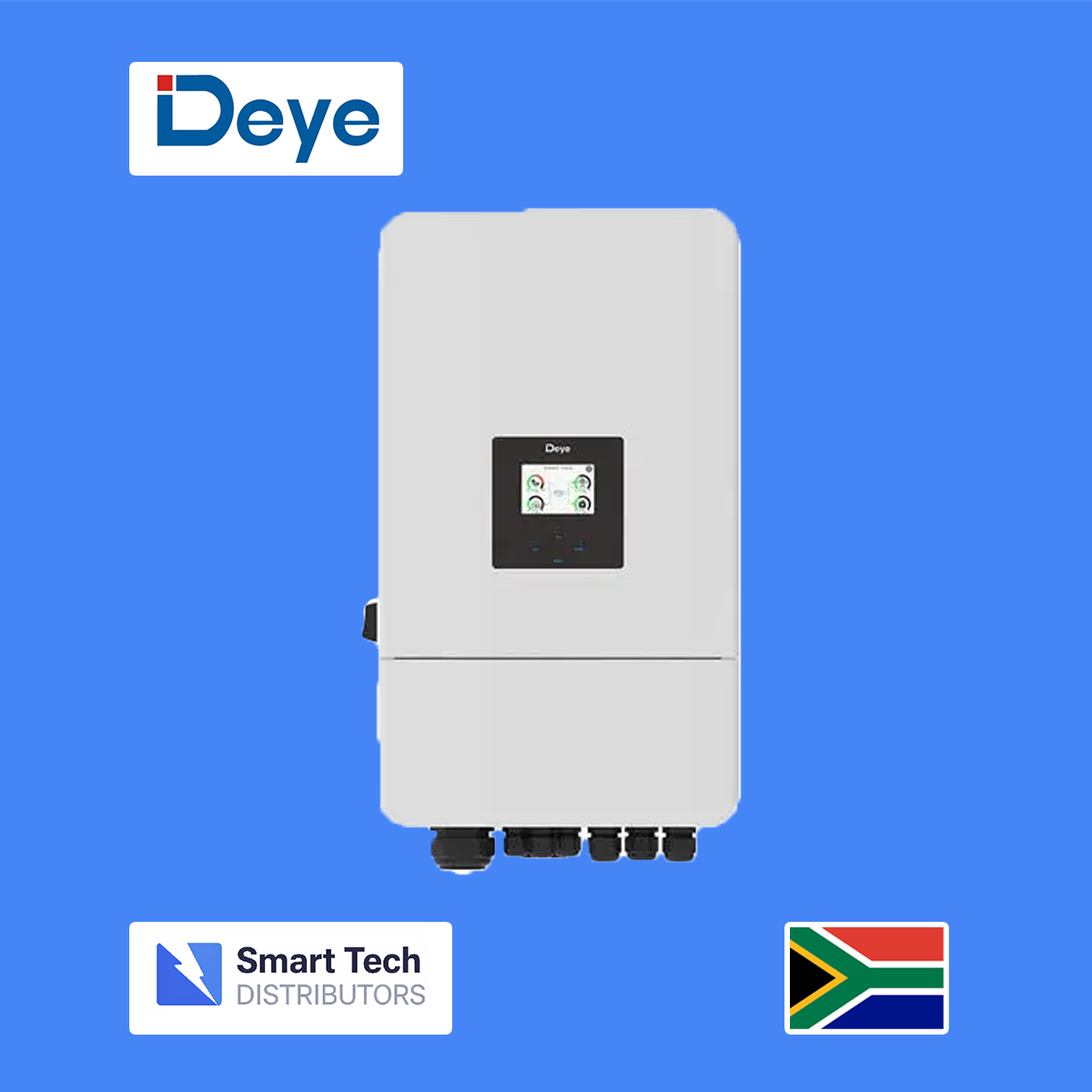

Deye 16 kW Hybrid Inverter Single-Phase With Wi-Fi Dongle (NRS Approved)

The Deye 16 kW Hybrid Inverter Single-Phase With Wi-Fi Dongle is a powerful, efficient, and intelligent solar inverter designed for high-performance residential, commercial, and light industrial energy systems. Combining advanced hybrid energy management with single-phase compatibility and remote monitoring, this inverter intelligently balances solar power generation, battery storage, and grid interaction to maximise self-consumption and ensure reliable backup support even in unstable grid conditions.

This inverter supports a wide high-voltage battery range (typically 160 – 800 V) and is engineered to work seamlessly with high-voltage lithium-ion battery systems, delivering robust hybrid performance with excellent conversion efficiency. Its multi-MPPT (Maximum Power Point Tracking) array optimises energy harvest from up to three independent PV strings, ensuring peak power output throughout varied sunlight conditions. With high efficiency and smart load management, the Deye 16 kW Hybrid Inverter helps reduce electricity costs and improve overall system ROI.

The included Wi-Fi dongle enables real-time remote monitoring and control through a user-friendly app or cloud dashboard, bringing system performance, alerts, and analytics directly to your smartphone or desktop. This feature makes system monitoring intuitive and allows homeowners and installers to track performance trends with ease. Importantly, this inverter is NRS-approved, meeting South African grid compliance standards to ensure safe and reliable operation for grid-interactive installations.

The Deye 16 kW Hybrid Inverter also incorporates a comprehensive suite of built-in protections — including anti-islanding, over-voltage, under-voltage, over-current, short-circuit and thermal safeguards — designed to protect your system and extend its service life. The inverter’s scalable configuration supports parallel operation of multiple units so you can increase capacity as your energy needs grow.

With a rugged IP65-rated enclosure, intelligent cooling design, and robust surge protection, the Deye 16 kW Hybrid Inverter is engineered for durability and long-term performance. Whether you are upgrading an existing solar setup or building a new hybrid system from scratch, this inverter delivers smart, dependable energy management tailored to South African environments.

The Deye 16kW hybrid inverter model number is SUN-16K-SG01LP1-EU.

🔧 Technical Specifications (Bullet Format)

• Brand: Deye

• Model: 16 kW Single-Phase Hybrid Inverter

• Type: Hybrid Solar Inverter (Single-Phase)

• Rated AC Output Power: 16 000 W (16 kW)

• Max AC Output Power: ~18 000 W

• Grid Type: Single-Phase (L/N/PE)

• Rated AC Output Current: ~70 A

• Battery Voltage Range: ~160 V – 800 V (High-Voltage Li-ion compatible)

• Number of Battery Inputs: 2

• Max Charging/Discharging Current: ~50 A + 50 A

• Max DC Input Power: ~22 000 W

• Max DC Input Voltage: ~1000 V

• MPPT Voltage Range: ~150 V – 850 V

• Number of MPPT Trackers: 3

• Efficiency: Max ~97.5 % / MPPT Efficiency ~99 %

• Communication: Wi-Fi dongle (included), RS485, CAN

• Parallel Support: Yes (multiple units for scalable systems)

• Generator Integration: Supported

• Protection:

  • Anti-islanding

  • Surge protection

  • Over/under-voltage protection

  • Short-circuit protection

  • Thermal protection

  • Residual current monitoring

• Ingress Protection: IP65 (dust & water resistance)

• Operating Temperature Range: ~-25 °C to +60 °C (derating above ~45 °C)

• Cooling: Intelligent air cooling

• Dimensions & Weight: Approx. ~450 × 690 × 260 mm • ~60 kg

• Warranty: 5 years standard (extendable)
