Description

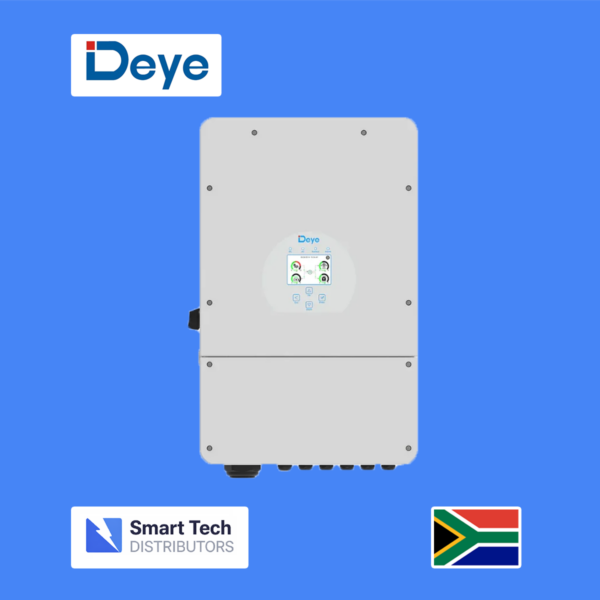

Deye 12 kW Hybrid Inverter Three-Phase With Wi-Fi Dongle (NRS Approved)

The Deye 12 kW Hybrid Inverter Three-Phase With Wi-Fi Dongle is a smart and efficient solar inverter designed for medium-sized commercial and residential energy systems. Engineered to blend solar energy production, battery storage, and grid interaction, this hybrid inverter provides dynamic energy management that maximises solar self-consumption, delivers dependable backup power during outages, and ensures stable performance under fluctuating grid conditions.

Built for compatibility with high-voltage lithium-ion battery systems, the Deye 12 kW inverter supports a wide battery voltage range (typically 160 V–800 V) and offers versatile energy management across simultaneous solar & battery inputs. Its advanced multi-MPPT (Maximum Power Point Tracking) technology continuously optimises energy capture from your PV array, even under varied sunlight conditions, helping increase system efficiency and reduce overall electricity costs.

The integrated Wi-Fi dongle allows you to monitor system performance in real time via a mobile app or web dashboard — tracking solar generation, battery status, and energy flow with ease. With remote monitoring and alert capabilities, you stay informed and in control of your system’s performance from anywhere. This model is also NRS-approved, meaning it meets South African grid compliance and safety standards for hybrid installations.

Safety and reliability are core priorities in the Deye 12 kW Hybrid Inverter. Built-in protections such as anti-islanding, over-voltage, surge protection, thermal safeguards, and short-circuit prevention help ensure stable and secure operation. The inverter also supports parallel operation with multiple units for scalable system expansion, making it suitable for larger installations or future growth.

Featuring an IP65 weather-resistant enclosure and an intelligent cooling design, the Deye 12 kW Hybrid Inverter is built to withstand demanding environments and deliver long-term dependable solar performance. Whether you are upgrading an existing energy system or building a new solar-plus-storage solution, this inverter offers intelligent energy conversion, reliable monitoring, and robust hybrid functionality tailored to South African conditions.

The Deye 12kW hybrid inverter’s SKU is SUN-12K-SG04LP1-EU.

Technical Specifications

• Brand: Deye

• Model: 12 kW Three-Phase Hybrid Inverter

• Type: Hybrid Solar Inverter (Three-Phase)

• Rated AC Output Power: 12 000 W (12 kW)

• Max AC Output Power: ~13 200 W

• Grid Type: Three-Phase (3L/N/PE)

• Rated AC Output Current: ~17.3 A / phase

• Battery Voltage Range: ~160 V – 800 V (High-Voltage Li-ion compatible)

• Battery Inputs: 2

• Max Charging/Discharging Current: ~50 A + 50 A

• Max DC Input Power: ~18 000 W

• Max DC Input Voltage: ~1000 V

• MPPT Voltage Range: ~150 V – 850 V

• Number of MPPT Trackers: 3

• Efficiency: Max ~97.5 % / MPPT Efficiency ~99 %

• Communication: Wi-Fi dongle (included), RS485, CAN

• Parallel Support: Supported (multiple units)

• Generator Integration: Supported

• Protection Features:

  • Anti-islanding

  • Surge protection

  • Over/under-voltage protection

  • Short-circuit protection

  • Thermal protection

  • Residual current monitoring

• Ingress Protection: IP65 (dust & water resistant)

• Operating Temperature Range: ~-25 °C to +60 °C (derating above ~45 °C)

• Cooling: Intelligent air cooling

• Dimensions & Weight: ~450 × 690 × 260 mm • ~60 kg (approx.)

• Warranty: 5 years standard (extendable)
