Product Description

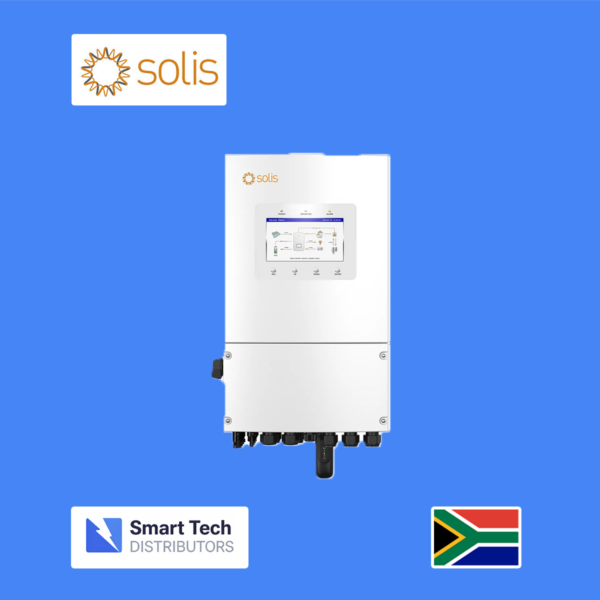

The Solis 5kW Single Phase Hybrid Inverter is engineered to deliver intelligent energy management, high efficiency, and dependable backup power for modern homes. By integrating grid-tied solar operation with battery storage and backup functionality, this inverter allows homeowners to reduce reliance on the grid and optimize solar energy usage.

With ultra-fast transfer times of less than 20 milliseconds, essential household loads remain powered without interruption during power failures. The inverter supports both lithium-ion and lead-acid batteries, offering flexibility for different battery brands and system configurations.

Advanced monitoring via the Solis Cloud platform or mobile app enables real-time performance tracking, energy usage insights, and remote system management. Its robust protection features, outdoor-rated design, and compliance with local grid standards make the Solis 5kW hybrid inverter an ideal choice for areas affected by load shedding and rising electricity costs.

---

Technical Specifications

• Rated output power: 5,000 W (single phase)

• Backup switching time: Less than 20 ms

• Operating frequency: 50 / 60 Hz

• AC grid voltage: 220 – 240 V

• Maximum PV input power: Up to approximately 8,000 W

• Maximum DC input voltage: Approximately 600 V

• MPPT voltage range: Approximately 90 – 520 V

• Number of MPPTs: 2

• Maximum MPPT current: Approximately 15 A per MPPT

• Supported battery types: Lithium-ion and lead-acid

• Battery voltage range: Approximately 40 – 60 V

• Maximum battery charge / discharge current: Approximately 100 A (model dependent)

• Backup output power: 5 kW (critical loads)

• Display: LCD screen

• Monitoring: WiFi / LAN / cloud monitoring support

• Protection rating: IP65 (model dependent)

• Cooling: Intelligent fan or quiet fanless design (model dependent)

• Protection features: Over-voltage, under-voltage, over-current, short-circuit, and temperature protection

• Grid compliance: Local standards such as NRS 097-2-1 (region dependent)

• Warranty: Typically 5 years (extendable depending on distributor)

---

Frequently Asked Questions

What is the Solis 5kW hybrid inverter used for?
It converts solar DC power into AC electricity for household use while managing battery storage and grid interaction to optimize energy usage and provide backup power.

Does the inverter work during a power outage?
Yes. It supplies backup power to essential loads with an automatic changeover time of less than 20 milliseconds when the grid fails.

Which batteries are compatible with this inverter?
The inverter supports both lithium-ion and lead-acid batteries, allowing flexible battery selection.

Can the system be monitored remotely?
Yes. Remote monitoring is available through the Solis Cloud platform and mobile applications, providing real-time data and alerts.

Is professional installation required?
Yes. Installation must be carried out by a qualified installer and comply with local electrical and grid regulations.
