Description

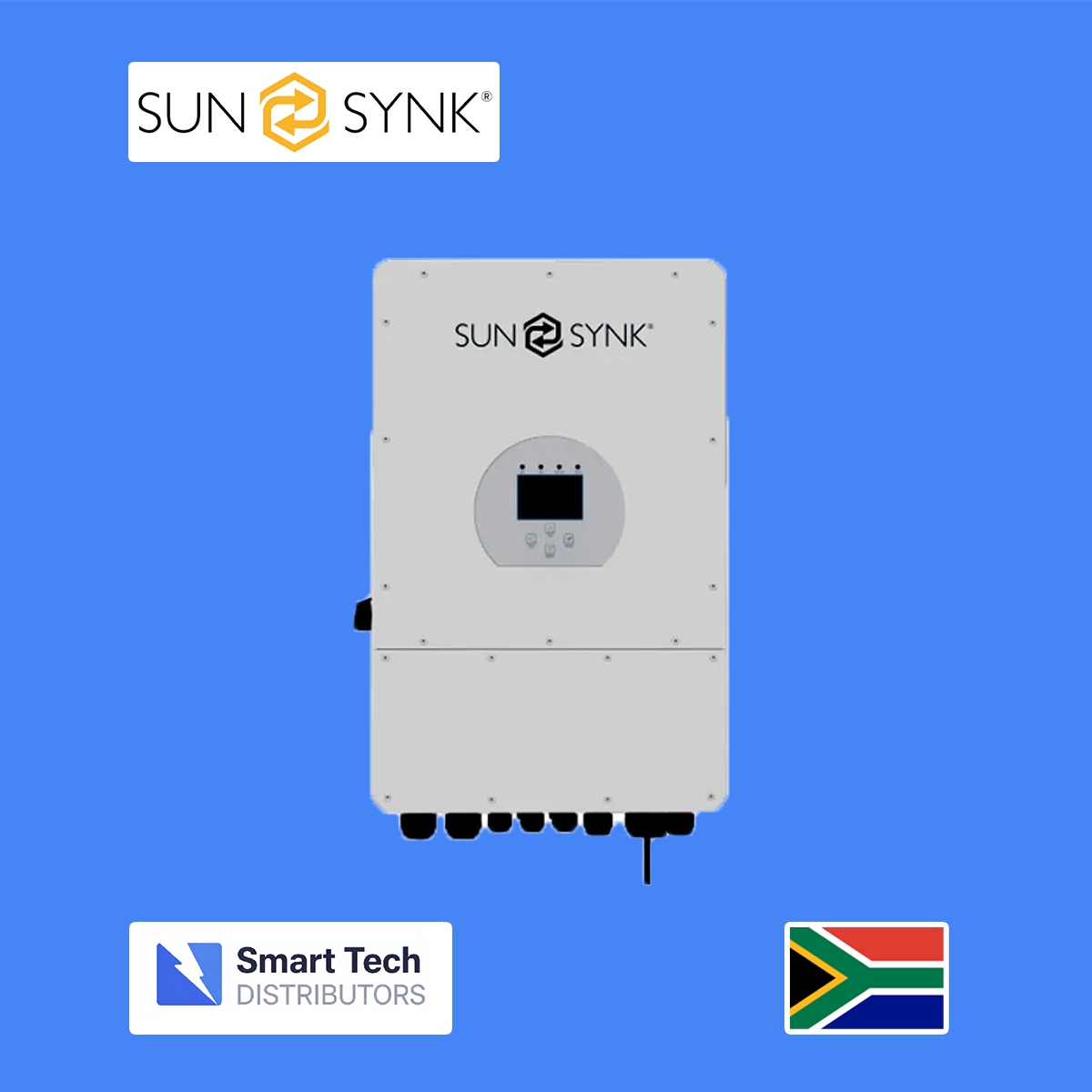

The Sunsynk 12 kW Three-Phase Hybrid Inverter is a powerful and intelligent solar inverter engineered to optimise the flow of energy between solar PV arrays, battery storage, the grid, and backup loads. Designed for medium to large three-phase systems, this hybrid inverter seamlessly combines solar generation, energy storage, and grid interaction — improving self-consumption, reducing electricity costs, and providing reliable backup power during outages.
Featuring dual MPPT tracking, this inverter maximises solar energy harvest across diverse panel orientations and conditions. Its built-in Wi-Fi dongle and smart monitoring enable real-time performance tracking via mobile app or browser, making system oversight and optimisation intuitive. The inverter also supports generator integration and multiple operating modes including grid-tie, hybrid, off-grid, and battery-only configurations — offering exceptional flexibility for varied system designs and energy goals.
The Sunsynk 12 kW Hybrid Inverter is City of Cape Town NRS approved for local grid safety compliance, and it’s built with robust protections like anti-islanding, over-voltage, short-circuit safeguards, and IP65 weather resistance for outdoor or indoor installations. Its parallel-ready architecture allows up to 16 units to operate together for future system expansion — letting you scale up as your energy needs increase.
Whether powering a commercial facility, large home, or multi-load environment, this inverter delivers efficient, reliable, and flexible hybrid solar energy management tailored to South African grid conditions.
Technical Specifications
-
Brand: Sunsynk
-
Model: 12 kW 3-Phase Hybrid Inverter
-
Inverter Type: Hybrid (Solar + Battery + Grid)
-
Rated AC Output: 12 000 W (12 kW)
-
Max AC Output Power: ~13 200 W (varies by site)
-
AC Output: Three-Phase 230 V / 400 V pure sine wave
-
AC Output Frequency: 50/60 Hz
-
Grid Type: Three-Phase
-
MPPT Trackers: 2 x MPPT (dual MPPT)
-
Max PV Input Power: ~15 600 W
-
MPPT Voltage Range: ~200–650 V DC
-
Max DC Input Voltage: ~550 V DC
-
Battery Voltage Range: 40–60 V (48 V nominal)
-
Max Charge/Discharge Current: ~240 A
-
Max Efficiency: ~97.6 %
-
Protection Rating: IP65 (dust & water resistant)
-
Communication: Wi-Fi dongle included, RS485/CAN support
-
Parallel Support: Up to ~16 units
-
Operating Temperature: ~-25 °C to +60 °C (derating above ~45 °C)
-
Cooling: Fan or natural depending on model variant
-
Noise Level: <30 dB typical
-
Installation: Wall-mounted
-
Weight: ~37–45 kg
-
Warranty: ~5 years standard
-
Certifications: NRS approved (City of Cape Town), IEC safety and grid standards
Sunsynk 12 kW Three-Phase Hybrid Inverter – Data Sheet
Frequently Asked Questions
What is the Sunsynk 12kW 3-Phase Hybrid Inverter used for?
It manages and optimises energy between solar, battery, and grid for three-phase systems.
Is it compatible with batteries?
Yes — it supports 48 V lithium-ion or lead-acid batteries with high charge/discharge current.
Does it support remote monitoring?
Yes — Wi-Fi monitoring is included for real-time performance tracking.
Can multiple inverters be used together?
Yes — up to ~16 units can be paralleled for larger systems.
Is professional installation recommended?
Yes — professional installation is recommended for safety and compliance.
