Description

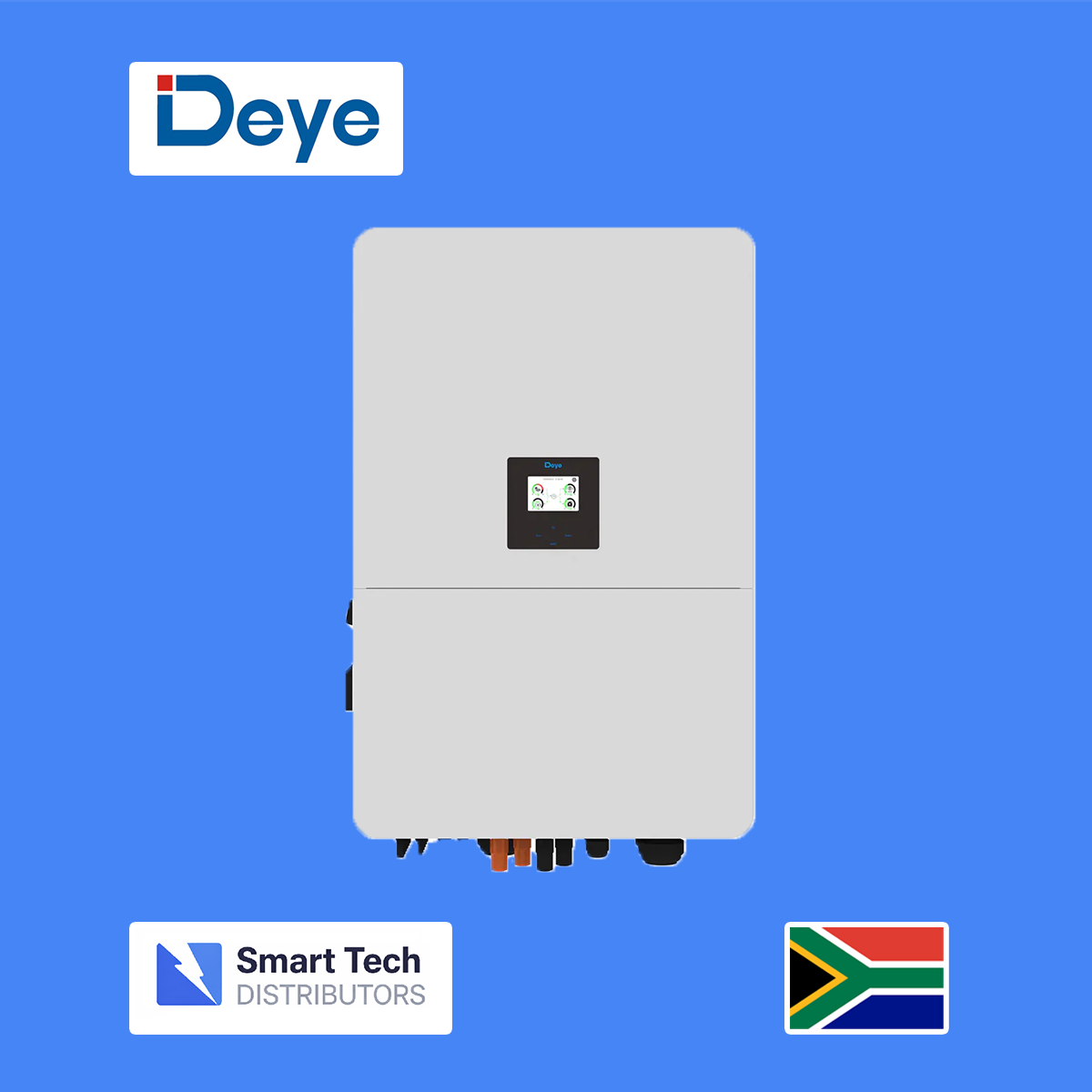

Deye 50 kW High‑Voltage Three‑Phase Hybrid Inverter with Wi‑Fi Dongle

The Deye 50 kW High‑Voltage Three‑Phase Hybrid Inverter with Wi‑Fi Dongle is a powerful and versatile solar inverter engineered for large residential, commercial, and industrial energy systems. Combining high‑efficiency power conversion with smart hybrid energy management, this inverter seamlessly integrates solar, battery, and grid resources to maximise self‑consumption, provide reliable backup power and ensure high‑performance energy delivery even under challenging grid conditions.

Designed to support high‑voltage battery systems with a wide voltage range (approx. 160 – 800 V), the Deye 50 kW inverter features multiple MPPTs and advanced power conversion algorithms to harvest maximum energy from solar arrays under varying light conditions. With four independent MPPT trackers and support for high DC input voltages up to 1000 V, it ensures efficient solar power utilisation and optimal system performance.

The built‑in Wi‑Fi dongle enables remote monitoring and control, giving you real‑time system performance data and alerts via a smartphone or web platform. This makes system maintenance and optimisation simple, transparent, and user‑friendly. The inverter is also NRS‑approved, meeting South African regulatory and safety standards required for grid‑interactive installations.

Featuring robust electrical protections — including anti‑islanding, surge protection, residual current monitoring, and thermal safeguards — the inverter delivers reliable and safe operation in both on‑grid and hybrid scenarios. It supports parallel connection of up to 10 units, offering scalability for larger power systems or future expansion needs.

Built with IP65 ingress protection, smart cooling, and compliance with stringent international and local grid standards, the Deye 50 kW Hybrid Inverter is designed to withstand tough environments while maintaining performance. Whether you’re powering a commercial facility, estate, or large home, this inverter offers an intelligent, efficient, and future‑ready hybrid solar power solution.

The Deye 50kW hybrid inverter’s SKU is SUN-50K-SG01HP3-EU-BM4.

🔧 Technical Specifications

• Brand: Deye

• Model: 50 kW HV Three‑Phase Hybrid Inverter

• Type: Hybrid Solar Inverter (Three‑Phase)

• Rated AC Output Power: 50 000 W (50 kW)

• Maximum AC Output: ~55 000 W

• Grid Type: Three‑Phase (3L/N/PE 220/380 V & 230/400 V)

• Rated AC Output Current: ~75.8 A / 72.5 A

• Maximum AC Current: ~83.3 A

• Battery Voltage Range: ~160 V – 800 V (High‑Voltage)

• Max Charging/Discharging Current: ~100 A (50 + 50 A)

• Number of Battery Inputs: 2

• PV DC Input Power: Up to ~65 000 W

• Max DC Input Voltage: ~1000 V

• MPPT Voltage Range: ~150 V – 850 V

• Number of MPPT Trackers: 4 independent MPPTs

• Efficiency: Up to ~97.6 % (MPPT efficiency ~99.9 %)

• Communication: Wi‑Fi dongle, RS485, CAN (remote monitoring)

• Parallel Support: Up to 10 units for large systems

• Generator Integration: Supported

• Protection: Anti‑islanding, surge protection, over/under‑voltage, short circuit, thermal protection, residual current monitoring

• Operating Temperature Range: ~‑40 °C to +60 °C (derating >45 °C)

• Ingress Protection: IP65 (dust and water resistance)

• Dimensions: ~527 × 894 × 294 mm

• Weight: ~80 kg

• Warranty: Standard 5 years (extendable)



Deye 50Kwh Hybrid Inverter – Product Specification
