Description

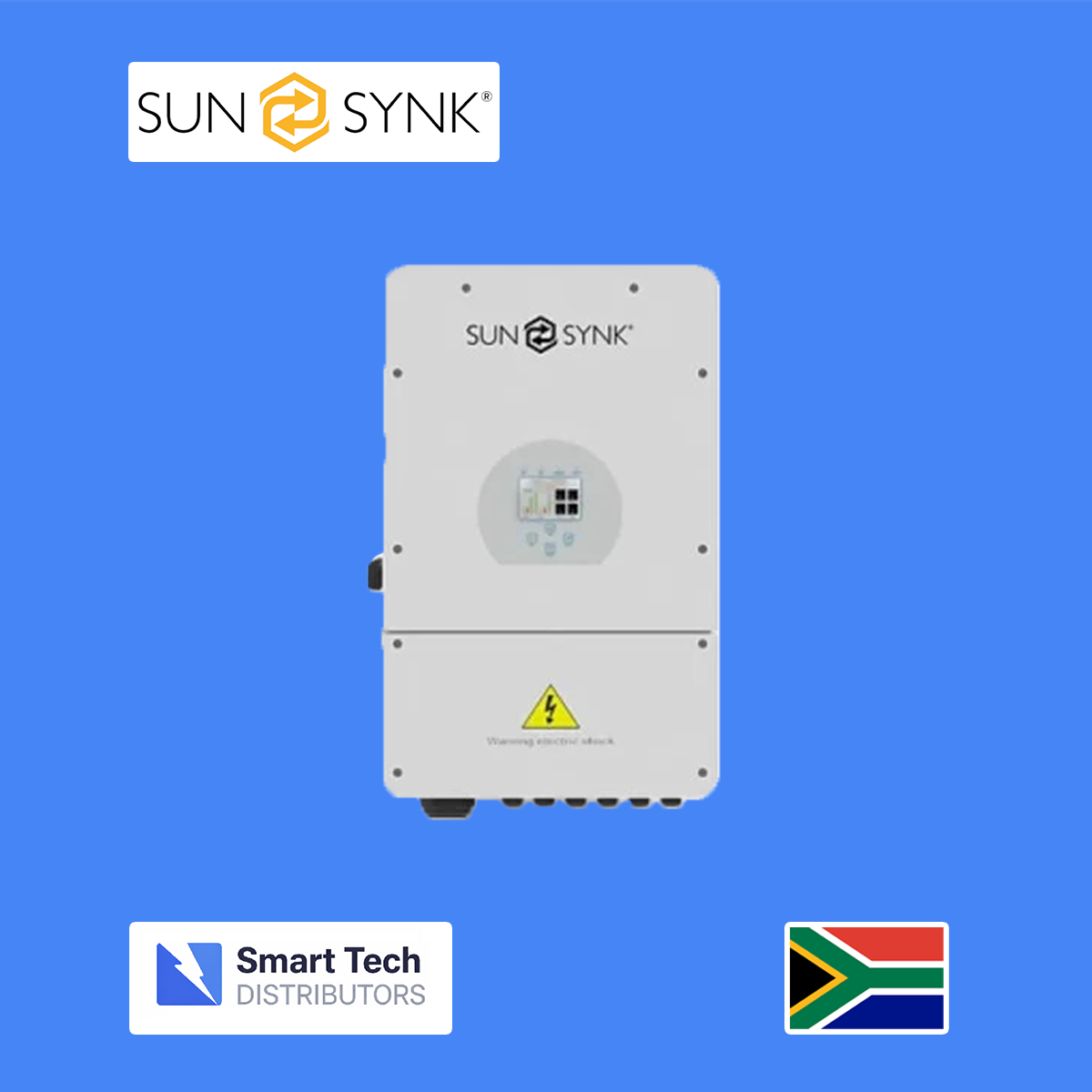

The Sunsynk 50 kW Three‑Phase Hybrid Inverter is a commercial‑grade, high‑capacity solar inverter engineered for large residential, commercial, and industrial solar + battery systems. This intelligent hybrid inverter manages energy flows between solar PV arrays, battery storage, and the electrical grid, helping you optimise self‑consumption, reduce utility costs, and provide reliable backup power. Its robust design supports high DC input and multiple MPPT trackers for efficient energy harvesting even in complex PV configurations.

With support for high‑voltage battery integration (typically ~160 – 1000 V), the Sunsynk 50 kW inverter enables seamless power conversion and flexibility across hybrid, grid‑tie, and off‑grid scenarios. Its Wi‑Fi-enabled smart monitoring allows real‑time performance tracking, data logging, and remote control through cloud platforms, delivering key system insights at your fingertips.

Built to withstand demanding environments, this inverter features a rugged IP65‑rated enclosure and advanced protection functions like surge protection, anti‑islanding, over/under‑voltage, and short‑circuit safeguards. Whether you’re powering large facilities or expansive homes, the Sunsynk 50 kW Hybrid Inverter delivers the performance, efficiency, and reliability needed for modern solar energy systems.

 Technical Specifications

• Brand: Sunsynk

• Model: 50 kW Three‑Phase Hybrid Inverter

• Type: Hybrid Solar Inverter (Solar + Battery + Grid)

• Rated AC Output Power: 50 000 W

• Max AC Power: ~55 000 W (5 min)

• AC Output: 3‑phase (230/400 V) pure sine wave

• Rated AC Output Current: ~75.8 A / phase

• Max AC Output Current: ~83.3 A

• Grid Type: Three‑Phase

• Max PV Input Power: ~65 000 W

• Max DC Input Voltage: ~1000 V

• MPPT Voltage Range: ~150 – 850 V

• Number of MPPT Trackers: 4

• Max DC Current: ~144 A

• Battery Voltage Range: ~160 – 1000 V high‑voltage battery support

• Max Charging/Discharging Current: High‑voltage system dependent

• Communication: Wi‑Fi monitoring, RS485, CAN

• Efficiency: Up to ~97.6 % (Euro ~99.9 %)

• Protection Features:

  • Anti‑islanding

  • Over/under‑voltage

  • Overload protection

  • Short‑circuit protection

  • Surge protection (DC & AC Type II)

• Ingress Protection: IP65 (dust & water resistant)

• Operating Temperature: –40 °C to +60 °C (derating above ~45 °C)

• Cooling: Intelligent cooling

• Dimensions: ~527 × 894 × 294 mm

• Weight: ~75 – 80 kg

• Warranty: ~5 years standard (often extendable)

• Certifications: NRS 097‑2‑1 / IEC grid compliance standards
