Description

Product Description

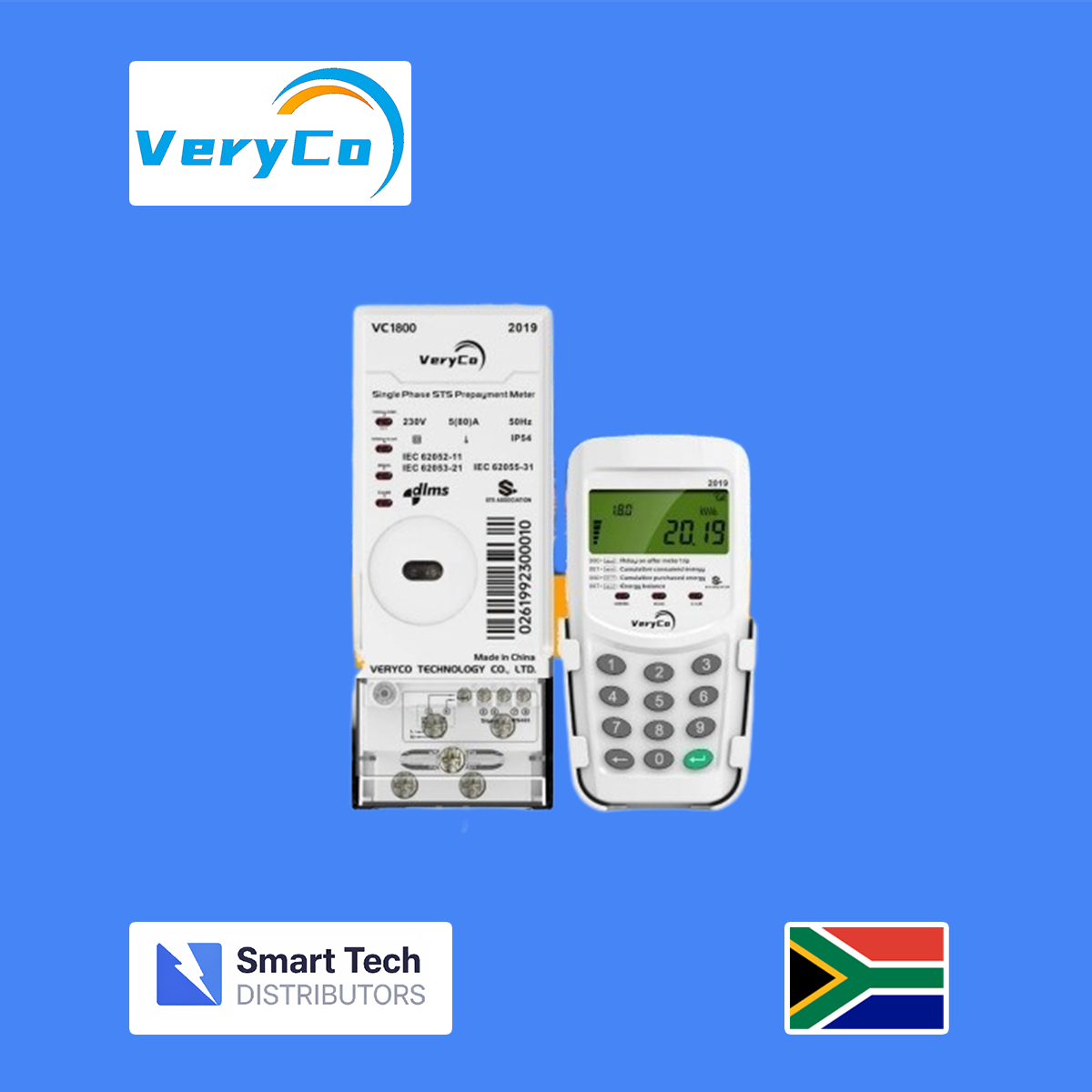

The VeryCo VC1800 prepaid split meter with handheld device is an advanced energy metering solution designed for residential, commercial, and light industrial applications requiring higher current capacity. The system consists of a DIN rail mounted metering unit installed داخل the distribution board and a portable handheld keypad device used for user interaction.

Using STS compliant prepaid technology, the VC1800 allows users to load electricity credits via secure 20 digit tokens. The split configuration improves safety and reduces tampering risks by separating the metering hardware from the user interface.

The included handheld device enables convenient token input, real time credit monitoring, and consumption tracking without needing a fixed keypad installation. This makes it particularly suitable for multi unit properties, rental environments, and flexible installations.

With enhanced communication features such as RS485 and optional integration into remote monitoring systems, the VC1800 supports advanced energy management and billing control. Its robust design and higher current rating make it suitable for more demanding electrical loads compared to standard models.

Technical Specifications

• Brand: VeryCo
• Model: VC1800
• Meter Type: Prepaid split electricity meter with handheld device
• Phase Type: Single phase
• Mounting: DIN rail mounted meter unit
• User Interface: Portable handheld keypad device
• Payment System: STS compliant prepaid token system
• Token Format: 20 digit encrypted tokens
• Operation Modes:
  • Prepaid mode
  • Postpaid mode selectable
• Rated Voltage: 230 V AC
• Frequency: 50 Hz
• Current Rating: Typically up to 80 A or 100 A depending on configuration
• Energy Measurement: Active energy kWh measurement
• Accuracy Class: Class 1 or better
• Communication Interfaces:
  • RS485 communication
  • Optical communication port
  • Optional Ethernet or smart integration via converter
• Remote Monitoring: Supported with communication integration
• Split System Design:
  • Meter installed in DB board
  • Handheld device for user interaction
• Handheld Device Features:
  • Credit balance display
  • Token entry keypad
  • Consumption information
  • Audible and visual alerts
• Tamper Protection:
  • Terminal cover tamper detection
  • Magnetic interference protection
  • Reverse energy detection
  • Communication tamper alerts
• User Functions:
  • Emergency credit feature
  • Low balance warning alerts
  • Usage tracking
• Installation Type: Indoor DIN rail installation in distribution board
• Operating Temperature Range: Approximately minus 10 degrees C to 55 degrees C
• Protection Rating: IP20 indoor rated
• Standards Compliance: STS certified prepaid metering IEC compliant
• Application:
  • Residential sub metering
  • Rental units and apartments
  • Commercial and small industrial installations
• Key Features:
  • Higher current capacity than standard models
  • Portable handheld interface
  • Secure prepaid billing system
  • Anti tamper protection
  • Smart communication ready
