Description

Product Description

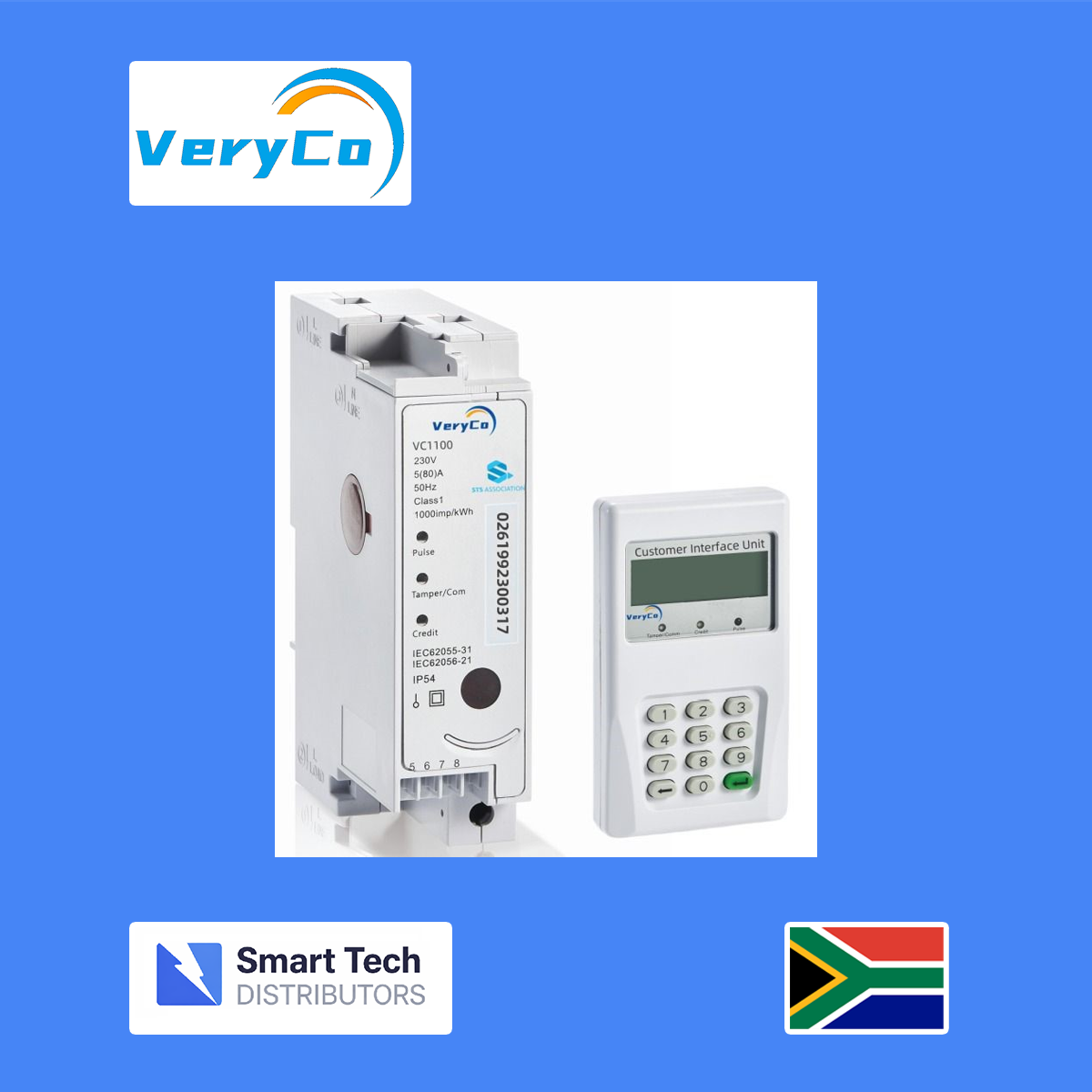

The VeryCo VC1100 prepaid split meter with handheld device is a smart metering solution that combines a compact DIN rail energy meter with a portable user interface for convenient prepaid electricity management. The meter is installed inside the distribution board, while the handheld unit allows users to input tokens, monitor credit, and check energy usage remotely within the premises.

This system uses STS compliant token based technology, enabling users to load prepaid electricity via secure 20 digit codes. The split design improves safety and tamper resistance by separating the metering unit from the user interface, reducing the risk of unauthorized access.

The included handheld device enhances usability by allowing easy interaction without requiring a fixed wall mounted keypad. It provides real time feedback on remaining credit, consumption, and alerts, making it ideal for landlords, tenants, and property managers.

With built in communication capabilities such as RS485, the VC1100 can be integrated into larger energy management or monitoring systems. Its compact design ensures easy installation in standard DB boards, while comprehensive protection features ensure reliable and secure operation.

Technical Specifications

• Brand: VeryCo
• Model: VC1100
• Meter Type: Prepaid split electricity meter with handheld user interface
• Phase Type: Single phase
• Mounting: DIN rail mounted meter unit
• User Interface: Portable handheld keypad device
• Payment System: STS compliant prepaid token system
• Token Format: 20 digit encrypted tokens
• Operation Modes:
  • Prepaid mode
  • Postpaid mode selectable
• Rated Voltage: 230 V AC
• Frequency: 50 Hz
• Current Rating: Typically up to 60 A or 80 A depending on configuration
• Energy Measurement: Active energy kWh measurement
• Accuracy Class: Class 1 or better
• Communication Interfaces:
  • RS485 communication
  • Optical communication port
  • Optional Ethernet integration via converter
• Remote Monitoring: Supported with communication integration
• Split System Design:
  • Meter installed in DB board
  • Handheld device used for user interaction
• Display Features Handheld Device:
  • Remaining credit display
  • Energy consumption data
  • Token entry interface
  • Audible and visual alerts
• Tamper Protection:
  • Terminal cover tamper detection
  • Magnetic interference detection
  • Reverse energy detection
  • Communication interference protection
• User Functions:
  • Emergency credit function
  • Low balance warning alerts
  • Consumption monitoring
• Installation Type: Indoor panel mounted system
• Operating Temperature Range: Approximately minus 10 degrees C to 55 degrees C
• Protection Rating: IP20 for indoor use
• Standards Compliance: STS prepaid standard IEC compliant
• Application:
  • Residential sub metering
  • Rental properties and apartments
  • Small commercial installations
• Key Features:
  • Compact DIN rail design
  • Portable handheld control unit
  • Secure prepaid billing system
  • Anti tamper protection
  • Easy installation and operation
