Product Description

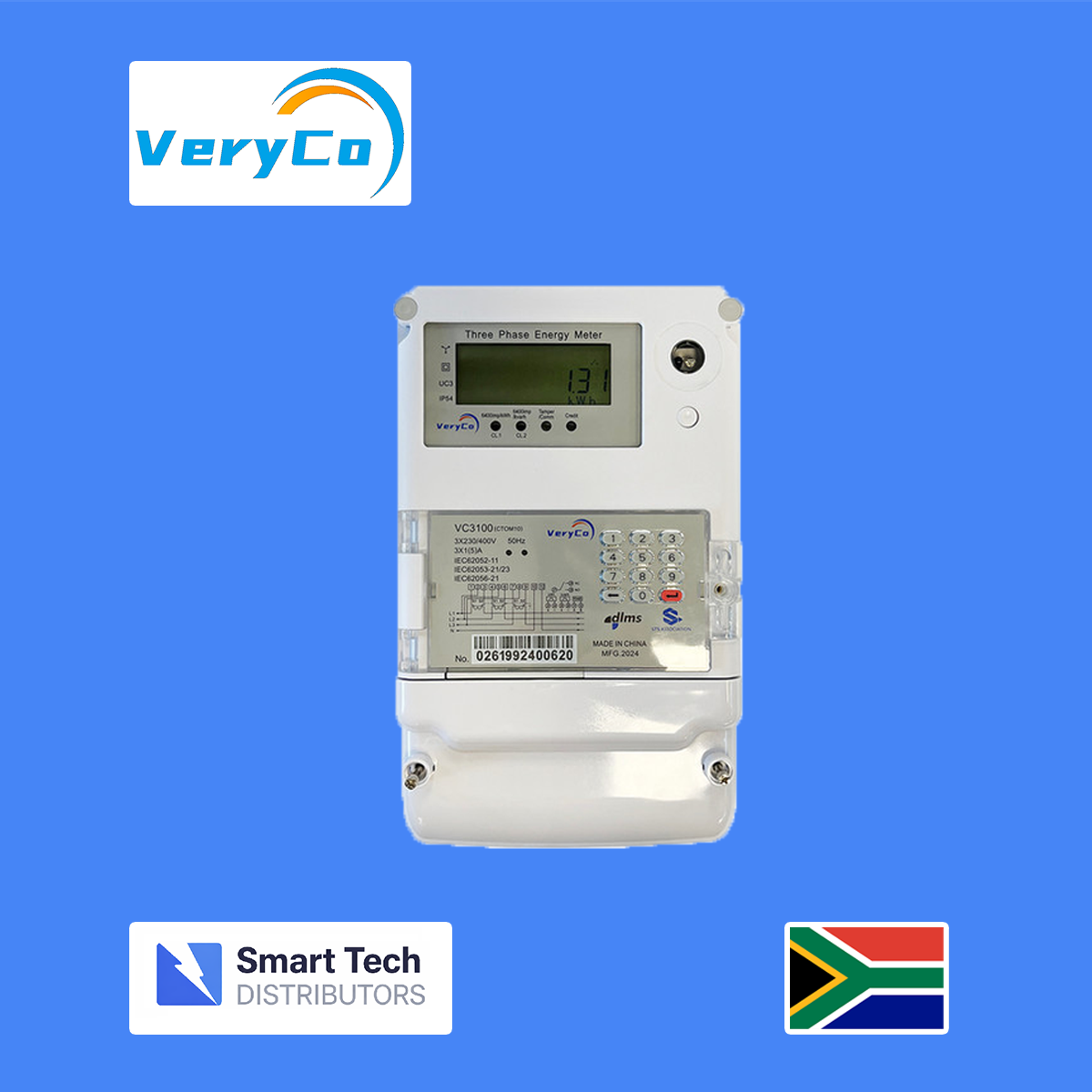

The VeryCo VC3100 three phase prepaid meter is an advanced CT operated energy metering solution engineered for high demand commercial and industrial environments. Unlike direct connected meters, it uses current transformers to measure large electrical loads, making it suitable for installations where current exceeds standard meter ratings.

The meter supports both prepaid and postpaid operation using STS compliant token based technology, enabling secure and flexible electricity billing. It is equipped with modern communication interfaces such as RS485, PLC, RF, and optional 2G 3G 4G connectivity, allowing integration into smart metering and utility management systems.

Designed for scalability and efficiency, the VC3100 features advanced tariff management including time of use billing, load profiling, and detailed energy monitoring. It can track power quality parameters such as voltage fluctuations and harmonic distortion, ensuring reliable system performance and improved energy management.

Its rugged design, wide operating temperature range, and strong anti tamper protections make it suitable for harsh industrial environments, while its flexible modular communication design ensures future compatibility and upgrades.

Technical Specifications

• Brand: VeryCo
• Model: VC3100
• Meter Type: Three phase CT operated prepaid electricity meter
• Phase Type: Three phase four wire system
• Operation Modes:
  • Prepaid STS mode
  • Postpaid mode selectable
• Nominal Voltage: 3 x 230 400 V
• Voltage Range: 0.5Un to 1.3Un
• Frequency: 50 Hz
• Current Rating: 1 6 A secondary via CT connection
• Accuracy Class:
  • Active energy Class 0.5
  • Reactive energy Class 2.0
• Measurement Capabilities:
  • Active energy kWh
  • Reactive energy kVARh
  • Apparent energy kVAh
  • Power factor
  • Import and export energy
• Communication Interfaces:
  • Optical port IEC62056 21
  • RS485
  • PLC communication
  • RF communication Wi Sun
  • 2G 3G 4G optional
• Protocol Support: DLMS COSEM and IEC standards
• Tariff Support:
  • Up to 8 tariffs
  • Time of use billing
  • Seasonal tariffs
  • Special day configuration
• Load Profiling: Daily and hourly recording for multiple parameters
• Power Quality Monitoring:
  • Voltage sag and swell detection
  • Total harmonic distortion monitoring
  • Max and min value tracking
• Security Features:
  • Encrypted communication AES128 AES256
  • Anti tamper detection
  • Magnetic interference detection
  • Cover and terminal tamper alerts
• Relay: External or integrated load control depending on configuration
• Display: LCD display showing energy usage and system data
• Operating Temperature Range: Minus 25 degrees C to 75 degrees C
• Humidity: Up to 95 percent non condensing
• Protection Rating: IP54
• Standards Compliance:
  • IEC 62052 11
  • IEC 62053 21
  • IEC 62053 23
  • IEC 62055 31
• Installation Type: CT operated commercial and industrial installation
• Application:
  • Industrial plants
  • Large commercial buildings
  • Shopping centers
  • Utility metering systems
• Key Features:
  • Designed for high current applications via CTs
  • Advanced communication and smart metering integration
  • Detailed energy and power quality monitoring
  • Multi tariff billing capability
  • Robust industrial grade design
