Description

Product Description

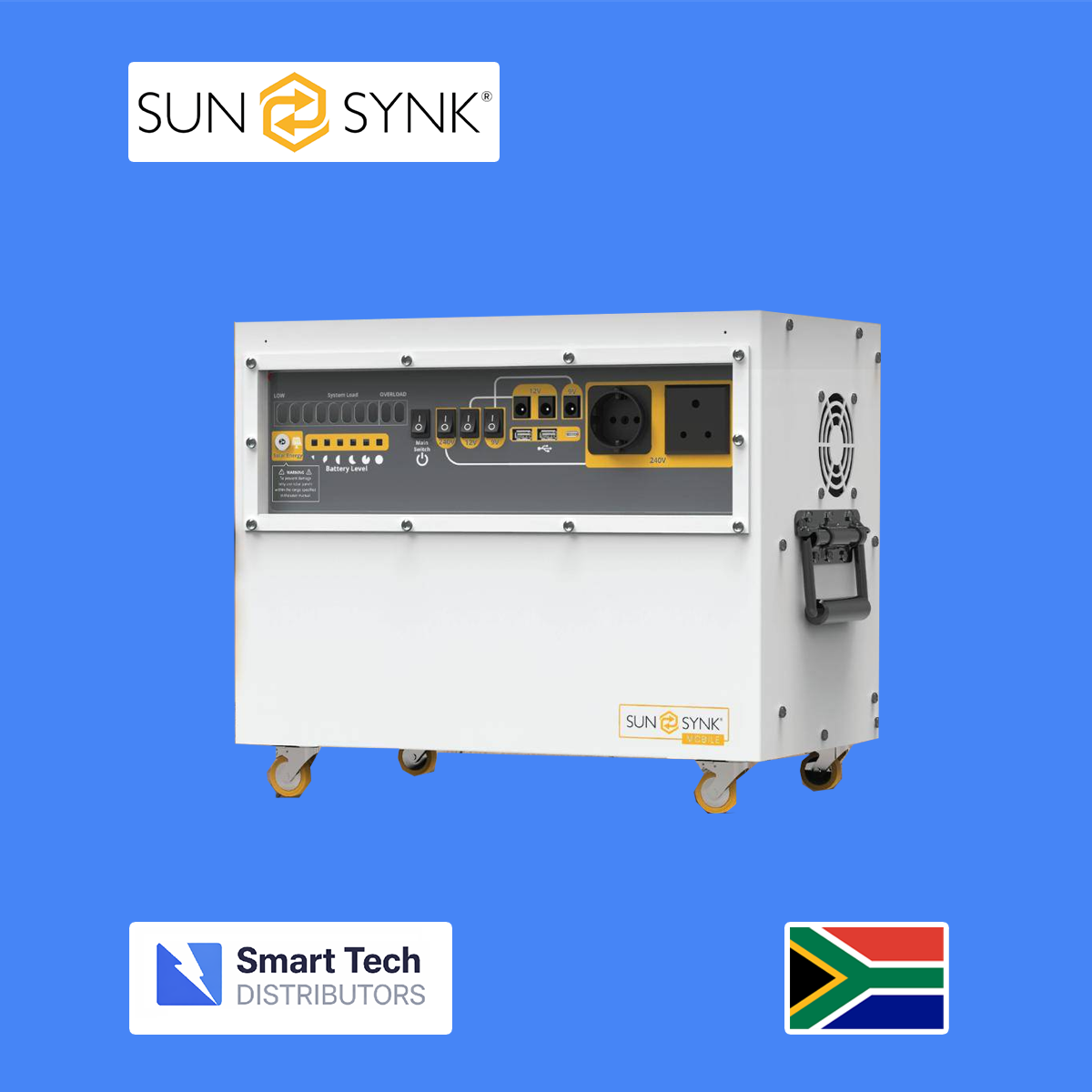

The Sunsynk Contour Trolley 1kW plus 2kWh is a compact and mobile energy storage system designed for homes, offices, and remote work environments that require reliable backup power. The unit integrates a pure sine wave inverter with a lithium iron phosphate battery, providing clean and stable power suitable for sensitive electronics and household appliances.

The trolley design includes wheels and a sturdy frame, making it easy to move between rooms or locations. It can power devices such as routers, laptops, televisions, lighting, and small appliances during load shedding or power interruptions. The system can be charged using standard AC mains electricity or through compatible solar panels using the built in MPPT solar charge controller.

Multiple output ports allow the unit to power AC and DC devices simultaneously. Built in battery management and protection systems ensure safe operation by preventing overload, short circuit, over temperature, and over voltage conditions. The durable steel enclosure and integrated monitoring indicators provide reliability and simple user operation.

---

Technical Specifications

Inverter

• Rated inverter power 1000W continuous output

• Peak surge power approximately 2000W

• Output waveform pure sine wave

• Inverter efficiency greater than 92 percent

• Output frequency 50Hz

• Total harmonic distortion less than 3 percent

Battery

• Battery type lithium iron phosphate LiFePO4

• Total battery capacity approximately 1843Wh to 2000Wh

• Battery configuration 2 battery packs 25.6V 36Ah each

• Long cycle life lithium battery technology

Charging

• Charging method AC mains or solar panel input

• AC charging input 240V AC 50Hz

• Maximum AC charging power approximately 250W

• Solar charger type MPPT

• Maximum solar charging power approximately 250W

• Solar panel voltage range 32V to 60V

• Maximum solar charging current approximately 10A

Outputs

• AC outlet 240V AC output

• USB ports 2 x USB 5V 2A

• Type C output 18W

• DC outputs 1 x DC 9V 1A and 2 x DC 12V outputs

• Multiple output ports allow simultaneous device charging

Physical Specifications

• Portable trolley design with wheels

• Case material steel enclosure

• Dimensions approximately 556 mm x 330 mm x 445 mm

• Weight approximately 25 kg to 35 kg depending on configuration

Operating Conditions

• Operating temperature range approximately minus 10C to 40C

• Built in LED indicators for load level and battery status

• Integrated protection systems including overload protection, over voltage protection, over current protection, short circuit protection and over temperature protection

Applications

• Home backup during load shedding

• Small office and workstation backup power

• Portable power for technicians and field work

• Outdoor events and temporary power setups

• Off grid and emergency energy supply
