Description

Product Description

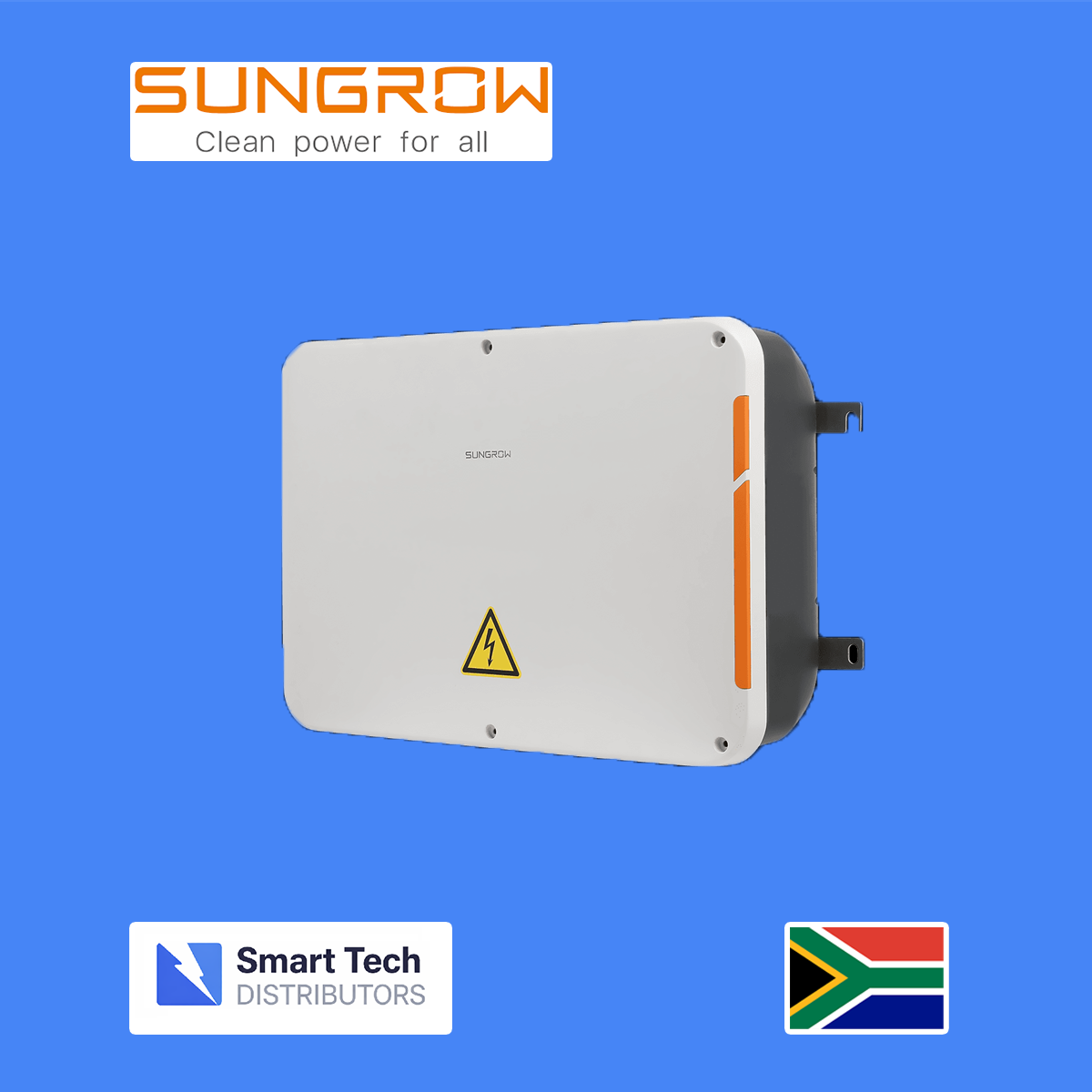

• Central communications hub that connects multiple Sungrow inverters and related equipment to a monitoring system and cloud platform for system supervision and management.

• Supports batch parameter settings and firmware updates for connected inverters to streamline operations and reduce onsite maintenance effort.

• Provides flexible networking with support for RS485, Ethernet, and WLAN (Wi-Fi) connections — enabling communication with energy meters, environmental sensors, and weather stations.

• Local server built into the device allows configuration and real-time monitoring of the PV plant and connected peripherals.

• Rugged, weather-resistant enclosure suitable for outdoor or indoor installation, with integrated night maintenance light to assist service personnel in low-light conditions.

• Optimises operational expenditure by enabling remote web access for plant maintenance and monitoring, reducing the need for frequent site visits.

Technical Specifications

General

• Model: Smart Communication Box (e.g., COM100E variant).

• Maximum supported devices: Up to 30 connected devices (inverters, meters, sensors).

• Communication interfaces:

  • RS485: 3 ports for inverters and peripherals.

  • Ethernet: 1 × RJ45 (10/100/1000 Mbps) for network connection.

  • WLAN: Wi-Fi support (802.11 b/g/n/ac, 2.4 GHz & 5 GHz).

Inputs & Monitoring

• Digital inputs: 5 inputs (Max. 24 VDC) for digital signal monitoring.

• Analog inputs: 4 inputs supporting 4 ~ 20 mA or 0 ~ 10 VDC for external sensors/meters.

Power & Consumption

• Power supply input: 100 VAC ~ 300 VAC, 50/60 Hz.

• Power consumption: Typical ~20 W, Maximum ~30 W.

• Night maintenance light: < 1 W consumption.

Environmental & Protection

• Operating temperature: –30 °C to +60 °C.

• Storage temperature: –40 °C to +70 °C.

• Relative humidity: ≤ 95 % (non-condensing).

• Maximum operating altitude: ≤ 4000 m.

• Protection class: IP66 rated for outdoor and indoor use.

Mechanical & Installation

• Dimensions (W × H × D): ~460 mm × 315 mm × 126 mm.

• Weight: ~6 kg (varies by model/variant).

• Mounting options: Wall mounted, bracket mounted, or pole mounted — suitable for outdoor and indoor installations.

• Enclosure material: Durable polycarbonate (PC) housing for environmental resistance.

Functions & Compatibility

• Remote plant monitoring via web and cloud platforms.

• Batch inverter parameter setting and firmware updates.

• Active and reactive power control support.

• Supports real-time local monitoring and management.

Use Cases

• Centralised communication hub in PV systems with multiple inverters, sensors, and meters.

• Facilitates system integration and data collection for commercial, industrial, and larger residential installations.
