Product Description

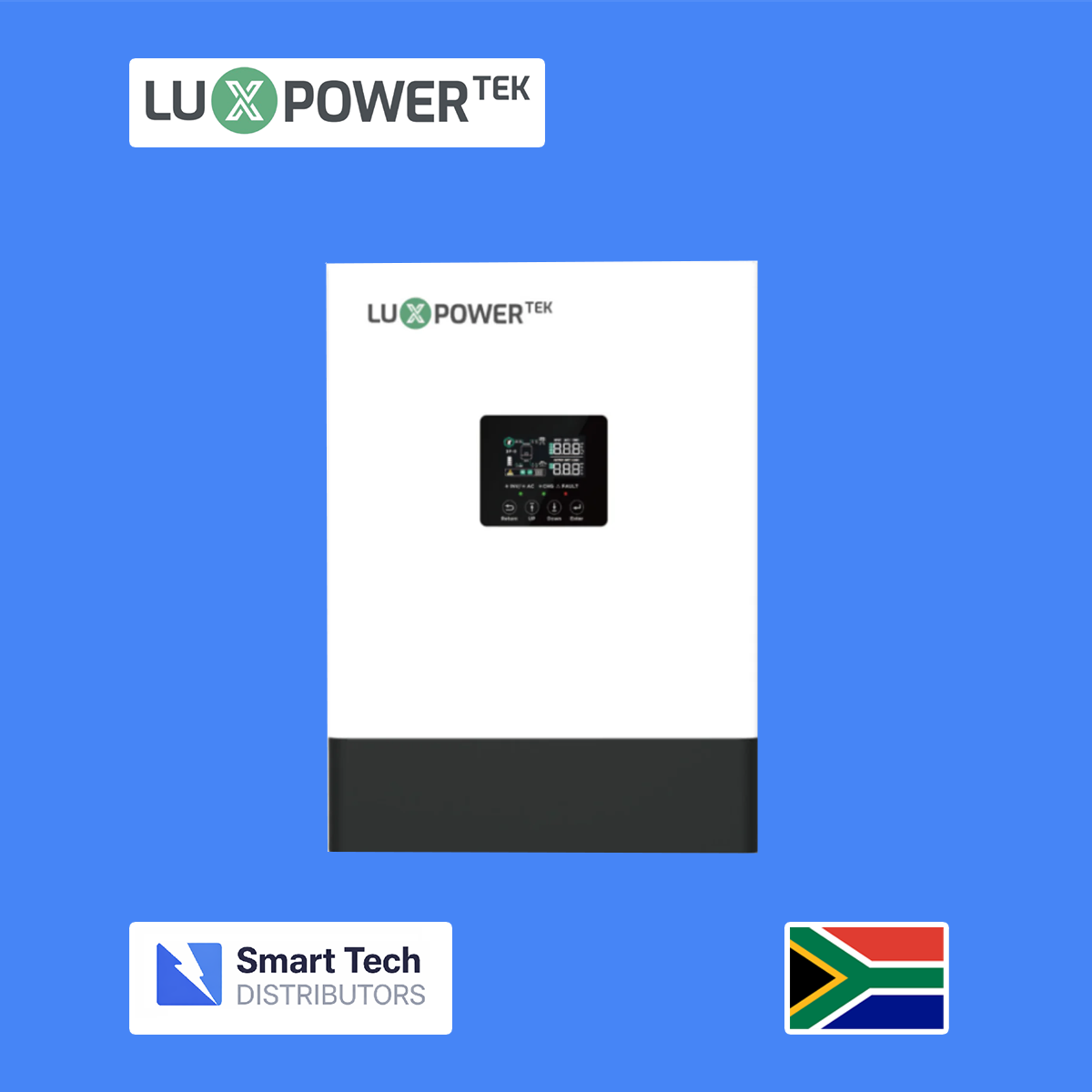

The Luxpower GETA LB EU 3.6kW hybrid inverter is a compact and efficient energy solution designed for residential solar installations. It combines solar generation, battery storage, and grid interaction into a single intelligent unit, enabling users to maximize self consumption and maintain power during outages.

Equipped with dual MPPT trackers, the inverter allows for optimal energy harvesting from multiple solar array orientations. It supports both lithium ion and lead acid batteries, providing flexibility for different storage configurations.

The inverter features seamless switching between grid and backup power, ensuring uninterrupted supply during load shedding or power failures. Advanced monitoring through a mobile app or web platform enables real time tracking of system performance and energy usage.

Designed for both on grid and off grid applications, the unit supports generator integration and AC coupling, making it suitable for a wide range of residential and small commercial energy systems. Its robust enclosure and efficient cooling design ensure reliable operation in various environmental conditions.

Technical Specifications

• Product Type: Hybrid solar inverter
• Model: GETA LB EU 3.6kW
• Rated Output Power: 3.6 kW
• Phase: Single phase
• MPPT Trackers: 2 independent MPPT inputs
• Strings per MPPT: Up to 2 strings per tracker
• Maximum PV Input Power: Approximately 6.6 kW to 7 kW depending on variant
• Maximum DC Voltage: 530 V
• MPPT Voltage Range: 150 V to 425 V
• Start Up Voltage: 100 V
• Maximum Input Current per MPPT: 18 A
• Maximum Short Circuit Current per MPPT: 32 A
• Battery Compatibility: Lithium ion and lead acid
• Battery Voltage: Typically 48 V systems
• Maximum Efficiency: Approximately 97.3 percent
• Nominal AC Voltage: 220 to 240 V AC
• Frequency: 50 Hz
• Rated AC Current: Approximately 15.7 A
• Backup Switching Time: Less than 20 ms
• Parallel Capability: Up to 10 units
• Maximum PV Input (Gen2 models): Up to 9.6 kW
• Cooling Method: Fan cooling
• Protection Rating: IP65 to IP66 suitable for indoor or outdoor installation
• Communication Interfaces: RS485 WiFi optional
• Monitoring: Mobile app and web platform
• Operating Temperature Range: Minus 25 degrees C to 60 degrees C
• Dimensions: Approximately 455 x 487 x 211 mm
• Weight: Approximately 29 kg
• Installation Type: Wall mounted
• Compliance: IEC standards for hybrid inverters

Key Features

• Dual MPPT for improved solar harvesting
• Hybrid functionality with battery storage integration
• Seamless backup during power outages
• Supports generator input and AC coupling
• Remote monitoring via mobile app
• Expandable system with parallel capability
• High efficiency and reliable performance
