Product Description

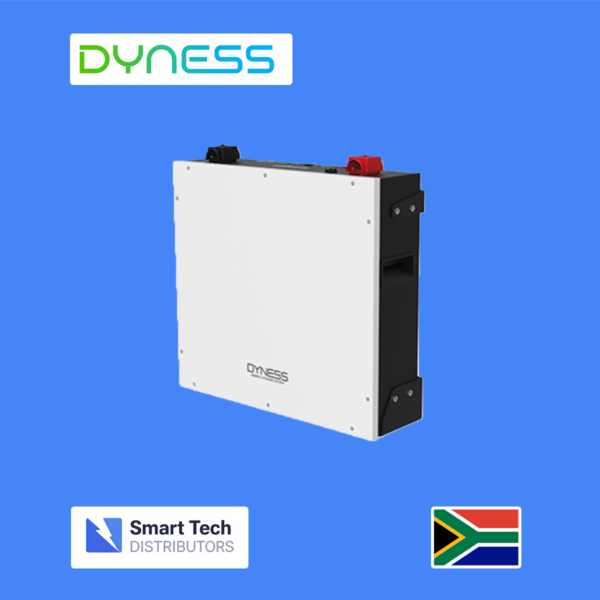

The Dyness DL5.0 5.12kWh battery is engineered using advanced lithium iron phosphate technology to provide safe, stable, and efficient energy storage. It is ideal for residential hybrid solar systems, off grid installations, and small commercial backup applications.

Equipped with an intelligent battery management system, the DL5.0 continuously monitors voltage, current, and temperature to ensure optimal performance and protection. The modular design allows multiple units to be connected in parallel, enabling scalable storage capacity as energy requirements increase.

Its wall mounted design ensures space saving installation while maintaining a clean and professional appearance. With a 10 year manufacturer warranty, the Dyness DL5.0 provides long term peace of mind and consistent energy storage performance.

---

Technical Specifications

Battery Specifications

• Battery chemistry Lithium iron phosphate LiFePO4

• Nominal energy 5.12kWh

• Nominal voltage 51.2V

• Nominal capacity 100Ah

• Recommended depth of discharge Up to 90 to 95 percent

• Cycle life More than 6000 cycles at 80 percent depth of discharge

• Design life More than 10 years

Electrical Parameters

• Working voltage range Approximately 44.8V to 57.6V

• Recommended charge current 50A

• Max continuous charge current 75A

• Max continuous discharge current 100A

• Communication CAN and RS485

• Integrated smart battery management system

Protection Features

• Overcharge protection

• Over discharge protection

• Overcurrent protection

• Short circuit protection

• Over temperature protection

• Cell balancing function

Mechanical Specifications

• Installation Wall mounted

• Cooling Natural convection

• Protection rating IP20

• Parallel connection supported for system expansion

Environmental Conditions

• Operating temperature charge 0C to 55C

• Operating temperature discharge minus 20C to 55C

• Storage temperature minus 20C to 60C

• Indoor installation recommended

Warranty

• 10 year manufacturer warranty subject to installation and usage conditions

The Dyness DL5.0 5.12kWh is a dependable and expandable solution for modern residential energy storage systems.
