Description

Product Description

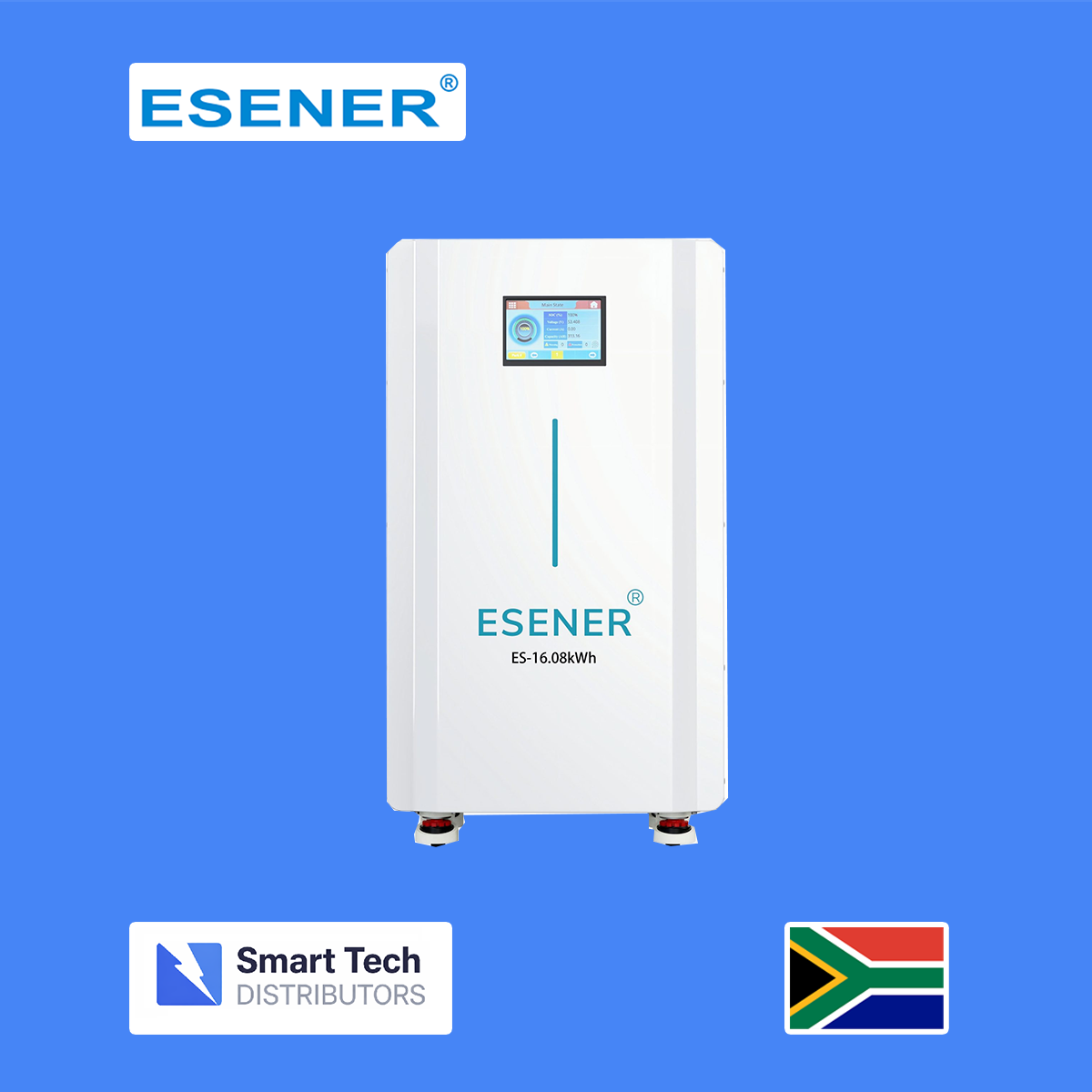

The Esener 16.08kWh Low Voltage Lithium Battery is a powerful lithium energy storage system designed to support modern solar installations and backup power systems. Built using high quality lithium prismatic cells and an advanced PACE Battery Management System, the battery provides stable performance, high efficiency, and enhanced safety protection.

This battery is designed for both residential and light commercial solar systems that require larger storage capacity. It supports intelligent monitoring through an integrated LCD touchscreen display and includes built in WiFi and Bluetooth connectivity for remote monitoring and system management. These communication features allow seamless integration with compatible hybrid inverters and enable users to monitor system performance in real time.

The robust steel enclosure allows wall mounting or rack installation while providing durability and protection for internal components. The battery can also be expanded by connecting multiple units in parallel, making it suitable for scalable solar energy storage systems.

---

Technical Specifications

Battery Specifications

• Battery capacity 16.08kWh

• Nominal voltage 51.2V

• Rated capacity 314Ah

• Battery chemistry lithium ion prismatic cells

• Battery management system PACE BMS

Charging and Discharging

• Maximum continuous charging current 200A

• Maximum continuous discharging current 200A

• Equalized charge voltage approximately 57.6V

• Discharge cutoff voltage approximately 44.8V

Cycle Life and Performance

• Approximately 4000 cycles at 100 percent depth of discharge

• More than 6000 cycles at 80 percent depth of discharge

• Long service life up to approximately 15 years

• High energy density lithium battery design

Communication and Monitoring

• CAN Bus communication port

• RS485 communication port

• Built in WiFi and Bluetooth monitoring

• Integrated LCD touchscreen display for system monitoring

System Expansion

• Parallel connection supported up to 15 battery units

• Scalable energy storage for larger residential or commercial systems

• Compatible with many inverter brands including Deye, Growatt, Sunsynk, Luxpower, Victron and SMA

Physical Specifications

• Dimensions approximately 430 mm x 230 mm x 900 mm

• Weight approximately 120 kg

• Steel enclosure with protective finish

• Wall mount or rack mount installation

Operating Conditions

• Charging temperature range 0C to 50C

• Discharging temperature range minus 10C to 50C

• Storage temperature range minus 10C to 50C

Protection and Safety

• Integrated Battery Management System with voltage monitoring

• Over charge protection

• Over discharge protection

• Over current protection

• Temperature protection

• Electronic circuit breaker and current limiting protection

Certification and Compliance

• CE certification

• UN38.3 transport certification

• IEC safety certification

• MSDS compliance
