Description

Product Description

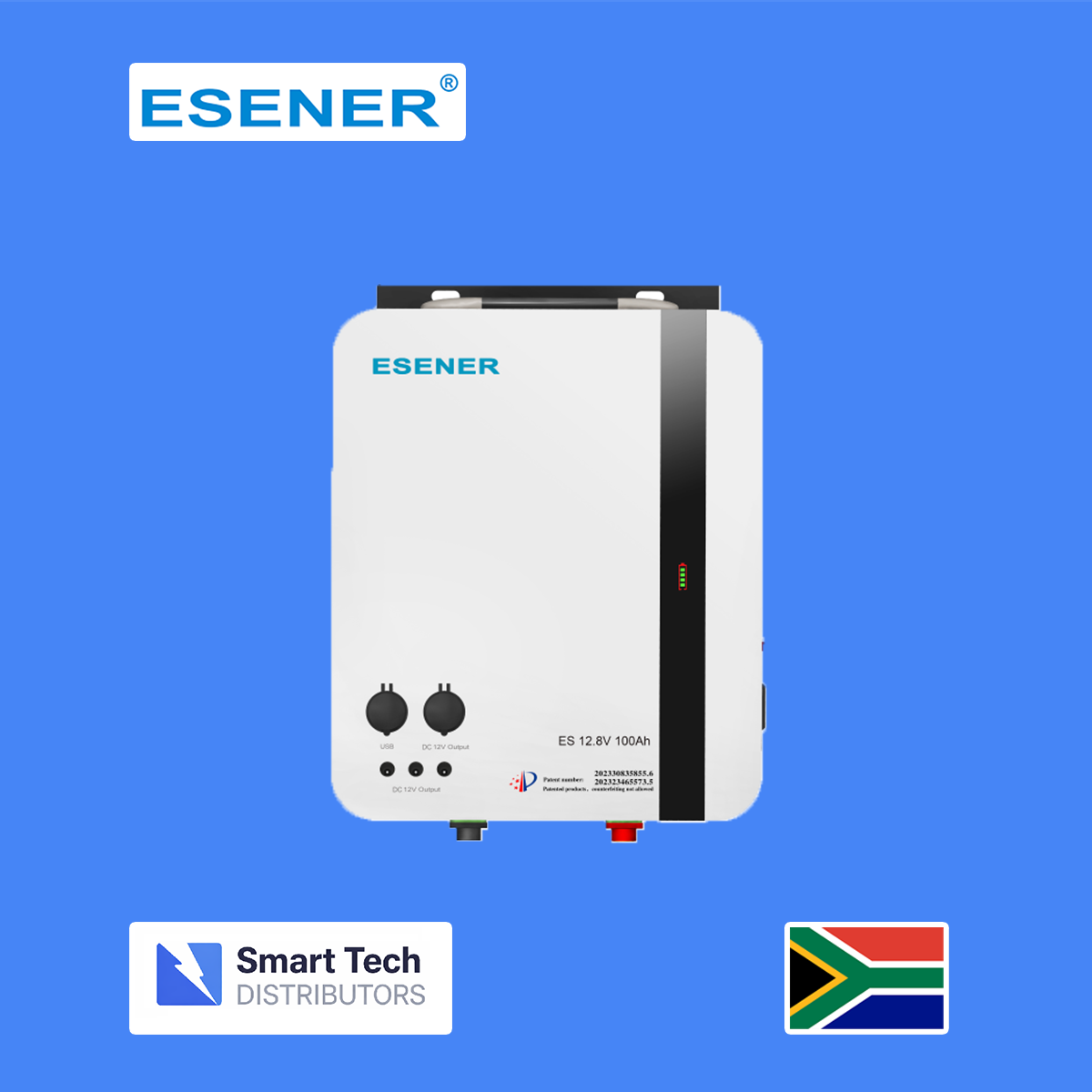

The Esener 1.28kWh Low Voltage Battery is a multifunctional lithium energy storage solution built for small scale solar power systems, backup power setups, and portable power applications. It combines the functions of a solar storage battery, UPS battery, and portable power source in a single compact unit.

The battery uses high quality lithium cells and includes an integrated Battery Management System that protects against over charge, over discharge, over current, and temperature issues. Its low voltage design makes it compatible with many small inverters, solar charge controllers, and battery chargers.

The unit can be wall mounted or installed on a shelf and includes convenient carry handles for easy handling. With multiple output options including AC, DC, and USB ports, the battery can power a wide range of devices such as routers, lights, laptops, and small appliances. The durable steel enclosure and LED display provide both protection and easy monitoring of battery status.

---

Technical Specifications

Battery Specifications

• Battery capacity 1.28kWh

• Nominal voltage 12.8V

• Rated capacity 100Ah

• Battery type lithium ion cylindrical cells

• C rating 1C high performance battery

Charging and Discharging

• Discharge cut off voltage 11.5V

• Equalized charge voltage 14.6V

• Maximum continuous charging current 100A

• Maximum continuous discharging current 100A

Cycle Life and Performance

• Cycle life approximately 5000 cycles at 80 percent depth of discharge

• Design life approximately 15 years

• Low self discharge rate

Outputs and Ports

• AC output 220V AC with up to approximately 300W output

• DC output 12V DC up to 100A

• USB output 5V charging port

• Multiple output ports for various devices

Battery Management and Protection

• Integrated Battery Management System BMS

• Over charge protection

• Over discharge protection

• Over current protection

• Temperature protection

• Electronic circuit breaker and current limiting

Physical Specifications

• Dimensions approximately 380 mm x 450 mm x 93 mm

• Weight approximately 14.1 kg

• LED battery status display

• White steel case enclosure

• Wall mount design with carry handles

Operating Conditions

• Charging temperature range 0C to 50C

• Discharging temperature range minus 10C to 50C

• Storage temperature range minus 10C to 50C

Installation and Expansion

• Wall mount or shelf rack installation

• Parallel and series connection supported up to 2s2p configuration

• Compatible with most 12V inverters, solar controllers, and battery chargers

Warranty and Certification

• Typical warranty 3 years depending on supplier

• Certifications include UN38.3 IEC and MSDS safety standards.
