Product Description

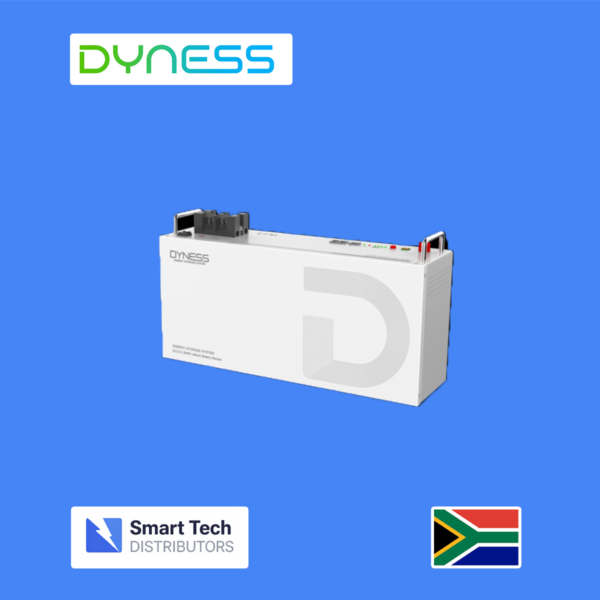

The Dyness DL2.5 battery module is built with lithium iron phosphate technology to deliver stable energy storage with enhanced safety and durability. It is ideal for residential solar systems, small commercial installations, and off grid applications requiring dependable backup power.

The integrated battery management system continuously monitors voltage, current, and temperature to ensure safe operation and extended battery lifespan. The modular design allows multiple units to be connected in parallel to increase storage capacity as system requirements grow.

Its slim wall mounted construction makes installation easy while maintaining a clean and professional appearance for indoor energy storage setups.

---

Technical Specifications

Battery Specifications

• Battery Chemistry Lithium iron phosphate LiFePO4

• Nominal Voltage 51.2V

• Nominal Capacity 50Ah

• Nominal Energy 2.56kWh

• Usable Energy Up to 90 percent depending on configuration

• Cycle Life More than 6000 cycles at 80 percent depth of discharge

• Design Life More than 10 years

Electrical Parameters

• Max Continuous Charge Current 50A

• Max Continuous Discharge Current 50A

• Communication CAN and RS485

• Integrated smart battery management system

Protection Features

• Overcharge protection

• Over discharge protection

• Overcurrent protection

• Short circuit protection

• Over temperature protection

• Cell balancing management

Mechanical Specifications

• Installation Wall mounted

• Cooling Natural convection

• Protection rating IP20

• Expandable parallel connection supported

Environmental Conditions

• Operating temperature charge 0C to 55C

• Operating temperature discharge minus 20C to 55C

• Storage temperature minus 20C to 60C

• Indoor installation recommended

The Dyness DL2.5 provides a compact and scalable solution for efficient residential energy storage systems.
