Description

Product Description

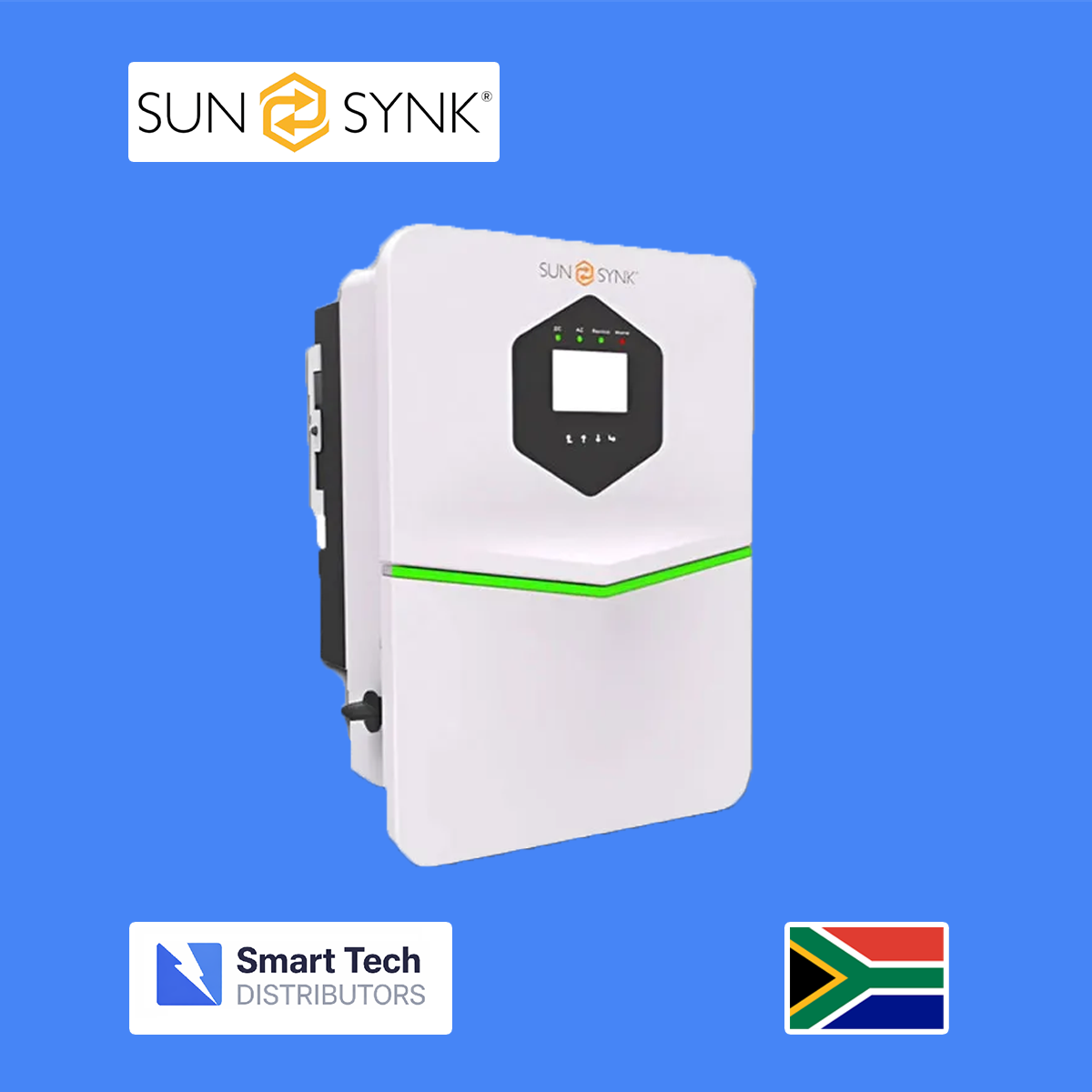

The Sunsynk Acure 8kW hybrid inverter represents an advanced evolution in energy storage and power management technology. Designed to combine solar inversion, battery storage control, and grid interaction in a single unit, it enables efficient and flexible energy usage for homes and businesses.

Built with modern installers and users in mind, the Acure series introduces integrated communication features including WiFi, Bluetooth, LAN, and LoRa, eliminating the need for additional dongles or modules. The inverter supports intelligent load management through wireless CT coils and smart switching, reducing installation complexity and improving system control.

With the ability to operate in grid-tied, hybrid, or fully off-grid modes, the Acure 8kW inverter ensures uninterrupted power supply during outages while optimizing energy consumption to reduce electricity costs. Advanced safety features such as arc fault detection and PV monitoring further enhance reliability and protection.

---

Technical Specifications

• Inverter Type: Hybrid inverter

• Rated Output Power: 8000 W

• AC Output: Single phase 230V (configurable for other regions)

• Battery Voltage: 48 V DC

• Battery Compatibility: Lithium-ion and lead-acid

• Maximum Charge Current: Up to 190 A

• Transfer Time: Less than or equal to 10 ms

PV Input Specifications

• Maximum PV Input Power: Approximately 10400 W

• Maximum DC Input Voltage: Up to 500 V

• MPPT Voltage Range: 125 V to 425 V

• Number of MPPT Trackers: 2

• Maximum Input Current: 26 A plus 26 A

Performance and Features

• Hybrid functionality combining solar inverter and battery inverter

• Supports grid-tied, hybrid, and off-grid operation modes

• Seamless switching between power sources

• Parallel capability for system expansion

• Smart load management and programmable export control

• High efficiency power conversion and energy optimisation

• Compatible with generators and multiple energy sources

Connectivity and Control (Acure Series)

• Built-in WiFi, Bluetooth, LAN, and LoRa connectivity

• Remote monitoring and control via mobile or web platforms

• Wireless CT coil for simplified installation

• Supports smart switches for load control

Safety and Protection

• Integrated battery management communication

• Arc fault detection for fire prevention

• Anti-islanding protection

• Overload, short circuit, and temperature protection

• PV circuit monitoring and alarm system

Environmental and Build

• Cooling Method: Natural convection

• Protection Rating: IP65 (suitable for indoor and outdoor installation)

• Operating Temperature Range: Typically -10°C to 50°C

General

• Scalability: Parallel operation supported

• Application: Residential, commercial, and off-grid systems

• Warranty: Typically 5 years standard (extendable depending on supplier)
