Description

Product Description

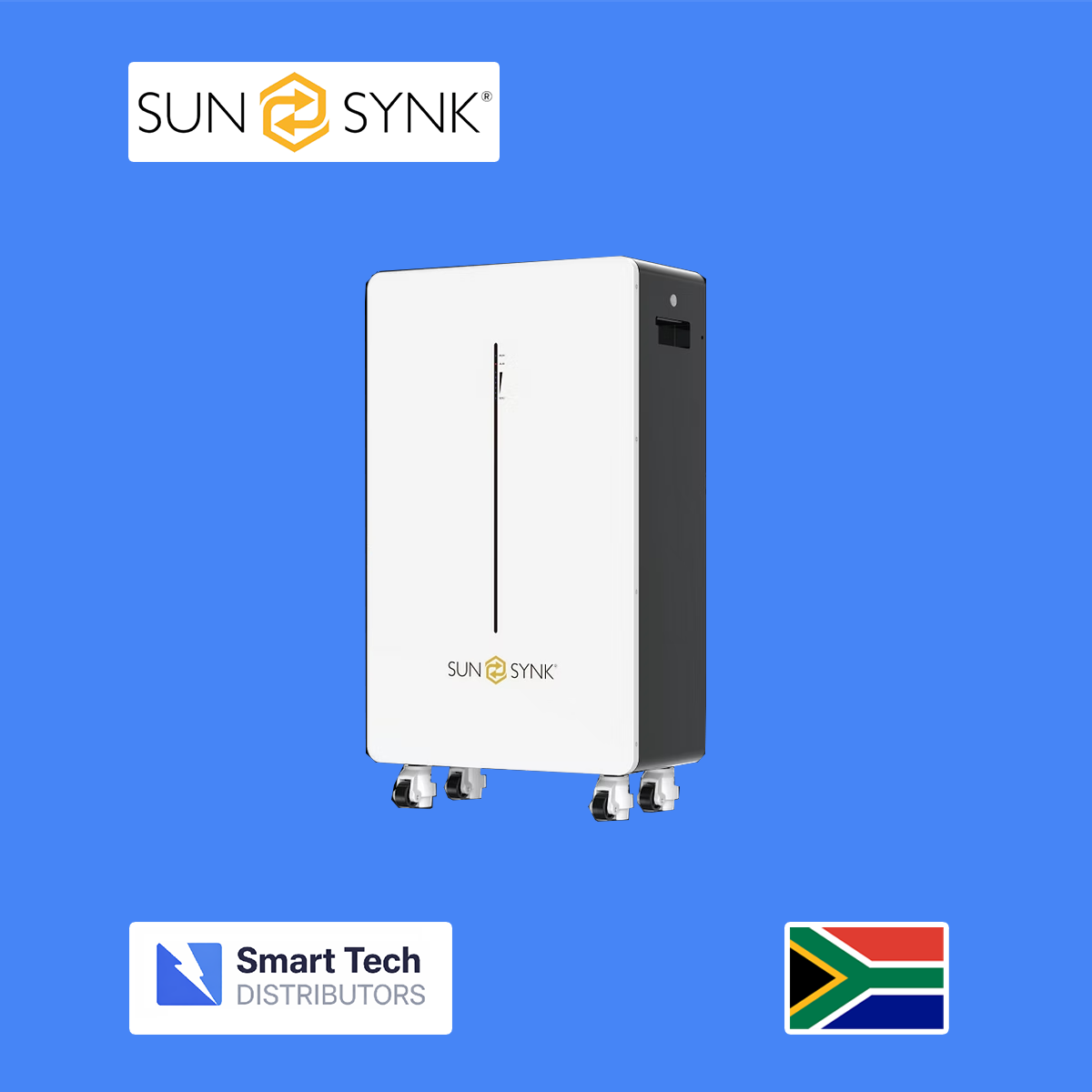

The Sunsynk 16kWh Lithium Ion Battery is engineered to store large amounts of solar energy for later use, reducing reliance on the grid and ensuring uninterrupted power during outages. Designed with lithium iron phosphate technology, it offers enhanced safety, long cycle life and consistent performance.

This battery integrates easily with Sunsynk hybrid inverters and other compatible systems, making it ideal for home backup, off grid installations and commercial energy storage. Its wall mounted design saves space while delivering high energy density and efficient charge and discharge performance.

The battery includes a built in battery management system that protects against overcharging, deep discharge, overheating and short circuits. With scalable design capabilities, multiple units can be connected in parallel to expand energy storage capacity for larger solar installations.

Technical Specifications

Battery Capacity

• 15.97 kWh nominal capacity

Battery Type

• Lithium Iron Phosphate LiFePO4

Nominal Voltage

• 51.2 V

Usable Capacity

• Approximately 95 percent usable energy

Cycle Life

• More than 6000 cycles at 80 percent depth of discharge

Maximum Charge Current

• 150 A

Maximum Discharge Current

• 150 A

Communication

• CAN

• RS485

Battery Management System

• Integrated intelligent BMS for monitoring and protection

Protection Features

• Over charge protection

• Over discharge protection

• Over current protection

• Short circuit protection

• Temperature protection

Installation

• Wall mounted design

Operating Temperature

• Charge temperature range 0 to 55 degrees Celsius

• Discharge temperature range minus 20 to 55 degrees Celsius

Expandable Capacity

• Multiple batteries can be connected in parallel for larger storage systems

Compatibility

• Designed for Sunsynk hybrid inverters and compatible lithium battery systems

Application

• Residential solar systems

• Commercial energy storage

• Backup power systems

• Off grid solar installations
