Product Description

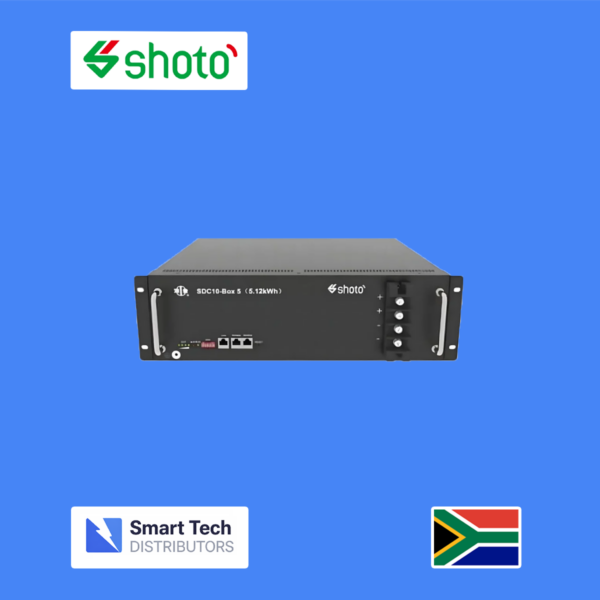

The Shoto SDC10-Box5 5 kWh battery is engineered with high-quality lithium iron phosphate cells and an intelligent battery management system to deliver safe, efficient, and long lasting energy storage. Its modular design allows multiple units to be connected in parallel for expanded system capacity as energy requirements grow. The unit can be installed in rack-mounted, wall-mounted, or stacked configurations, offering installation flexibility for different setups. Communication is supported via CAN and RS485 protocols for seamless integration with compatible hybrid and off-grid inverters. Designed for indoor use, this battery suits residential solar energy storage, load shifting, and backup power applications.

Technical Specifications

Battery Specifications

• Battery chemistry Lithium iron phosphate LiFePO4

• Nominal energy 5.12 kWh

• Usable energy approximately 4.1 kWh recommended, 5.12 kWh maximum

• Nominal voltage 51.2 V

• Rated capacity 100 Ah

• Cycle life more than 5000 to 6000 cycles at 80 to 95 percent depth of discharge

• Design life typically over 10 years

Electrical Parameters

• Recommended charge/discharge current approximately 50 A

• Maximum charge/discharge current approximately 100 A

• Communication ports CAN and RS485

Protection Features

• Integrated battery management system for safety and efficiency

• Protection against overcharge, over discharge, overcurrent and over temperature

Mechanical Specifications

• Installation options rack mounted (19 inch or 23 inch), wall-mounted, or stacked

• Protection rating IP20 for indoor use

• Dimensions approximately 443 mm x 135 mm x 440 mm

• Weight around 40 kg

Environmental Conditions

• Operating temperature charge 0 C to 45 C

• Operating temperature discharge minus 20 C to 50 C depending on source

• Storage temperature minus 20 C to 35 C

Scalability

• Supports parallel expansion up to approximately 20 units for increased total storage capacity

Compatibility

• Works with major hybrid and off-grid inverter brands including Deye, Goodwe, Victron, Luxpower, SMA, Growatt, Sofar and more

Warranty

• Warranty period varies by supplier and region typically between 5 and 10 years depending on terms
