Description

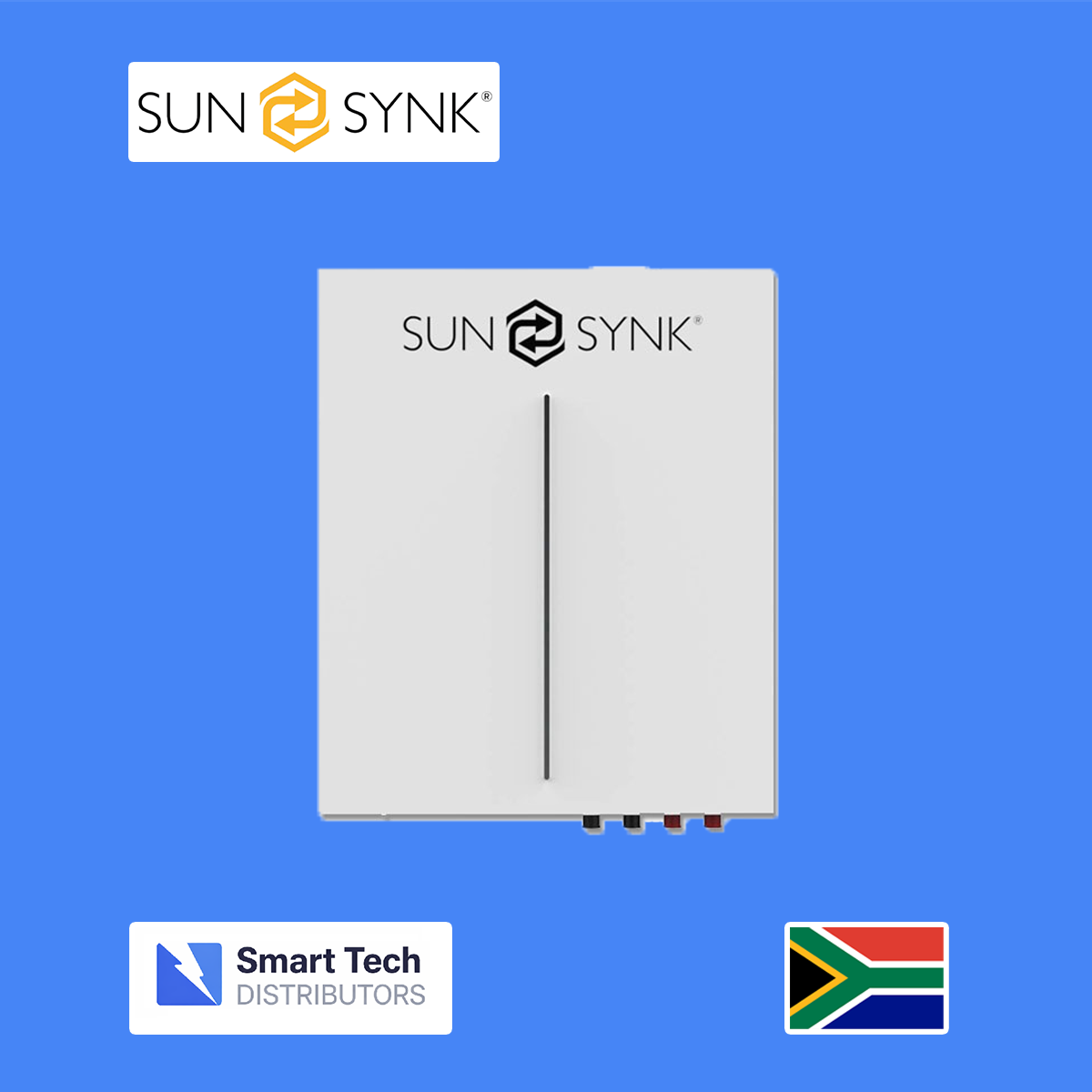

Sunsynk 5.32 kWh LiFePO₄ Lithium-Ion Battery
The Sunsynk 5.32 kWh LiFePO₄ Lithium-Ion Battery is a high-performance solar energy storage solution designed for residential and light commercial applications. Built using advanced Lithium Iron Phosphate (LiFePO₄) cell technology, this battery delivers robust safety, long life, and consistent performance — even under frequent cycling and demanding conditions. It’s ideal for load-shedding backup, increasing solar self-consumption, and reducing grid reliance.
With a nominal capacity of 5.32 kWh, this battery has enough storage to power essentials such as lighting, refrigeration, communication systems, and entertainment devices during outages or peak tariff times. Its smart Battery Management System (BMS) actively monitors and protects the battery against over-charge, over-discharge, short circuits, and overheating, ensuring reliable operation and improved longevity.
The Sunsynk 5.32 kWh battery features a compact, modular design that’s easy to install — whether wall mounted or floor mounted — and supports parallel expansion for increased total storage capacity as your energy needs grow. Combined with compatible hybrid or off-grid inverters, it allows seamless energy flow between solar production, battery storage, and household loads for efficient and cost-effective power management.
Whether you’re upgrading your existing system or building a new solar + storage setup, the Sunsynk 5.32 kWh LiFePO₄ Battery offers a dependable, safe, and scalable solution tailored for modern energy demands and South African conditions.
Technical Specifications
-
Brand: Sunsynk
-
Model: 5.32 kWh LiFePO₄ Battery
-
Battery Type: Lithium Iron Phosphate (LiFePO₄)
-
Nominal Energy Capacity: 5.32 kWh (5320 Wh)
-
Nominal Voltage: 51.2 V DC
-
Usable Capacity: ~95 % recommended depth of discharge
-
Cycle Life: ≥ 6 000 cycles @ 80 % DoD
-
Battery Management System (BMS): Integrated smart BMS for protection and cell balancing
-
Communication: CAN / RS485 compatible with supported inverters
-
Installation: Wall-mount or floor-mount compatible
-
Scalability: Support parallel connection of multiple units
-
Cooling: Natural convection
-
Protection Features:
-
Over-charge protection
-
Over-discharge protection
-
Short-circuit protection
-
Over-temperature protection
-
-
Compatible Inverters: Sunsynk, hybrid/off-grid inverters that support 48V / 51.2V batteries
-
Operating Temperature Range: ~-20 °C to +60 °C
-
Humidity: ≤ 95 % RH
-
Weight: Approx. 50–60 kg (model dependent)
-
Dimensions: Approx. 550 × 160 × 865 mm (varies by enclosure)
-
Certifications: IEC / CE / UN38.3 (model dependent)
Sunsynk 5.32kWh – User Manual
Frequently Asked Questions
What is the Sunsynk 5.32kWh LiFePO₄ Battery used for?
It stores energy for backup power, load-shedding protection, and enhanced solar self-consumption.
Can multiple batteries be connected together?
Yes, you can connect multiple units in parallel to increase total storage capacity.
What lithium technology does this battery use?
It uses LiFePO₄ cells for safety, thermal stability, and long life.
Is it suitable for load-shedding conditions?
Yes, it provides reliable backup for frequent load-shedding and unstable grids.
What protections does it include?
The smart BMS protects against over-charge, over-discharge, short circuits, and high temperatures.
