Description

Product Description

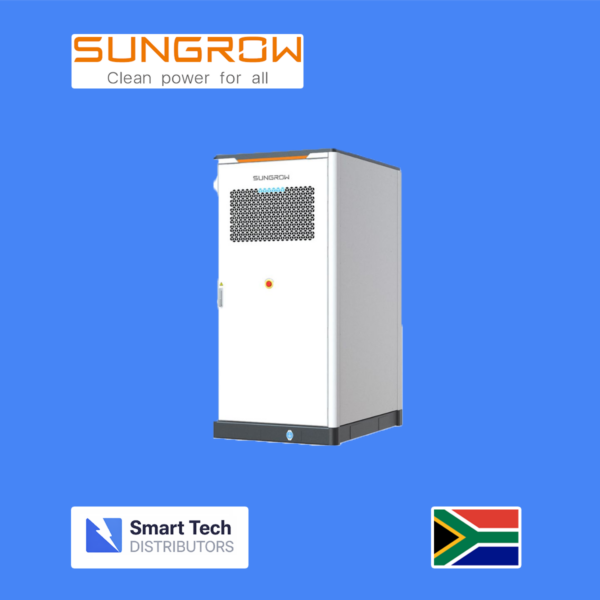

• Fully integrated outdoor BESS cabinet combining high-capacity LFP battery storage and a 110 kW PCS in one turnkey unit for grid-tied and off-grid energy storage applications.

• Uses advanced liquid cooling with AI thermal balance to maintain uniform cell temperatures and improve system efficiency and longevity.

• Fast on/off-grid switching (≤ 20 ms) provides continuous power for backup-critical loads.

• Three-level safety protections including pack, rack, and PCS overcurrent safeguards and a comprehensive fire safety design (gas, smoke, and heat detectors with suppression).

• Remote monitoring and operation supported via Ethernet and cloud platforms (iSolarCloud), enabling real-time performance monitoring and remote firmware updates.

• Scalable and flexible configuration supporting 2 h or 4 h energy durations and parallel connections up to 10 units for larger installations.

• Designed for outdoor exposure with durable IP55 protection and corrosion-resistant enclosure suitable for commercial environments.

---

Technical Specifications

Battery & Storage

• Battery chemistry: Lithium Iron Phosphate (LFP) cells.

• Usable energy capacity: 229 kWh (nominal).

• Battery configuration: 256S1P cell string arrangement.

• DC voltage operating range: 691.2 V – 934.4 V.

Power Conversion System (PCS)

• Rated PCS power output: 110 kW.

• Maximum efficiency (PCS): up to approximately 98.6 %.

• AC voltage nominal (on/off-grid): 400 V, three-phase.

• AC frequency: 50 Hz / 60 Hz supported.

• Power factor: 1.0 (leading to lagging).

Performance & Operation

• On/off-grid switching time: ≤ 20 ms for backup continuity.

• Cooling system: Intelligent liquid cooling for the battery and PCS.

• Operating temperature range: −30 °C to +50 °C (with derating above 45 °C).

• Maximum installation altitude: up to 3000 m.

Safety & Fire Protection

• Multi-level safety protections including overcurrent at battery pack, rack, and PCS levels.

• Triple-level fire safety: gas detector, smoke detector, and heat detector with suppression system.

Communications & Monitoring

• Communication interface: Ethernet.

• Protocol: Modbus TCP.

• Cloud support: Compatible with iSolarCloud for monitoring, alarms, and remote updates.

Physical & Environmental

• Enclosure protection rating: IP55 for dust and water resistance.

• Corrosion resistance: C3 standard (C5 optional).

• Dimensions (approximate): 1150 mm (W) × 2450 mm (H) × 1610 mm (D).

• Weight: Approximately 3100 kg.

• Noise level: ≤ 70 dB.

Standards & Compliance

• Safety and standards compliance: IEC 62619, IEC 62040, IEC 63056, UN 38.3, NRS 097-2-1.
