Product Description

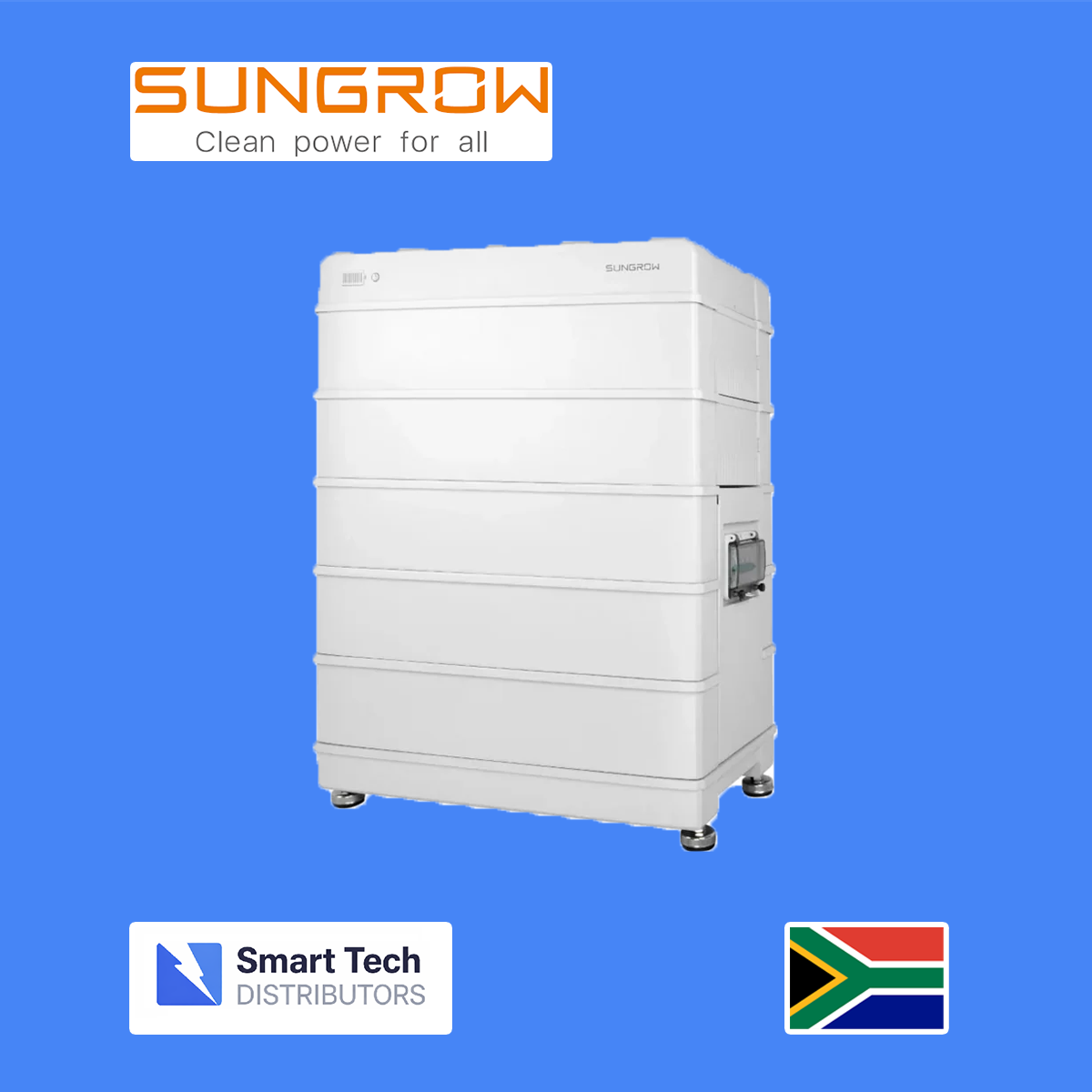

The Sungrow 16.0 kWh battery package forms part of the Sungrow SBR high-voltage battery range, built for users who require increased storage capacity and dependable backup power. Using advanced LiFePO₄ cell technology, the battery offers excellent thermal stability, high safety, and consistent performance over its lifespan.

An intelligent Battery Management System (BMS) continuously monitors each cell to ensure optimal operation, providing protection against over-voltage, under-voltage, over-current, short circuit, and temperature extremes. The modular stackable design allows easy expansion, enabling homeowners to scale their system as energy requirements grow. When paired with Sungrow hybrid inverters, the battery supports solar self-consumption, load shifting, and uninterrupted power supply during grid outages.

---

Technical Specifications (Bullet Form)

Battery & Electrical

• Battery chemistry: Lithium Iron Phosphate (LiFePO₄)

• Nominal energy capacity: 16.0 kWh

• Usable energy: Approximately 14.4–16.0 kWh

• Battery configuration: 5 × 3.2 kWh SBR modules

• Nominal system voltage: Approximately 320 V DC

• Operating voltage range: Approximately 270 V – 365 V

• Depth of discharge (DoD): Up to 100 percent

Performance

• Cycle life: > 6 000 cycles

• Round-trip efficiency: ≥ 95 percent

• Continuous operation suitable for daily cycling

• Low self-discharge rate

Charge & Discharge

• Maximum continuous charge current: 30 A

• Maximum continuous discharge current: 30 A

• Peak current (short duration): Up to 42 A

• Rated DC power: Approximately 9.6 kW

Battery Management & Protection

• Integrated intelligent BMS with active cell balancing

• Protections: Over-charge, over-discharge, over-current, short circuit, over-temperature

• Automatic fault detection and isolation

Communication & Compatibility

• Communication interfaces: CAN

• Native compatibility with Sungrow single-phase and three-phase hybrid inverters

• Plug-and-play commissioning with inverter energy management system

Physical & Installation

• Installation type: Floor-mounted, stackable modules

• Enclosure: Robust metal housing

• Cooling method: Natural convection

• Protection rating: IP55

• Suitable for indoor or sheltered outdoor installation

Environmental

• Charge temperature range: 0 °C to 50 °C

• Discharge temperature range: –20 °C to 50 °C

• Storage temperature: –10 °C to 30 °C

• Relative humidity: Up to 95 percent non-condensing

Scalability & Applications

• Expandable by adding additional SBR modules or parallel battery stacks

• Applications:

  • Residential hybrid solar systems

  • Backup power during load shedding

  • Energy self-consumption optimisation

  • Small commercial energy storage systems
