Description

Product Description

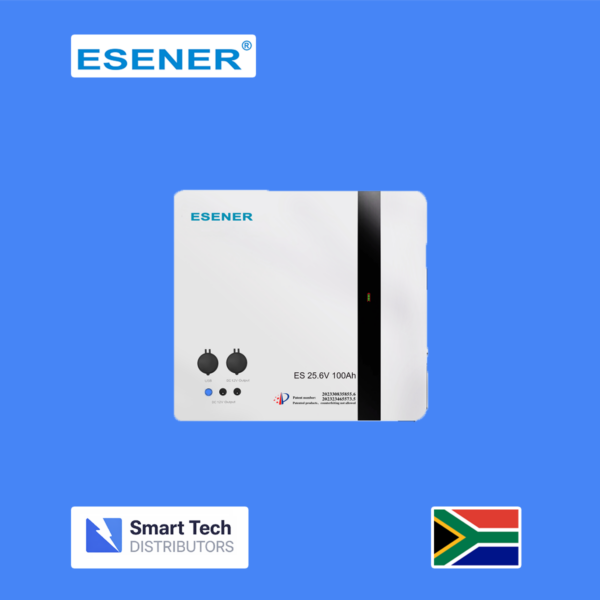

The Esener 2.56kWh Low Voltage Battery is a high performance lithium battery designed for residential backup power systems, small solar installations, and off grid energy storage. Built with high quality lithium prismatic cells, the battery provides stable energy delivery and long service life while maintaining a compact and durable design.

The unit includes an advanced Battery Management System that protects the battery from over charge, over discharge, over current, and temperature related issues. This ensures safe and reliable operation while extending battery lifespan. The battery is compatible with many 24V inverters, solar charge controllers, and lithium battery chargers, making it suitable for a wide range of solar and backup applications.

Its robust steel casing allows for wall mounting or shelf installation, and heavy duty side handles make handling and installation easier. The battery can also be expanded through parallel or series configurations to increase storage capacity for larger energy systems.

---

Technical Specifications

Battery Specifications

• Battery capacity 2.56kWh

• Nominal voltage 25.6V

• Rated capacity 100Ah

• Battery chemistry lithium ion prismatic cells

• C rating 1C high performance lithium battery

Charging and Discharging

• Maximum continuous charging current 100A

• Maximum continuous discharging current 100A

• Discharge cutoff voltage approximately 20V to 23V

• Equalised charge voltage approximately 29.2V

Cycle Life and Performance

• Cycle life approximately 5000 cycles at 80 percent depth of discharge

• More than 4000 cycles at 80 percent depth of discharge

• Design life approximately 10 to 15 years

• Low self discharge rate

System Expansion

• Supports parallel and series connections

• Maximum configuration up to 2S2P for increased capacity

• Compatible with most 24V inverters and solar charge controllers

Battery Management and Protection

• Integrated Battery Management System BMS

• Over charge protection

• Over discharge protection

• Over current protection

• Temperature protection

• Electronic circuit breaker with current limiting

Physical Specifications

• Dimensions approximately 442 mm x 400 mm x 143 mm

• Weight approximately 24.5 kg to 26 kg

• Steel case enclosure for durability

• Side handles for easy handling

• Wall mount or shelf rack installation

Operating Conditions

• Charging temperature range 0C to 50C

• Discharging temperature range minus 10C to 50C

• Storage temperature range minus 10C to 50C

Certifications

• CE certification

• UN38.3 transport certification

• IEC safety certification

• MSDS compliance for battery safety standards
