Product Description

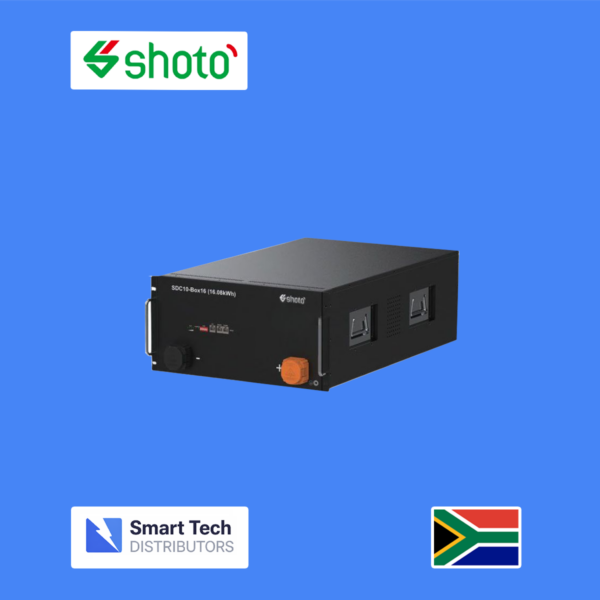

The Shoto SDC10-Box5 16kWh system consists of multiple Shoto SDC10-Box5 modules connected in parallel to achieve a total nominal capacity of 16kWh. Each module uses high quality lithium iron phosphate cells with an intelligent battery management system for stable performance and enhanced safety. The modular design supports parallel expansion of up to 20 units, making it suitable for growing energy storage requirements. The compact rack mount design also supports wall-mount or stacked installation for flexible deployment. The system integrates with a wide range of hybrid and off grid inverters via CAN and RS485 communications, enabling seamless integration with solar power systems. Certifications to international safety standards such as UL1973, IEC62619, CE, and UN38.3 provide additional peace of mind for long term operation.

---

Technical Specifications

System Configuration

• Battery type Lithium iron phosphate LiFePO4

• Configuration Modular system based on Shoto SDC10-Box5 modules

• Total nominal energy 16kWh (typically 3 x 5.12kWh modules)

• Parallel expansion supported up to 20 units

Battery Module Specifications (per 5.12kWh unit)

• Nominal energy 5.12kWh

• Usable energy up to 4.1kWh recommended, 5.12kWh maximum

• Nominal voltage 51.2V

• Depth of discharge up to 90 to 95 percent

• Cycle life greater than 6000 cycles at 80 percent DoD

Electrical Parameters

• Charge voltage range 54.0V to 56.4V

• Discharge voltage range 45.0V to 48.0V

• Recommended charge/discharge current 50A (0.5C)

• Maximum charge/discharge current 100A (1C)

• Communication ports CAN and RS485

Protection and Safety

• Integrated battery management system

• Overcharge protection

• Over discharge protection

• Overcurrent protection

• Short circuit protection

• Over temperature protection

• Cell balancing management

• Certified to UL1973, IEC62619, CE, UN38.3, CEI 0-21

Installation and Mounting

• Rack mount (19 inch or 23 inch), wall mount or stacked installation options

• Protection rating IP20 (indoor use)

• Compact design with structured cable access

Environmental Conditions

• Operating temperature charge 0°C to +45°C

• Operating temperature discharge -20°C to +50°C

• Storage temperature -20°C to +35°C

• Recommended relative humidity 5 to 95 percent

Compatibility

• Compatible with major hybrid and off grid inverter brands including Deye, Goodwe, Victron, Luxpower, SMA, Growatt, Sofar, SRNE, Solis, Voltronic, TBB, Megarevo and others

Mechanical Specifications (per module)

• Dimensions approximately 443 x 135 x 440 mm

• Weight approximately 40 kg

Warranty and Design Life

• Typical manufacturer design life over 10 years

• Warranty region dependent (commonly 5 to 10 years)

The Shoto SDC10-Box5 16kWh system provides a scalable and reliable energy storage solution for residential or commercial solar installations, enabling extended backup power capacity and improved energy autonomy.
