Product Description

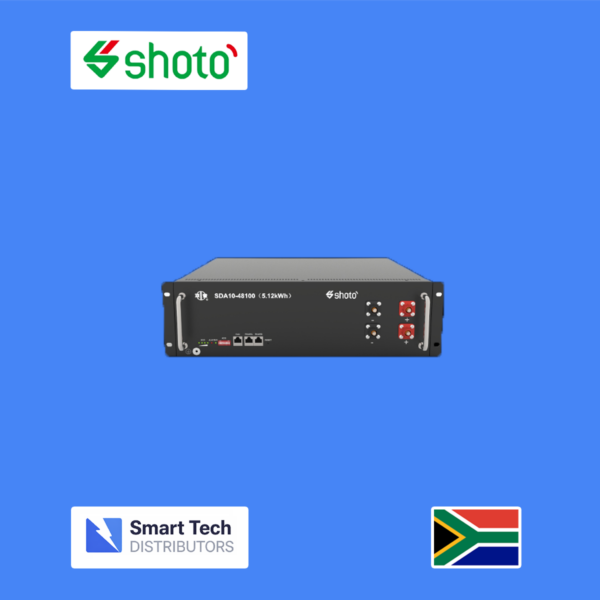

The Shoto HV 5.12kWh battery module is engineered using lithium iron phosphate technology to provide safe, efficient, and long lasting energy storage. The high voltage architecture allows multiple modules to be connected in series to achieve higher system voltages, improving system efficiency and reducing balance of system costs.

The integrated battery management system continuously monitors cell voltage, current, and temperature to ensure safe performance and protect the battery from common fault conditions. The module is suitable for residential and commercial solar installations, backup power systems, and energy shifting applications where high voltage inverter support is required.

With communication support for CAN and RS485, the Shoto HV 5.12kWh battery integrates with compatible hybrid and off grid inverters for optimized charging and discharging behaviour. The robust design ensures reliability for long term operation.

---

Technical Specifications

Battery Specifications

• Battery chemistry Lithium iron phosphate LiFePO4

• Nominal energy 5.12kWh

• Nominal voltage approximately 102.4V

• Rated capacity approximately 50Ah

• Recommended depth of discharge up to 90 percent

• Cycle life greater than 5000 to 6000 cycles at 80 percent depth of discharge

Electrical Parameters

• Maximum charge current approximately 50A

• Maximum discharge current approximately 50A

• Communication interfaces CAN and RS485

• Integrated smart battery management system

Protection Features

• Overcharge protection

• Over discharge protection

• Overcurrent protection

• Short circuit protection

• Over temperature protection

• Cell balancing function

Mechanical Specifications

• Installation Rack mount or dedicated cabinet

• Cooling Natural convection

• Protection rating IP20

• Indoor installation recommended

Environmental Conditions

• Operating temperature charge 0C to 55C

• Operating temperature discharge minus 20C to 55C

• Storage temperature minus 20C to 60C

Scalability

• Series connection supported for high voltage system configurations

• Parallel connection supported depending on inverter requirements

Compatibility

• Compatible with high voltage hybrid solar inverters
