Description

Product Description

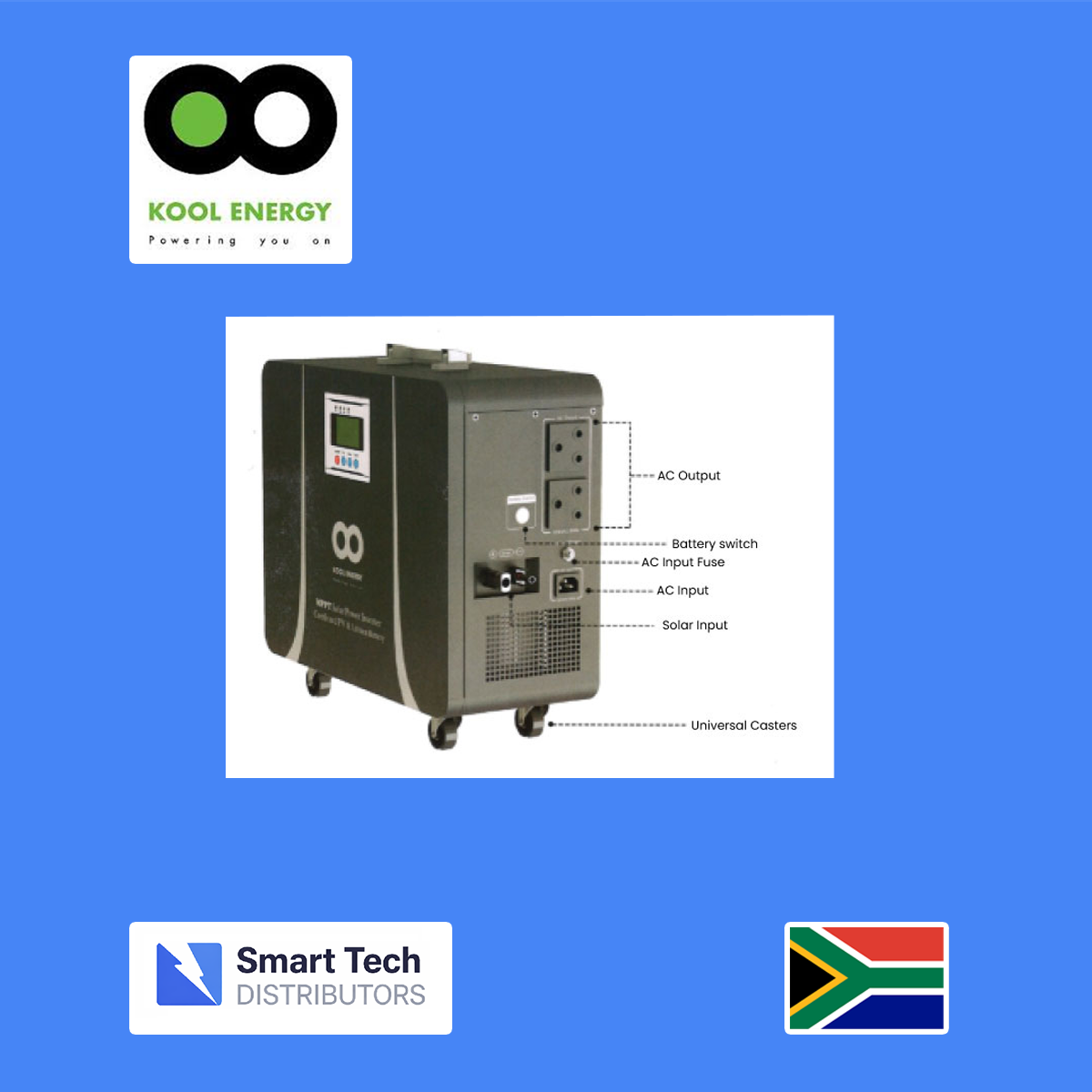

The Kool Energy 1.5kW 24V inverter is a compact and user friendly backup power system designed for convenience and portability. It converts DC power from a 24V battery system into stable AC power, making it suitable for running essential appliances such as TVs, routers, lights, and small electronics.

This inverter is commonly supplied as a plug and play trolley system with built in batteries, eliminating the need for complex installations. Its pure sine wave output ensures compatibility with sensitive electronics and motor driven loads while maintaining efficient and stable operation.

The system supports both grid charging and optional solar input, making it a versatile solution for load shedding and off grid applications. With integrated safety protections and monitoring features, it provides reliable performance and ease of use for everyday backup power needs.

Technical Specifications

• Inverter Type: Pure sine wave inverter
• Rated Power Output: 1500 W
• Input Voltage: 24 V DC
• Output Voltage: 220 V to 230 V AC
• Output Frequency: 50 Hz to 60 Hz
• Output Waveform: Pure sine wave
• Built In Battery Configuration: Typically 2 x 12 V 100 Ah batteries
• Charging Methods:
  • AC mains charging
  • Solar charging via MPPT controller
• MPPT Solar Charge Controller:
  • Rated Charge Current: 30 A
  • Maximum PV Power: Up to approximately 800 W
  • PV Voltage Range: Approximately 30 V to 150 V DC
• AC Input Voltage Range: Approximately 85 V to 275 V AC
• Output Sockets: Typically 2 x South African 3 pin sockets
• DC Outputs:
  • 2 x USB ports 5 V
  • 2 x 12 V DC ports
• Efficiency: High efficiency typical of pure sine wave systems
• Display: LCD display for system monitoring
• Cooling Method: Intelligent fan cooling
• Protection Features:
  • Overload protection
  • Short circuit protection
  • Overcharge and over discharge protection
  • Over temperature protection
• Operating Temperature Range: Approximately 0 degrees C to 40 degrees C
• Storage Temperature Range: Approximately minus 25 degrees C to 55 degrees C
• Installation Type: Plug and play portable or trolley mounted system
• Application:
  • Residential backup power
  • Small office use
  • Load shedding solutions
  • Off grid and mobile power systems
• Warranty: Typically 1 year depending on supplier
