Description

Product Description

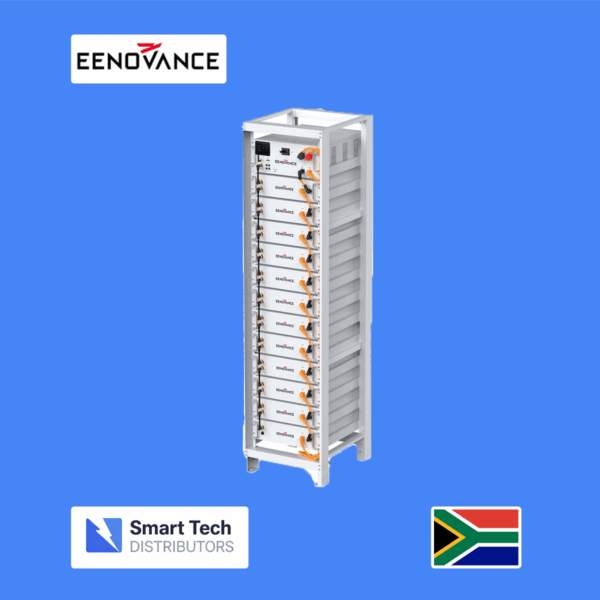

The Eenovance 61.44kWh High Voltage battery is engineered to meet the energy storage requirements of medium to large solar installations, commercial facilities, and industrial energy systems. Built using advanced LiFePO₄ cell technology, the battery offers exceptional safety, thermal stability, and durability compared to traditional lithium chemistries. An integrated high-voltage Battery Management System (BMS) continuously monitors cell voltage, current, temperature, and state of charge to ensure optimal performance and comprehensive protection against over-charge, over-discharge, over-current, short circuit, and thermal faults. Designed for seamless integration with compatible high-voltage hybrid and grid-tied inverters, the system supports scalable configurations to increase total energy capacity as project requirements grow. The robust enclosure and industrial-grade components make the Eenovance 61.44kWh HV battery suitable for long-term operation in commercial and protected industrial environments.

---

Technical Specifications (Bullet Form)

Capacity & Energy

• Total nominal energy capacity: 61.44 kWh

• Usable energy: Typically up to 80–90 percent DoD, depending on system configuration

• Designed for daily cycling applications

Voltage & Electrical

• System type: High-voltage lithium battery system

• Nominal system voltage: approximately 614 V DC

• Operating voltage range: approximately 540 – 680 V DC

• Compatible with high-voltage hybrid and grid-tied inverters

Battery Technology

• Cell chemistry: Lithium Iron Phosphate (LiFePO₄)

• High thermal stability and enhanced safety

• Long service life with minimal capacity degradation

Power & Performance

• High continuous charge and discharge capability

• Suitable for high-power commercial and industrial loads

• Supports fast response for backup and peak shaving applications

Battery Management & Protection

• Integrated high-voltage Battery Management System (BMS)

• Protection against over-voltage, under-voltage, over-current, short circuit, and over-temperature

• Cell balancing and state-of-charge control

• Fault monitoring and alarm functions

Communication & Integration

• Communication interfaces: CAN Bus and RS485

• Inverter and energy management system compatibility

• Monitoring support for system diagnostics and performance tracking

Physical & Installation

• Installation type: Floor-standing modular cabinet system

• Enclosure: Industrial-grade metal housing

• Installation environment: Indoor or fully protected commercial installations

• Modular design allows expansion with additional battery units

Environmental Operating Conditions

• Charge temperature range: 0 °C to 50 °C

• Discharge temperature range: -10 °C to 55 °C

• Designed for reliable operation in commercial environments

Lifecycle & Warranty

• Cycle life: Up to 6 000 cycles at 80 percent DoD

• Expected operational lifespan: 15 – 20 years under typical usage

• Warranty: Up to 10 years, subject to manufacturer terms

Applications

• Commercial and industrial solar energy storage

• Large residential hybrid and off-grid systems

• Backup power for critical loads

• Peak shaving and load shifting

• Grid support and energy management systems
