Product Description

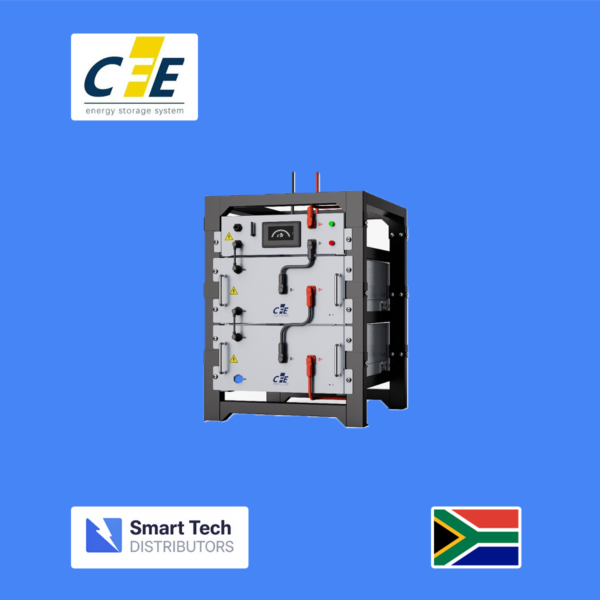

The CFE XH-20 high-voltage battery module is part of CFE’s XH Series industrial energy storage solutions. With a nominal voltage of about 204.8 V and 20.48 kWh capacity, this LiFePO₄ battery is ideal for solar PV energy storage, hybrid inverter systems, and reliable backup power applications. Its advanced Battery Management System (BMS) protects against over-charge, over-discharge, over-current, and temperature extremes, ensuring safe and durable performance. Communication via CAN/RS485 enables integration with a wide range of inverters and energy management systems. The module is rack-mountable and built for long life with typically ≥8000 cycles at standard depth of discharge.

---

Technical Specifications

General & Electrical

• Technology: LiFePO₄ (Lithium Iron Phosphate) chemistry

• Model: XH-20

• Nominal energy capacity: 20.48 kWh

• Nominal voltage: ~204.8 V DC

• Rated current (charge & discharge): 100 A (1C)

• Voltage operating range: ~172.8 – 230.4 V

• Max charging current: 100 A

• Max discharge current: 100 A

• Cycle life: ≥8000 cycles (@ 80 % DOD)

Battery Management & Communication

• Integrated BMS with protection for over/under voltage, over-current, temperature, and short circuit

• Communication protocols: CAN, RS485 for inverter/EMS integration

Operational & Environmental

• Operating temperature (charge/discharge): -15 °C to +45 °C / -15 °C to +45 °C

• Humidity tolerance: 0 – 95 % RH (no condensation)

• Install method: Rack & cabinet

Physical

• Module size (approx): 576 × 582 × 804 mm

• Protection class (typical): IP65 / weather resistant housing (industry rack-grade)
