Description

Product Description

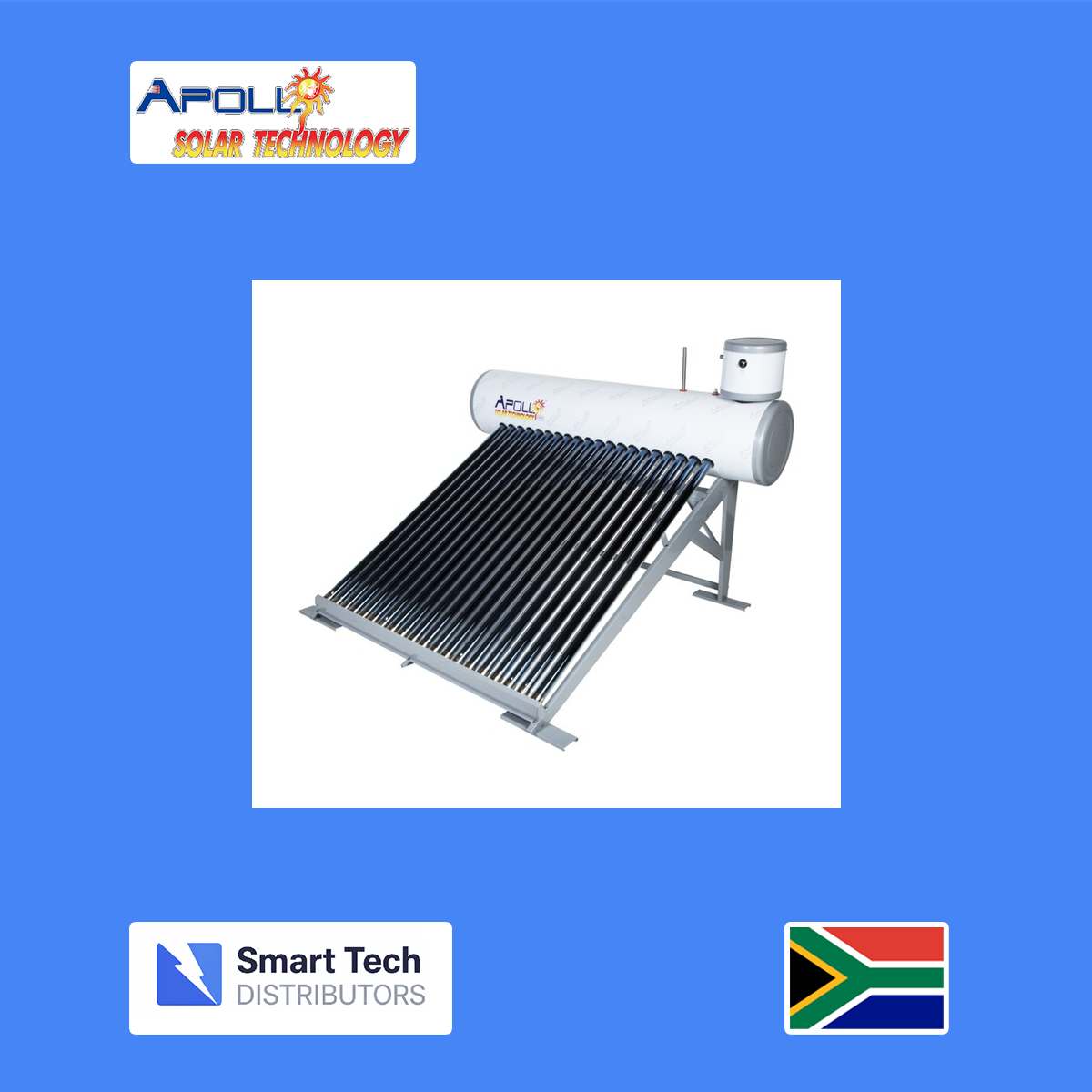

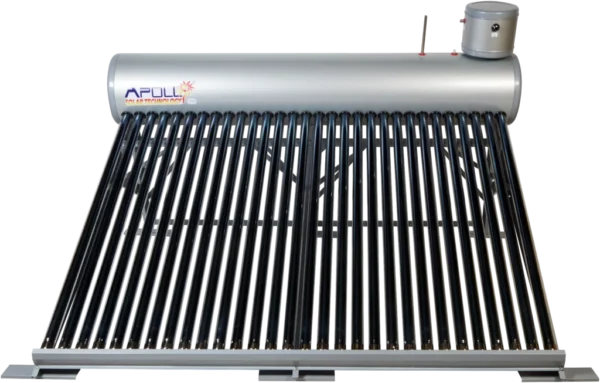

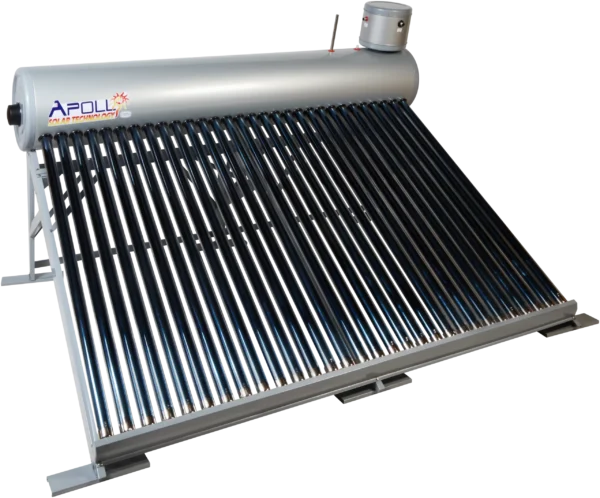

The Apollo ASLP-30 300L Integrated Low Pressure Solar Geyser is a high-capacity solar water heating solution designed for households with higher hot water demand. It integrates the storage tank and evacuated tube solar collector into a single roof-mounted system, reducing installation complexity while improving energy efficiency.

The system operates using thermosiphon circulation, where heated water naturally rises from the evacuated tube collector into the storage tank without the need for pumps. This ensures reliable, silent, and low-maintenance operation. The evacuated tube technology allows effective heat absorption even in low sunlight conditions, making it suitable for year-round performance.

With a large 300L insulated storage tank, the system is ideal for families or properties with multiple bathrooms or higher daily hot water usage. Its corrosion-resistant construction and thick insulation help maintain water temperature for extended periods, reducing reliance on electrical backup heating.

---

Technical Specifications

General

• Product Type: Integrated solar geyser
• Model: ASLP-30
• Capacity: 300 Litres
• System Type: Low pressure thermosiphon solar water heating system
• Application: Residential and light commercial hot water supply
• Installation Type: Roof mounted integrated system
• Certification: SABS approved (commonly supplied in SA market)

---

Performance

• Heating Technology: Evacuated vacuum tube solar collector
• Circulation Method: Thermosiphon natural circulation (no pump required)
• Energy Source: Solar radiation
• Backup Heating: Optional electrical element compatible (typically 3 kW)
• Efficiency: High solar absorption with reduced heat loss
• Maintenance: Low maintenance due to no moving parts

---

Tank and Construction

• Inner Tank Material: Stainless steel
• Outer Tank Material: Corrosion resistant coated steel
• Insulation: High density polyurethane foam insulation
• Insulation Thickness: Approximately 50 mm
• Evacuated Tubes: High efficiency borosilicate glass vacuum tubes
• Tube Diameter: Approximately 58 mm
• Frame Material: Galvanised steel with protective coating

---

Pressure and Operating Conditions

• System Type: Low pressure system
• Working Pressure: Approximately 400 kPa
• Water Supply: Gravity fed or low pressure municipal supply
• Frost Resistance: Yes
• Hail Resistance: Yes

---

Electrical Backup

• Electrical Element: Optional 3 kW element compatible
• Thermostat: Optional depending on installation configuration
• Backup Function: Grid assisted heating when required

---

Mechanical Specifications

• Dimensions: Approximately 2000 mm x 2050 mm x 1200 mm (varies by installation configuration)
• Weight: Approximately 130 kg to 150 kg (dry system)

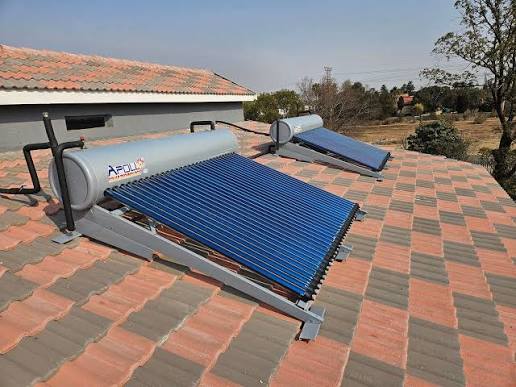

• Installation Position: Roof mounted (flat or pitched roof compatible)
• Design: Integrated tank and collector assembly

---

Features

• Large 300L storage capacity for high demand households
• Integrated all-in-one solar water heating system
• Efficient evacuated tube solar collection
• Thermosiphon natural circulation (no pump required)
• Corrosion resistant and weather durable construction
• High insulation for improved heat retention
• Suitable for low pressure domestic systems
• Energy saving and environmentally friendly operation
• Designed for consistent year-round hot water supply

---

Warranty

• Tank Warranty: Typically 5 years
• Evacuated Tubes Warranty: Typically 1 year
• Frame Warranty: Typically 1 year
• Electrical Components: Typically 1 year (if included)
