Product Description

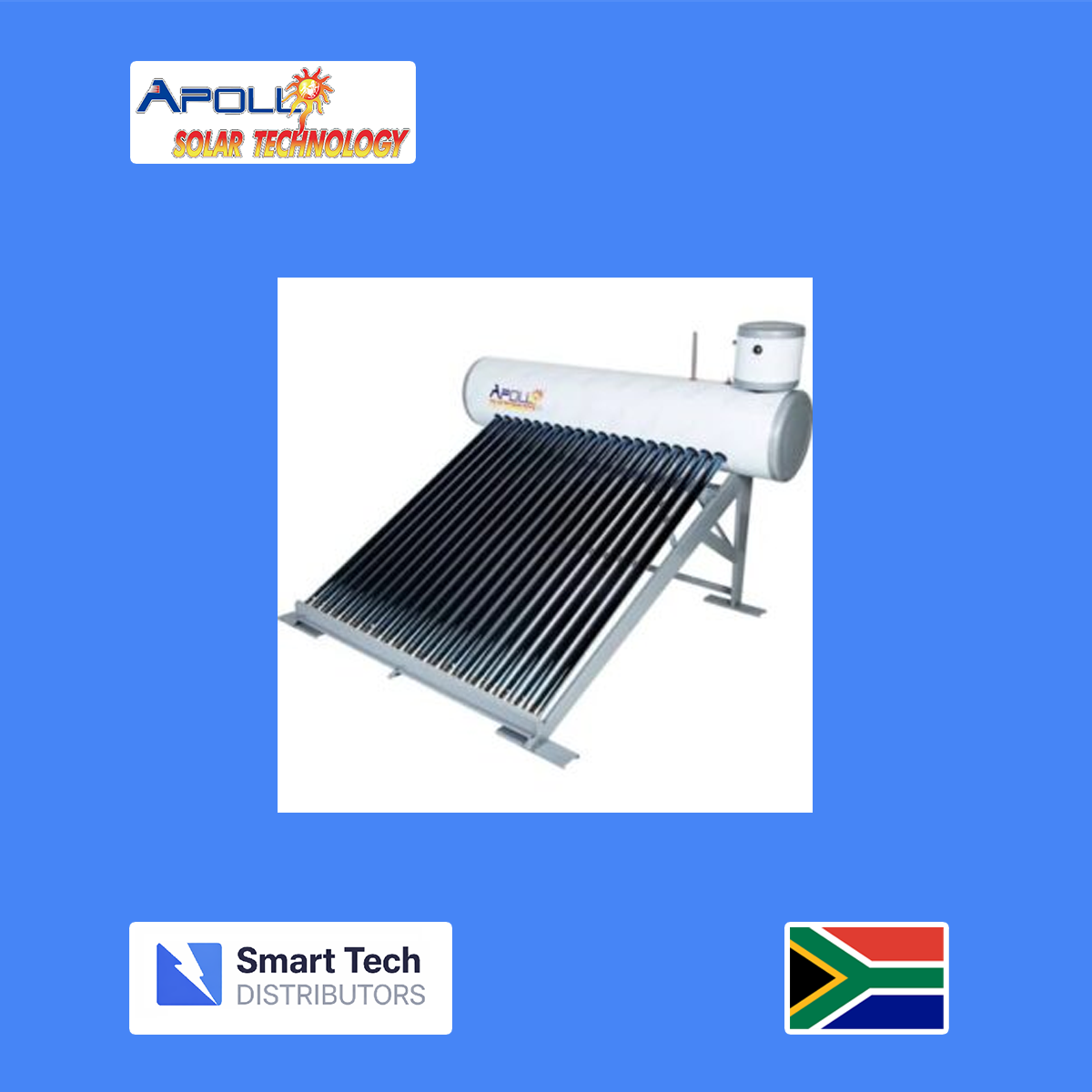

The Apollo ASLP-20 200L Integrated Low Pressure Solar Geyser is a complete solar water heating solution designed for larger households requiring increased hot water storage. It combines the storage tank and evacuated tube collector into a single integrated system, making installation simpler while ensuring efficient solar energy utilisation.

The system operates on the thermosiphon principle, allowing natural circulation of water between the collector and tank without the need for pumps or electrical circulation devices. This improves reliability and reduces maintenance requirements. The evacuated tube technology ensures high heat absorption even in colder or cloudy conditions, making it suitable for year-round use.

Built with corrosion-resistant materials and thick insulation, the system retains heat efficiently and provides consistent hot water supply throughout the day. It is ideal for low-pressure water systems commonly found in residential and rural installations, offering a cost-effective and energy-saving alternative to electric geysers.

---

Technical Specifications

General

• Product Type: Integrated solar geyser
• Model: ASLP-21
• Capacity: 200 Litres
• System Type: Low pressure direct solar water heating system
• Application: Residential and light commercial hot water supply
• Installation Type: Roof mounted integrated system
• Certification: SABS approved

---

Performance

• Heating Technology: Evacuated vacuum tube solar collector
• Circulation Method: Thermosiphon natural circulation
• Energy Source: Solar radiation
• Backup Heating: Optional electrical element compatibility
• Efficiency: High solar absorption with low heat loss
• Maintenance: Low maintenance system with no moving parts

---

Tank and Construction

• Inner Tank Material: Stainless steel
• Outer Tank Material: Corrosion resistant coated steel
• Insulation: High density polyurethane foam insulation
• Insulation Thickness: Approximately 50 mm to 55 mm
• Evacuated Tubes: High efficiency borosilicate glass vacuum tubes
• Tube Size: Approximately 58 mm diameter
• Frame Material: Galvanised steel with protective coating

---

Pressure and Operating Conditions

• System Type: Low pressure thermosiphon system
• Working Pressure: Approximately 400 kPa
• Water Supply: Gravity fed or low pressure municipal systems
• Frost Resistance: Yes
• Hail Resistance: Yes

---

Electrical Backup

• Electrical Element: Optional 3 kW element compatible
• Thermostat: Optional depending on installation configuration
• Backup Function: Grid assisted heating when required

---

Mechanical Specifications

• Dimensions: Approximately 1930 mm x 2040 mm x 1000 mm
• Weight: Approximately 100 kg (dry system)
• Installation Position: Flat or pitched roof compatible
• Design: Integrated tank and collector system

---

Features

• Integrated all-in-one solar water heating system
• High efficiency evacuated tube technology
• Thermosiphon natural circulation (no pump required)
• Large 200L storage capacity for bigger households
• Corrosion resistant and weather durable construction
• Energy saving and environmentally friendly operation
• Suitable for low pressure domestic systems
• Designed for consistent year-round hot water supply

---

Warranty

• Tank Warranty: Typically 5 years
• Evacuated Tubes Warranty: Typically 1 year
• Frame Warranty: Typically 1 year
• Electrical Components: Typically 1 year (if included)
