Product Description

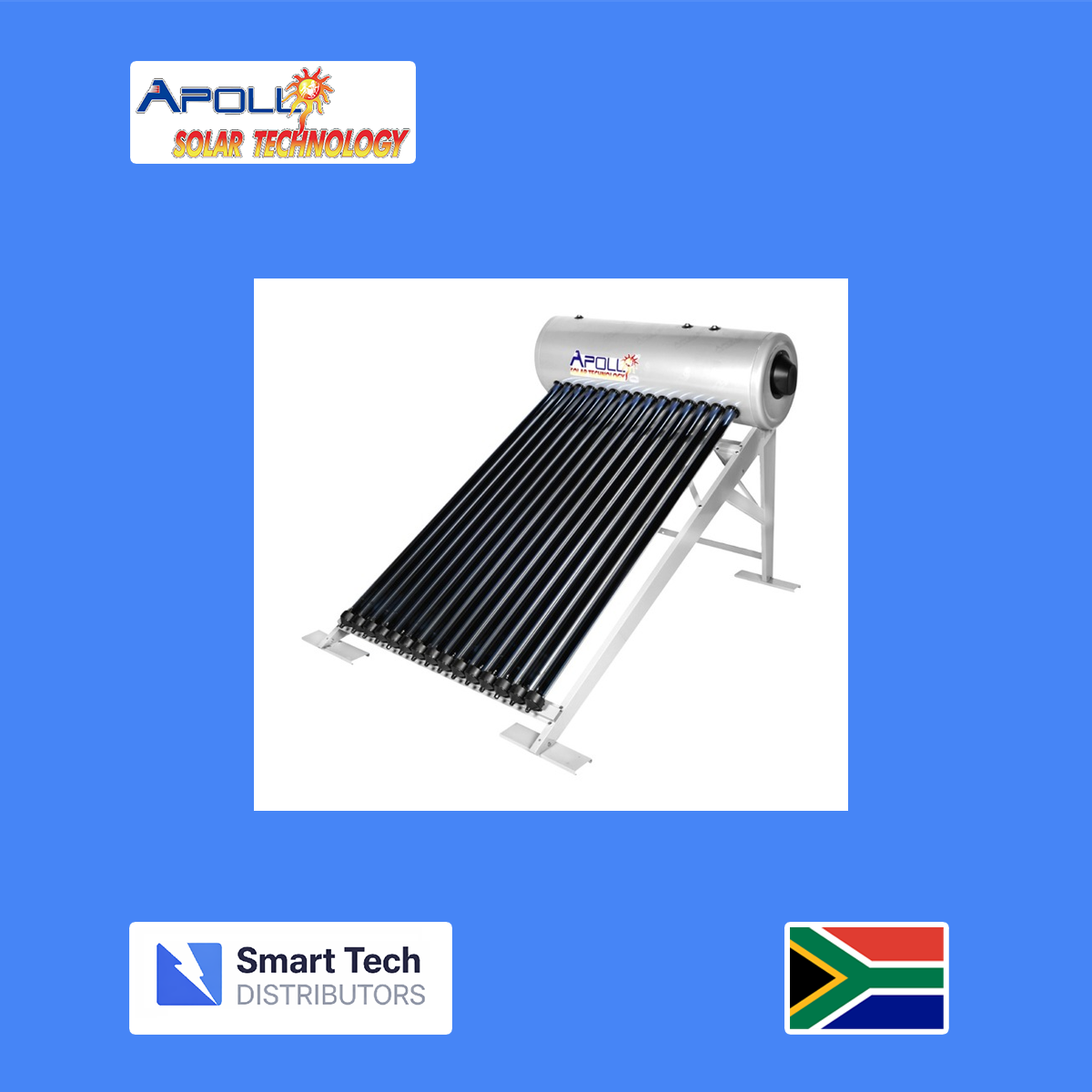

The Apollo APIHP-15 150L High Pressure Solar Geyser is an integrated solar water heating system designed for medium-sized households requiring reliable high-pressure hot water. The system combines the storage tank and evacuated tube collector into a single roof-mounted unit, simplifying installation while delivering efficient solar heating performance.

It operates using evacuated tube technology, which absorbs solar radiation and transfers heat efficiently into the water stored in the insulated tank. The system uses natural thermosiphon circulation, allowing hot water to rise into the tank without the need for pumps, ensuring silent and low-maintenance operation.

Designed for high-pressure domestic water systems, the unit is suitable for direct connection to standard household plumbing. It includes compatibility for electrical backup heating, ensuring hot water availability during low solar conditions. The system is built with durable materials to withstand harsh weather conditions and long-term outdoor exposure.

---

Technical Specifications

General

• Product Type: Integrated solar geyser
• Model: APIHP-15
• Capacity: 150 Litres
• System Type: High pressure thermosiphon solar water heating system
• Application: Residential hot water supply
• Installation Type: Roof mounted integrated system
• Certification: SABS approved

---

Performance

• Heating Technology: Evacuated vacuum tube solar collector
• Circulation Method: Thermosiphon natural circulation (no pump required)
• Energy Source: Solar radiation
• Backup Heating: Electrical element compatible (typically 2 kW to 3 kW)
• Efficiency: High solar absorption with reduced heat loss
• Maintenance: Low maintenance due to no moving parts

---

Tank and Construction

• Inner Tank Material: Stainless steel
• Outer Tank Material: Coloured or galvanised steel casing
• Insulation: High density polyurethane foam insulation
• Insulation Thickness: Approximately 50 mm
• Evacuated Tubes: High borosilicate glass vacuum tubes
• Tube Diameter: Approximately 58 mm
• Tube Quantity: Approximately 15 tubes (varies by kit configuration)
• Frame Material: Powder coated zinc or galvanised steel

---

Pressure and Operating Conditions

• System Type: High pressure solar geyser
• Working Pressure: Up to 400 kPa
• Water Supply Compatibility: Standard municipal pressurised systems
• Frost Resistance: Yes
• Hail Resistance: Yes

---

Electrical Backup

• Electrical Element: Optional 2 kW to 3 kW element (depending on kit)
• Thermostat: Optional depending on installation
• Backup Function: Grid assisted heating when solar input is insufficient

---

Mechanical Specifications

• Tank Dimensions: Approximately 1600 mm x 460 mm diameter (varies by configuration)
• System Length: Approximately 2200 mm (including frame and tubes)
• Weight: Approximately 90 kg to 95 kg total system weight
• Installation Position: Roof mounted (flat or pitched roof compatible)
• Design: Integrated tank and evacuated tube collector

---

Features

• Integrated all-in-one high pressure solar geyser system
• Efficient evacuated tube heat collection
• Thermosiphon natural circulation (no pump required)
• Suitable for standard pressurised household plumbing
• Corrosion resistant and weather durable construction
• Energy saving and environmentally friendly operation
• Suitable for medium-sized households
• Reliable year-round hot water supply

---

Warranty

• Tank Warranty: Typically 5 years
• Evacuated Tubes Warranty: Typically 1 year
• Frame Warranty: Typically 1 year
• Electrical Components: Typically 1 year (if included)
