Product Description

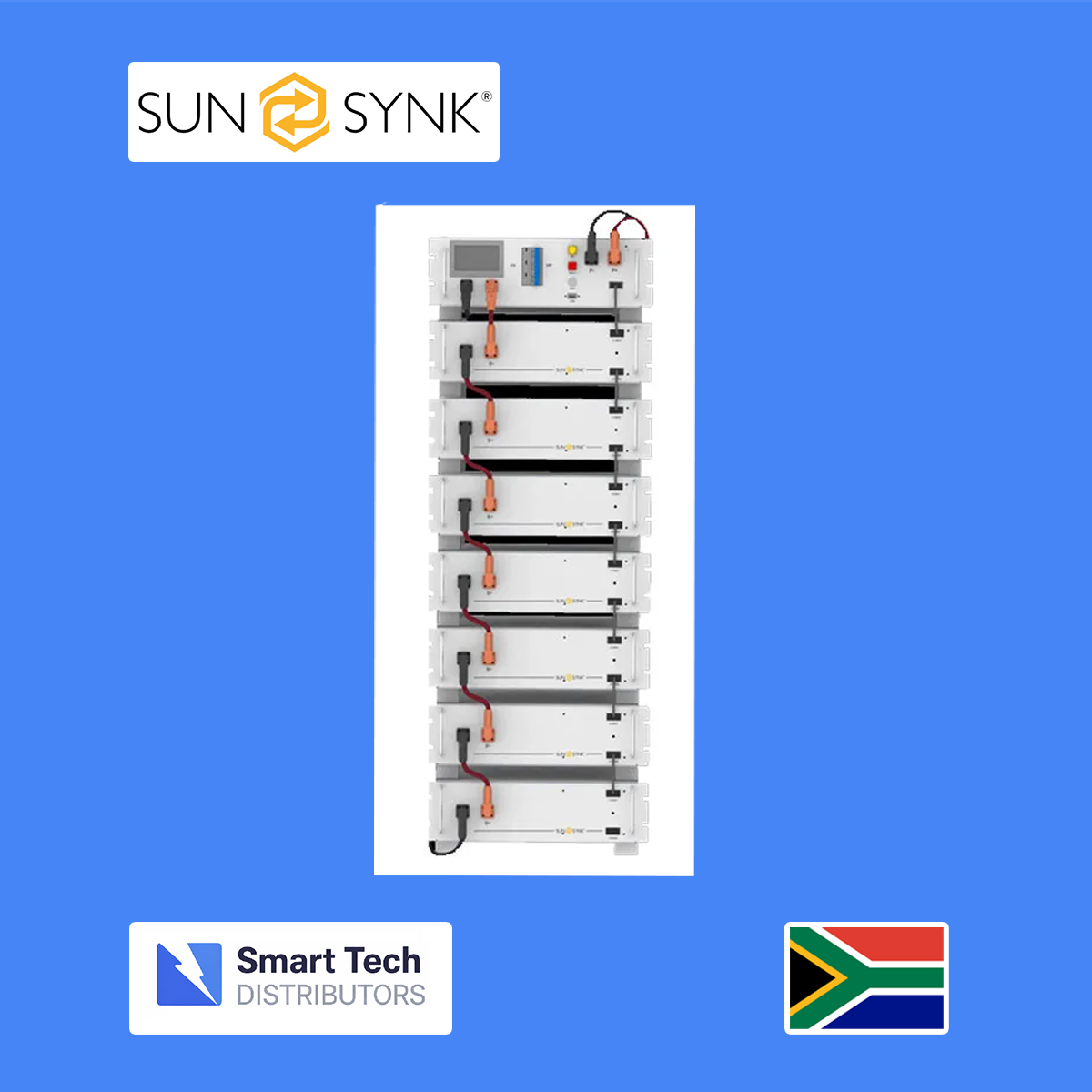

The Sunsynk 61.44kWh 1C New battery is a high-capacity, high-voltage energy storage solution built using lithium iron phosphate technology for enhanced safety, durability, and long service life. Designed for demanding solar and backup applications, this system is ideal for large homes, commercial buildings, and industrial installations requiring substantial energy storage.

The system consists of multiple modular battery units, typically 12 x 5.12kWh modules connected in series to achieve a total capacity of 61.44kWh. Its high-voltage architecture improves overall system efficiency by reducing current losses and enabling seamless integration with compatible high-voltage hybrid inverters.

Equipped with an advanced Battery Management System, the battery continuously monitors cell performance, temperature, and charge levels to ensure optimal operation and protection. The 1C rating allows for high charge and discharge performance, making it suitable for peak shaving, load shifting, and backup during outages. Its rack-mounted, scalable design also allows multiple systems to be connected in parallel for expanded capacity.

---

Technical Specifications

• Battery Type: Lithium Iron Phosphate LiFePO4

• Nominal Energy Capacity: 61.44 kWh

• Battery Configuration: 12 x 5.12 kWh modules

• System Type: High voltage battery system

• Nominal Voltage: Approximately 614 V to 624 V

• Operating Voltage Range: Approximately 528 V to 700 V

Performance

• Charge and Discharge Rate: 1C

• Continuous Power Output: Up to 61.44 kW

• Maximum Charge Current: Approximately 100 A

• Peak Discharge Current: Approximately 125 A

• Usable Energy: Approximately 55 kWh at 90 percent DoD

• Depth of Discharge: Up to 90 percent

• Round Trip Efficiency: Up to approximately 98 percent

• Cycle Life: Greater than or equal to 6000 cycles

Electrical and Communication

• Communication Protocols: CAN 2.0 RS485 Modbus

• Battery Management System: Integrated smart BMS with full protections

Mechanical Specifications

• Installation Type: Rack mounted high voltage system

• Dimensions: Approximately 589 x 590 x 2240 mm

• Weight: Approximately 620 kg to 660 kg

• Protection Rating: IP20 indoor installation

Environmental Conditions

• Operating Temperature Charge: 0°C to 55°C

• Operating Temperature Discharge: -20°C to 55°C

• Humidity Range: 5 percent to 85 percent

Features

• High voltage design for improved efficiency

• Modular and scalable system architecture

• Suitable for large scale solar and backup systems

• Peak shaving and load shifting capability

• Seamless integration with Sunsynk inverters

• Advanced safety with overcharge over discharge and thermal protection

• Parallel expansion support up to large capacity systems

Warranty

• Warranty: Typically 10 years
