Product Description

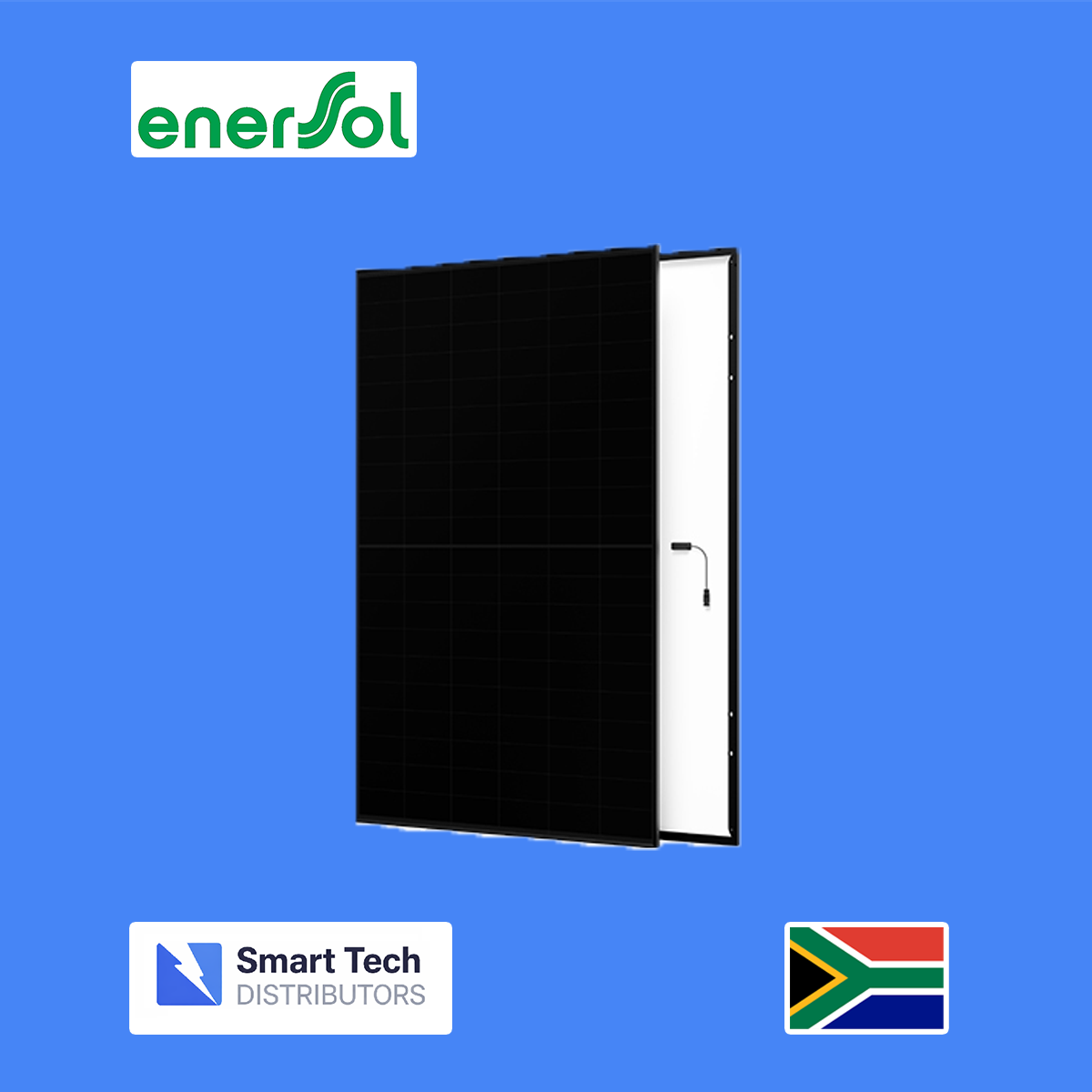

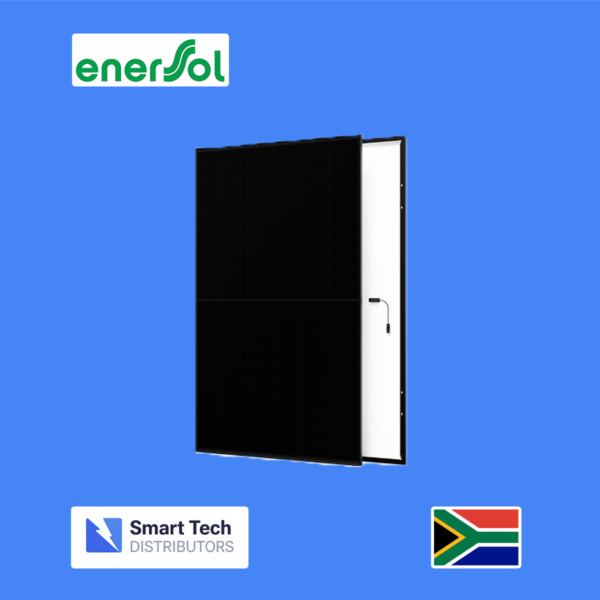

The Enersol 580W Black Frame 30mm solar panel is built using advanced mono-crystalline PERC half-cell technology to deliver high power output and improved efficiency in a compact form factor. Designed for modern solar installations, it features a sleek black aluminium frame with a 30mm profile, making it suitable for both rooftop and ground-mounted systems.

The panel is engineered for durability and long-term performance, incorporating tempered glass, an anodized aluminium frame, and an IP-rated junction box for protection against harsh environmental conditions. With excellent low-light performance, reduced power losses, and high conversion efficiency, this module is ideal for maximizing energy yield in residential, commercial, and industrial solar applications.

---

Technical Specifications

• Rated Power (Pmax): 580 W

• Cell Type: Monocrystalline PERC half-cell

• Module Efficiency: Approximately 21% to 22.5%

• Open Circuit Voltage (Voc): Approximately 49.5 V to 51.9 V

• Maximum Power Voltage (Vmp): Approximately 41.5 V to 44.5 V

• Short Circuit Current (Isc): Approximately 13.5 A to 14.3 A

• Maximum Power Current (Imp): Approximately 13.0 A to 13.5 A

• Maximum System Voltage: Up to 1500 V DC

• Number of Cells: Typically 144 half-cells

Mechanical Specifications

• Frame: Black anodized aluminium

• Frame Thickness: 30 mm

• Dimensions: Approximately 2278 to 2333 mm x 1134 mm x 30 mm

• Weight: Approximately 27 to 28 kg

• Front Glass: 3.2 mm tempered glass

• Junction Box: IP67 or IP68 rated with bypass diodes

• Connector Type: MC4 compatible

Performance and Features

• High efficiency mono PERC technology

• Improved low-light performance

• Reduced hotspot risk with half-cell design

• Positive power tolerance

• High mechanical load resistance (wind and snow)

• Anti-reflective coated glass for better absorption

Warranty

• Product Warranty: Typically 10 to 12 years

• Performance Warranty: Up to 25 years linear output
