Description

Product Description

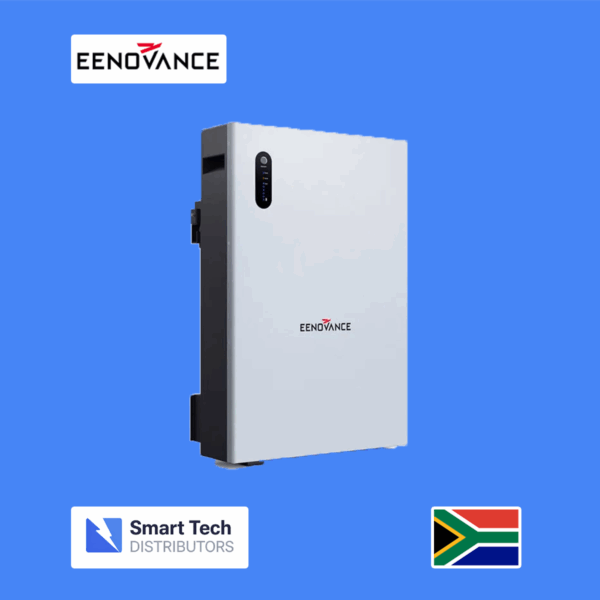

The Eenovance 10.65kWh LFP Wall Mount Battery delivers reliable, long-lasting power storage using advanced LiFePO₄ (lithium iron phosphate) cell technology for enhanced safety, thermal stability, and cycle life. Its 10.65 kWh usable capacity and 51.2 V nominal voltage make it suitable for daily cycling, solar self-consumption, backup power, and energy shifting. The integrated Battery Management System (BMS) protects against over-charge, over-discharge, over-current, short circuits, and temperature extremes. Communication interfaces including CAN, RS485, RS232, and Wi-Fi allow smart monitoring and control via compatible inverters or smartphone apps. The battery supports parallel expansion of up to 15 units, enabling future capacity growth. Designed for either wall or floor mounting, it fits neatly in homes, garages, or utility spaces and is built to operate reliably across a wide temperature range with an expected long service life backed by a 10-year warranty.

---

Technical Specifications (Bullet Form)

Battery Performance

• Cell technology: Lithium Iron Phosphate (LiFePO₄)

• Usable energy capacity: 10.65 kWh

• Nominal voltage: 51.2 V DC

• Operating voltage range: 44.8 – 56.16 V

• Maximum continuous charge/discharge current: 200 A

• Nominal charge/discharge current: 100 A (typical)

• Short-circuit current: ~540 A (approximate)

Communication & Monitoring

• Display: State of Charge (SOC) indicators, LED status

• Communication interfaces: CAN, RS485, RS232, Wi-Fi

Installation & Physical

• Installation type: Wall mounted or floor standing

• Dimensions (W × D × H): 550 × 160 × 836 mm

• Weight: ≈ 89 kg

• Enclosure rating: IP20 (indoor use)

Environmental & Operating Conditions

• Charge operating temperature: 0 °C to 50 °C

• Discharge temperature range: -15 °C to 50 °C

• Humidity tolerance: Up to ~95 % RH (non-condensing)

Lifecycle & Scalability

• Cycle life: ~6000 cycles or ~10 years at 80 percent DoD

• Parallel expandability: Up to 15 batteries in parallel for larger energy systems

Application & Compatibility

• Suitable for on-grid, on-grid with backup, and off-grid energy systems

• Compatible with major hybrid and off-grid inverters via standard communication interfaces

Standards & Compliance

• Certified to UN38.3, IEC62619, IEC61000 (and similar safety/quality standards)
