Description

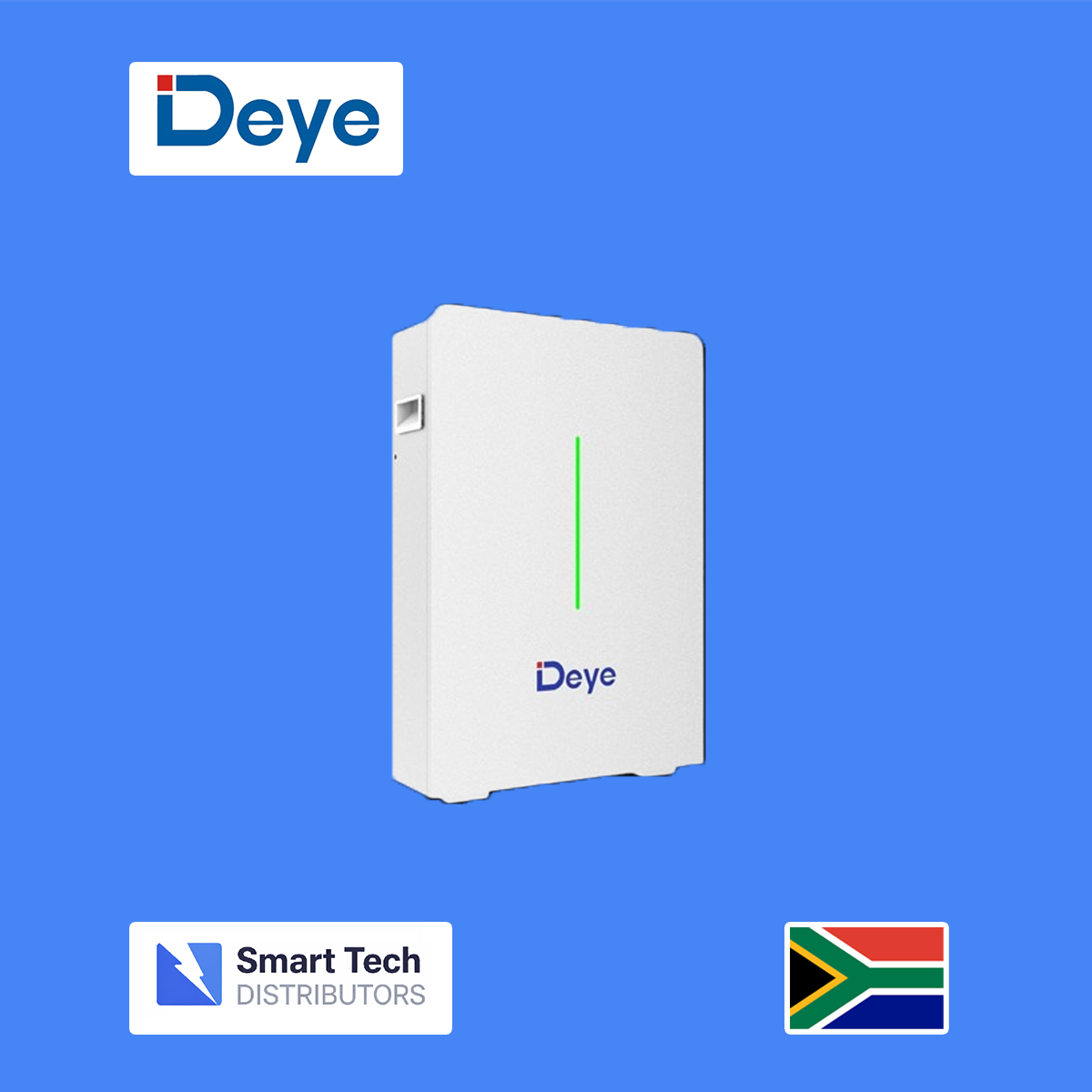

Deye Low Voltage (LV) 10.64kWh 51.2V Lithium-Ion Battery LiFePO₄ (RW-F 10.6)

The Deye LV 10.64kWh 51.2V Lithium-Ion Battery (RW-F 10.6) is a high-capacity, low-voltage energy storage solution designed for residential and light commercial solar installations. Built with advanced lithium iron phosphate (LiFePO₄) cell technology, this battery delivers exceptional safety, long cycle life, and reliable performance, making it an ideal choice for South African homes facing frequent load-shedding or seeking greater energy independence.

With a substantial 10.64kWh usable capacity, the Deye RW-F 10.6 battery can power essential and high-demand household loads such as lighting, refrigeration, entertainment systems, internet equipment, security systems, and selected appliances for extended periods during grid outages. Its 51.2V low-voltage architecture ensures broad compatibility with popular hybrid and off-grid inverters, including Deye, Sunsynk, and other inverter brands that support low-voltage lithium batteries.

The battery is equipped with an intelligent integrated Battery Management System (BMS) that continuously monitors voltage, current, temperature, and state of charge at cell level. This advanced protection system safeguards against over-charging, over-discharging, short circuits, and thermal events, ensuring safe operation, consistent performance, and an extended service life. LiFePO₄ chemistry further enhances safety by offering excellent thermal stability and reduced fire risk compared to conventional lithium technologies.

Designed with scalability in mind, the Deye LV 10.64kWh battery supports parallel connection, allowing multiple units to be linked together to increase total storage capacity as energy requirements grow. This makes it an excellent long-term investment for homeowners and businesses planning future system expansions without replacing existing battery infrastructure.

The RW-F 10.6 features a compact, modern enclosure suitable for wall-mounted or floor-mounted installation, making it ideal for garages, utility rooms, and technical spaces where efficient use of space is important. Its high round-trip efficiency ensures that more stored solar energy is available for everyday use, helping reduce reliance on the grid and lower electricity costs over time.

Whether you are installing a new solar system or upgrading your current backup solution, the Deye Low Voltage 10.64kWh 51.2V LiFePO₄ Battery (RW-F 10.6) offers a safe, scalable, and future-ready energy storage solution tailored for South African conditions.

User Manual

Technical Specifications

• Brand: Deye

• Model: RW-F 10.6

• Battery Type: Lithium Iron Phosphate (LiFePO₄)

• Nominal Energy Capacity: 10.64kWh

• Nominal Voltage: 51.2V (Low Voltage)

• Usable Capacity: ±95% recommended

• Cycle Life: ≥6,000 cycles @ 80% DoD

• Battery Management System (BMS): Integrated intelligent BMS

• Communication Ports: CAN / RS485

• Scalability: Parallel connection supported (multiple units)

• Installation: Wall-mounted or floor-mounted

• Cooling Method: Natural convection

• Protection Features:

  • Over-charge protection

  • Over-discharge protection

  • Short-circuit protection

  • Over-temperature protection

• Compatible Inverters: Deye, Sunsynk, and most 48V / 51.2V low-voltage hybrid & off-grid inverters

• Application: Residential & light commercial solar systems

• Use Case: Load-shedding backup, hybrid systems, off-grid solar
