Product Description

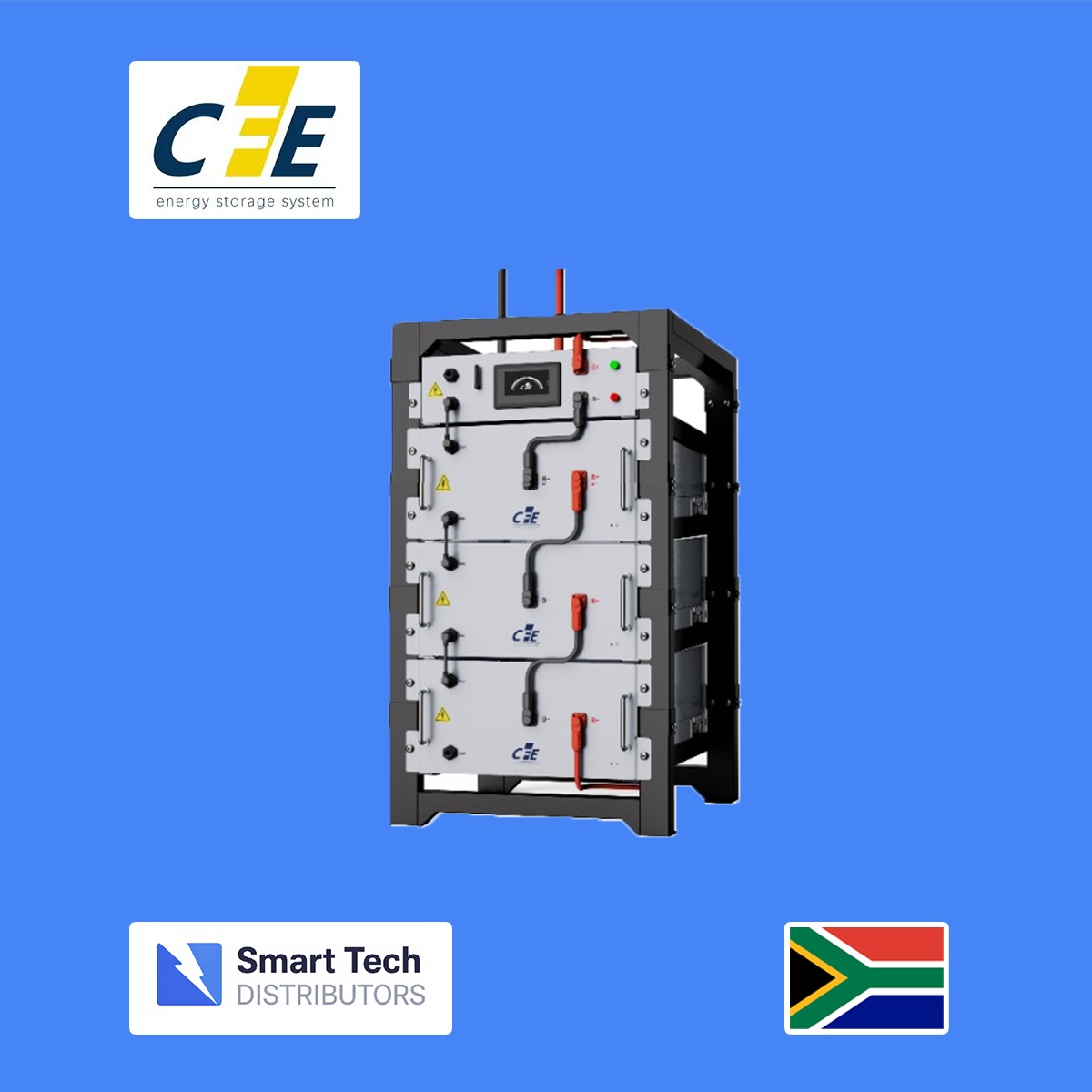

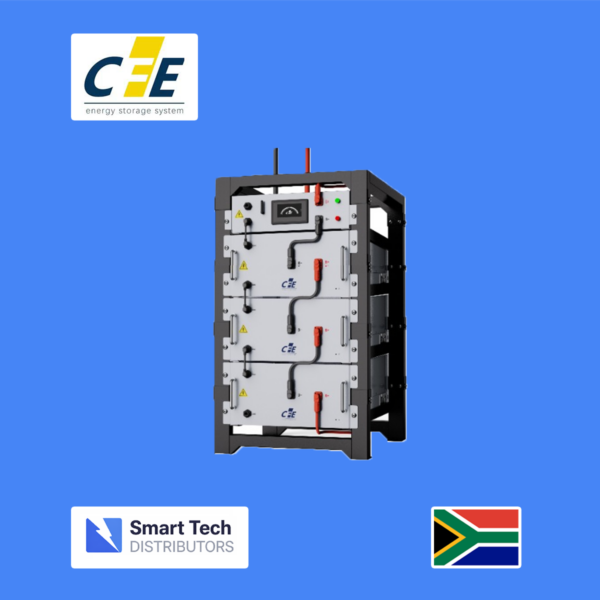

The CFE XH-30 High-Voltage ESS Battery delivers scalable, reliable energy storage for solar PV systems, hybrid inverters, and backup power applications. Built with LiFePO₄ battery chemistry, this module ensures high safety, thermal stability, and long service life. The unit features integrated Battery Management System (BMS) protection against over-charge, over-discharge, over-current, and temperature extremes. With high-voltage design (307.2 V nominal) and communication via CAN/RS485, the XH-30 integrates smoothly with a wide range of energy systems. It is rack-mountable, supports modular expansion, and is designed for consistent performance over thousands of cycles.

---

Technical Specifications

General & Electrical

• Battery type: LiFePO₄ (Lithium Iron Phosphate) energy storage cell.

• Model: XH-30 (High-Voltage ESS module).

• Nominal energy capacity: 30.72 kWh.

• Nominal voltage: 307.2 V DC.

• Operating voltage range: 259.2–345.6 V.

• Rated charge/discharge current: 100 A (1C).

• Max charge current: 100 A.

• Max discharge current: 100 A.

Battery Management & Communication

• Integrated Battery Management System (BMS) with over-charge, over-discharge, over-current, and temperature protection.

• Communication protocols: CAN / RS485 for inverter and EMS connectivity.

Performance & Life

• Cycle life: ≥8000 cycles @ 80 % DOD (conditions per manufacturer).

Environmental & Operational

• Operating temperature range: -15 °C to +45 °C for charging and discharging.

• Humidity tolerance: 0–95 % RH (no condensation).

• Installation method: Rack & cabinet mounting.

Physical

• Approximate rack size: 576 × 582 × 1034 mm (width × depth × height).

Safety & Certifications

• Built to safety standards (e.g., UN38.3, CE compliance typical for ESS products).

• Designed for commercial and industrial energy storage reliability.
