Product Description

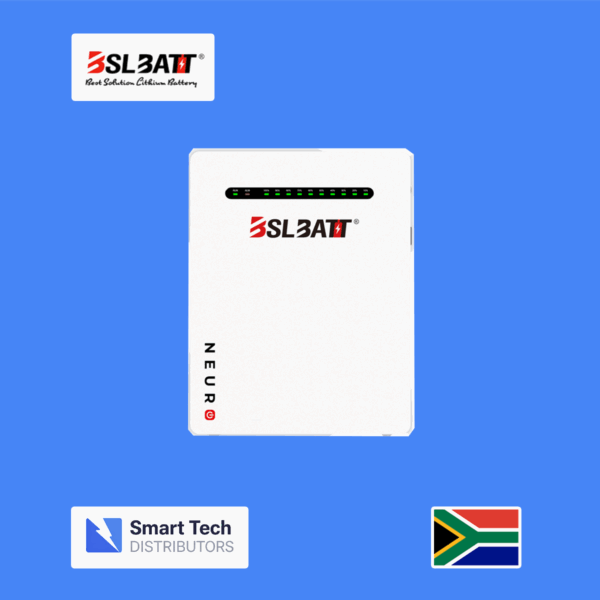

The BSLBatt Neuro 5 51.2V 100Ah battery is built to provide dependable, long-lasting energy storage for solar self-consumption, hybrid systems, and backup power during grid outages. Using LiFePO₄ (Lithium Iron Phosphate) cell chemistry and an integrated industrial-grade Battery Management System (BMS), the battery continuously monitors cell voltage, current, temperature, and state-of-charge to protect against over-charge, over-discharge, over-current, short circuit, and temperature extremes. The Neuro series is designed for ease of installation with a compact wall-mount or floor-standing form factor, and its modular architecture allows parallel connection of up to 15 units to scale total storage capacity. Communication interfaces such as RS232, RS485, and CAN enable integration with a wide range of compatible hybrid and solar inverters for real-time system monitoring and control. With a long cycle life, robust protections, and compatibility with modern solar equipment, the Neuro 5 battery is ideal for homes and small commercial buildings seeking reliable energy storage and backup power capability.

---

Technical Specifications (Bullet Form)

General

• Model: BSLBatt Neuro 5 (LiFePO₄ energy storage battery)

• Nominal voltage: 51.2 V DC

• Nominal capacity: 100 Ah

• Nominal energy: ≈ 5.12 kWh (51.2 V × 100 Ah)

• Usable energy: ~4.6–5.0 kWh at typical 90–95 % depth of discharge (DoD)

• Installation: Wall-mount or floor standing in battery cabinet, modular expandable

Battery Technology

• Cell chemistry: Lithium Iron Phosphate (LiFePO₄)

• Battery Management System (BMS): Integrated industrial BMS with cell balancing and protections

Electrical

• Maximum continuous discharge current: 100 A

• Peak discharge current: ~200 A (short burst)

• Maximum continuous charge current: 100 A

• Maximum charge voltage: ~58.4 V (typical for 51.2 V system)

• Recommended charge parameters (match inverter settings):

  • Bulk/absorption charge: ~57.6–58.4 V

  • Float charge: ~54.0–55.2 V

Protection & Safety

• Integrated BMS protections for:

  • Over-charge protection

  • Over-discharge protection

  • Over-current protection

  • Short-circuit protection

  • Over-temperature and under-temperature protection

  • Cell balancing to extend cycle life

Communication & Monitoring

• Standard protocols: RS232, RS485, CAN Bus

• Optional modules (varies by supplier): Wi-Fi or Bluetooth monitoring

• Compatible with many hybrid and solar inverters supporting high-voltage LiFePO₄ batteries

Performance

• Cycle life: > 4 000 cycles at ~80–90 % DoD

• Expected design life: > 10–15 years under typical residential use

• Self-discharge: ≤ 3 % per month (approximate)

Physical & Environmental

• Enclosure rating: IP20 (indoor use) (verify with supplier)

• Operating temperature (charge): 0 °C to 55 °C

• Operating temperature (discharge): -20 °C to 55 °C

• Storage temperature: -10 °C to 45 °C recommended

• Relative humidity tolerance: ≤ 95 % non-condensing

• Cooling method: Natural convection

Modularity & Expansion

• Parallel expansion: Up to 15 units for greater capacity

• System scalability: Suited for larger residential or small commercial setups by adding modules

Applications

• Residential solar energy storage and self-consumption

• Hybrid on-grid/backup systems

• Off-grid energy storage systems

• Backup power for critical household or light commercial loads

• Energy shifting and peak shaving in PV systems
