Product Description

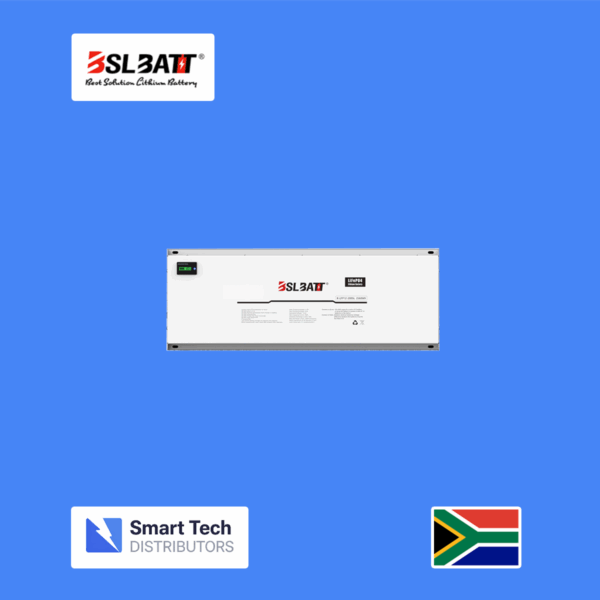

The BSL 12V 100Ah LiFePO₄ Flat-Pack Battery provides dependable, maintenance-free energy storage with superior efficiency and longevity compared to conventional lead-acid units. Using advanced LiFePO₄ (lithium iron phosphate) cell chemistry and an integrated Battery Management System (BMS), the battery delivers stable power output and protects against overcharge, over-discharge, over-current, short circuits, and temperature extremes. Its flat, space-saving design makes it easy to install in compact spaces such as battery boxes, RV compartments, boats, or solar cabinets, while its low weight improves handling and reduces installation costs. With a nominal voltage of 12.8 V and 100 Ah capacity (1.28 kWh), it powers a wide range of 12 V systems effectively. The robust design and long cycle life (up to several thousand cycles depending on depth of discharge) make it an ideal choice for daily cycling in renewable energy systems, vehicle power setups, and emergency backup.

---

Technical Specifications (Bullet Form)

General

• Battery type: Lithium Iron Phosphate (LiFePO₄) deep cycle flat-pack

• Model format: 12 V 100 Ah (12.8 V nominal)

• Rated energy: ≈ 1.28 kWh (12.8 V × 100 Ah)

• Typical applications: solar storage, RV/van power, marine use, off-grid systems, backup power

Electrical

• Nominal voltage: 12.8 V DC

• Rated capacity: 100 Ah

• Nominal energy: 1.28 kWh

• Maximum charge current: ~50–100 A (varies by listing)

• Maximum continuous discharge current: ~100 A

• Pulse/peak discharge: up to ~200–300 A for short durations

• Operating voltage range: ≈ 9.2 – 14.6 V

Battery Management & Protection

• Integrated Battery Management System (BMS) with protections: overcharge, over-discharge, over-current, short-circuit, temperature protection

• Safe, stable LiFePO₄ chemistry with low risk of thermal runaway

Performance

• Cycle life: 2,000–6,000+ cycles depending on depth of discharge and usage conditions

• Flat discharge curve for consistent voltage output throughout use

Physical

• Dimensions (approx): 490 × 260 × 220 mm (varies slightly by brand)

• Weight: ~15–16 kg (34.5 lbs)

• Form factor: Flat-pack, space-efficient design

Operating Conditions

• Discharge temperature: -20°C to 60°C

• Charge temperature: 0°C to 45°C

• Suitable for varied environments including RVs and off-grid cabins

Certifications

• Typical conformity: CE, ISO9001, UL1973, IEC62133 (varies by supplier)

---

Benefits

• Long service life with high cycle durability compared to lead-acid batteries

• Lightweight and compact flat-pack design for easy installation and space savings

• Maintenance-free operation with built-in BMS for enhanced safety

• Reliable performance in wide temperature ranges
