Description

Product Description

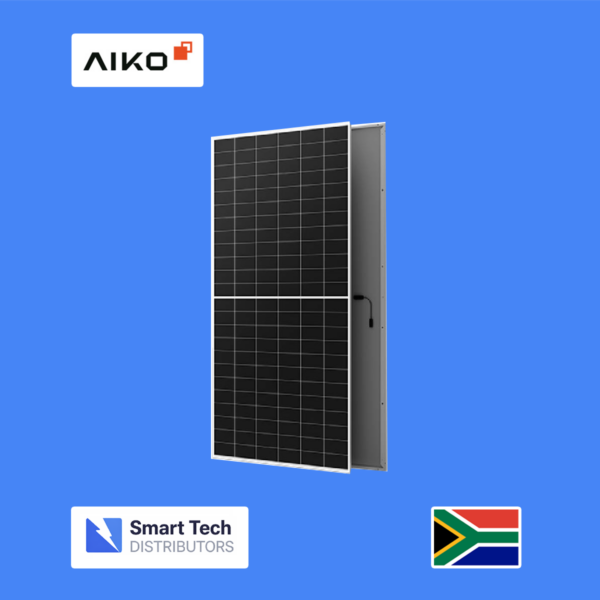

The Aiko 650W Mono Solar Panel is a next generation high power solar module engineered with N type All Back Contact cell technology. This design improves energy conversion efficiency, reduces electrical losses, and enhances overall module performance compared to conventional panels.

The panel features a mono facial half cell configuration which improves shading tolerance and reduces the risk of hot spots. Its robust construction includes tempered glass and an anodised aluminium frame, ensuring durability in harsh environmental conditions such as high wind, hail, and temperature fluctuations.

With its high power output and large format design, the Aiko 650W panel is ideal for installations where space efficiency and maximum energy yield are critical. It is suitable for residential rooftops, commercial installations, and large scale solar farms. The panel also offers low degradation rates and strong long term performance backed by extended warranties.

---

Technical Specifications

Electrical Specifications

• Rated maximum power Pmax 650W

• High efficiency N type cell technology

• Improved low light performance

• Reduced power degradation over time

Cell and Module Design

• Cell type N type ABC monocrystalline

• Cell configuration 144 half cells

• Mono facial module design

• Multi busbar technology for improved current flow

• Junction box IP68 rated with 3 bypass diodes

• Connector type MC4 or compatible

Mechanical Specifications

• Dimensions approximately 2382 mm x 1134 mm x 30 mm

• Weight approximately 28.1 kg

• Front glass 3.2 mm tempered glass

• Frame anodised aluminium alloy

• Cable specification 4 mm squared solar cable with standard connectors

Performance and Efficiency

• Temperature coefficient of power approximately minus 0.26 percent per degree C

• Low first year degradation approximately 1 percent

• Annual degradation approximately 0.35 percent

• High energy yield due to advanced cell architecture

System Compatibility

• Maximum system voltage up to 1500V DC

• Suitable for grid tied and hybrid inverter systems

• Compatible with residential, commercial, and utility scale installations

Durability and Certification

• High resistance to micro cracks and environmental stress

• Tested for harsh weather conditions including hail impact

• Certified to IEC 61215 and IEC 61730 standards

Warranty

• Product warranty typically 15 years

• Performance warranty up to 30 years with linear degradation
